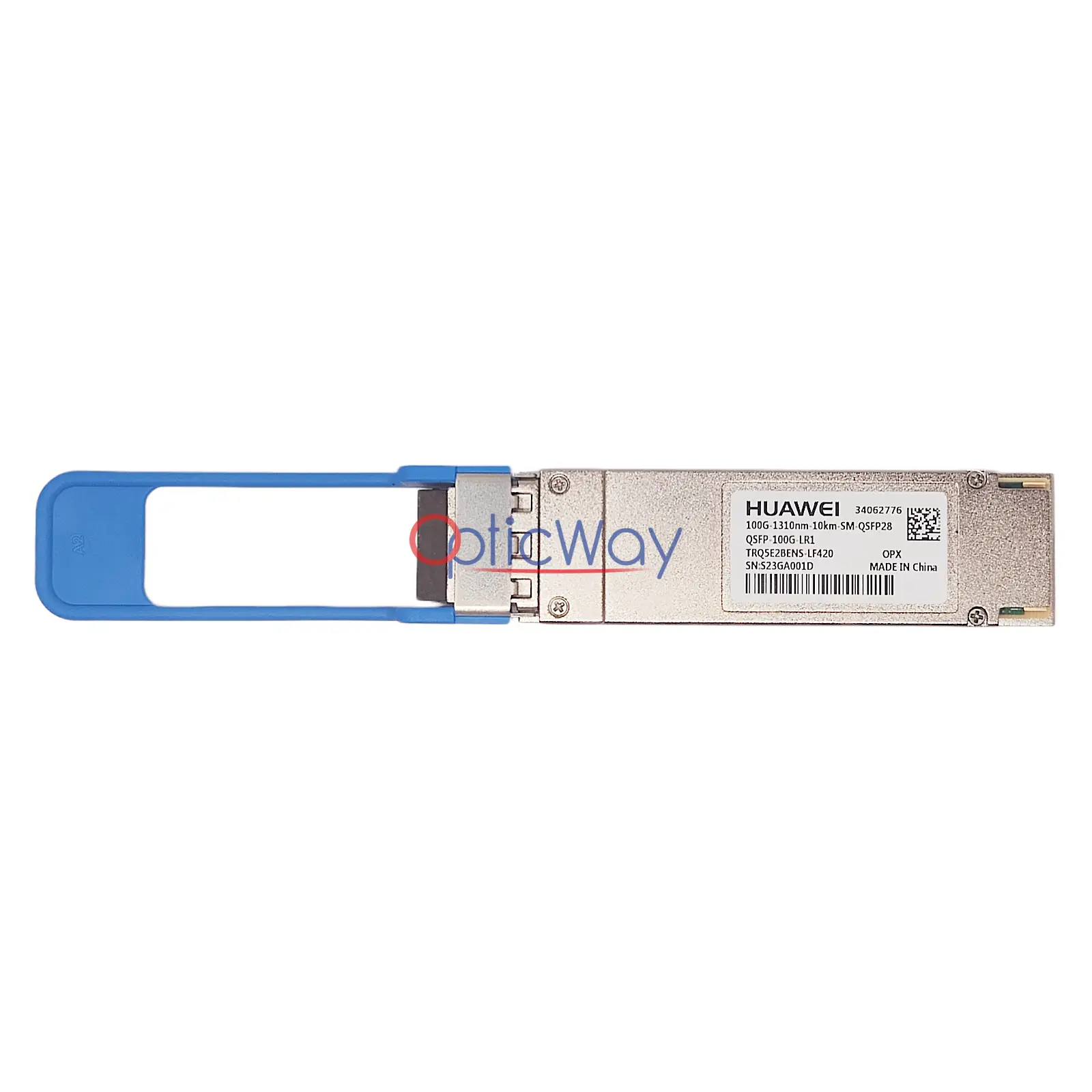

Genuine Huawei 34062776 TRQ5E2BENS-LF420 QSFP-100G-LR 100G QSFP28 LR1 Full Front Label View

Genuine Huawei 100G QSFP28 LR1 Single-Mode Optical Transceiver 1310nm 10km 34062776 QSFP-100G-LR1 TRQ5E2BENS-LF420

$480.00
Huawei

Product Features

Condition : Brand new original sealed module, in stock.
100G LR1 Single-Lambda : Utilizes single-wavelength PAM4 tech, offering a simpler, more reliable alternative to 4-channel LR4 optics.
10km SMF Reach : Precision 1310nm laser engine ensures stable transmission up to 10km over G.652 single-mode fiber.
QSFP28 Hot-Swappabl : Native compatibility with Huawei CloudEngine switches and high-end core routers.
Duplex LC Interface : Standard LC connector guarantees minimal insertion loss and stable optical alignment.
Real-Time DDM : Embedded telemetry monitors temperature, voltage, bias, and Rx/Tx power for proactive O&M.
Email Now Chat Us With Whatsapp Chat Us With Teams
Specifications

Genuine Huawei 100G QSFP28 LR1 Single-Mode Optical Transceiver 1310nm 10km 34062776 QSFP-100G-LR1 TRQ5E2BENS-LF420

Genuine Huawei 100Gbps QSFP28 Enhanced Optical Transceiver (P/N: 34062776, Material Code: TRQ5S28ENS). Featuring a compact QSFP28 form factor, this module supports high-speed data rates up to 100Gbps,  this advanced transceiver operates at a single-channel nominal wavelength of 1310nm. Utilizing cutting-edge 100G PAM4 technology over a single pair of Single-Mode Fiber (SMF), it provides reliable high-bandwidth connections up.

Part Number
34062776
Band
  Huawei
Model / Product Code
QSFP-100G-LR1
Form Factor
  QSFP28
Wavelength
1310nm
Data Rate
100 Gbps (Single-Lambda PAM4)
Connector
Duplex LC
Fiber Type
  SMF
Max Cable Distance
  10km
DOM (Digital Monitoring)
Supported
Tx Power
-1.9 ~ +4.8 dBm
Rx Power
  -6.1 ～ +4.8 dBm
Origin
  China
Operating Temperature
0°C to 70°C

Typical Applications

Product Highlights

  • ✨100% Huawei Native Firmware Sync: Carrier-grade factory hardware profiles guarantee zero configuration delays and instantly negotiate clean link connections. Completely eliminates port errors, packet drops, or layer-2 flapping caused by third-party generic alternatives on high-load 100G backbones.
  • ✨Lower Component Count, Superior MTBF: While legacy 100G LR4 optics require 4 complex separate laser channels inside, the LR1 standard accomplishes 100G over just one single laser core. Over 70% fewer internal components result in lower heat dissipation, reduced power draw, and a significantly longer lifespan (MTBF).
  • ✨Future-Proof Network Migration: Perfectly suited to interact with breakout ports on advanced 400G hardware lines. This provides exceptional capital protection for enterprises gradually upgrading their network topologies to higher data capacities over time.
