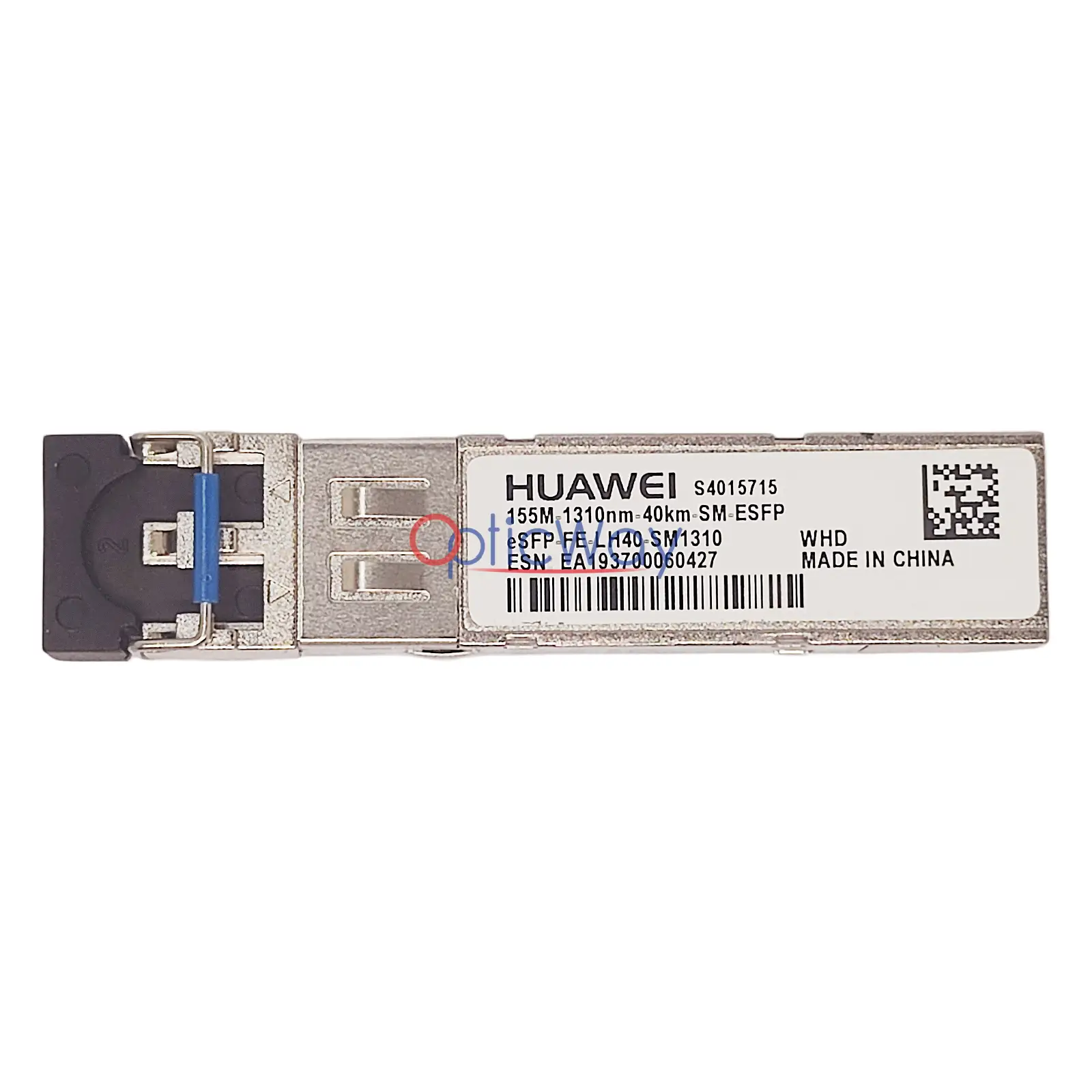

Genuine Huawei S4015715 eSFP-FE-LH40-SM1310 155M Fast Ethernet eSFP Full Front Label View

Genuine Huawei 155M Fast Ethernet eSFP Single-Mode Transceiver 1310nm 40km S4015715 eSFP-FE-LH40-SM1310

$38.00
Huawei

Product Features

Condition : Brand new original sealed module, in stock.
155M Fast Ethernet : Fully compliant with 100BASE-LH40 standards for standard 155Mbps data paths.
40km Long-Haul : High-stability 1310nm transmitter enables robust, unamplified links up to 40km over G.652 SMF.
Enhanced eSFP Design : Standard form factor with superior EMI shielding and hot-swappable support.
Precision LC Interface : Duplex LC connector ensures low insertion loss and accurate core alignment.
Live DDM Telemetry : Real-time monitoring of temperature, voltage, bias, and Tx/Rx power for proactive O&M.
Email Now Chat Us With Whatsapp Chat Us With Teams
Specifications

Genuine Huawei 155M Fast Ethernet eSFP Single-Mode Transceiver 1310nm 40km S4015715 eSFP-FE-LH40-SM1310

This is an original Huawei 155M Fast Ethernet long-reach eSFP single-mode optical transceiver module (Huawei Part Number / BOM: S4015715, Model: eSFP-FE-LH40-SM1310). Housed in a hot-pluggable eSFP (Enhanced SFP) form factor with digital diagnostics, this legacy transceiver operates at a nominal wavelength of 1310nm. It is purpose-built to deliver continuous Fast Ethernet signaling over Single-Mode Fiber (SMF) infrastructure for mid-to-long range spans up to 40 kilometers (40km) without intermediate regeneration points.

Part Number
S4015715
Band
  Huawei
Model / Product Code
 eSFP-FE-LH40-SM1310
Form Factor
  SFP
Wavelength
1310nm
Data Rate
155M
Connector
Duplex LC
Fiber Type
 SMF
Max Transmission Distance
40km
Laser Class
Class 1 Laser
Tx Power
-8.0 to -0 dBm
Receiver Sensitivity
 ≤ -34.0 dBm
Origin
  China
Operating Temperature
0°C to +70°

Typical Applications

✅Enterprise WAN Interconnection

 Ideal for low-speed data backhaul across campuses or buildings.

✅Metro Access Networks

 Serves as a last-mile access module connecting remote base stations or small offices.

✅SONET/SDH Transport Networks

 Fully compatible with legacy TDM equipment, supporting OC-3/STM-1 rates.

✅Industrial Control & Security: Suited for surveillance and PLC communications where high bandwidth is not required but long distance is critical.

Product Highlights

✨100% Huawei Native Firmware Engineering

 Factory-certified assembly guarantees native configuration discovery. Unlike generic aftermarket modules prone to optical clock drift, this authentic hardware secures seamless synchronization across critical 40km industrial spans.

✨Cost-Effective Legacy System Upkeep

 Tailored for utilities and ISPs needing to sustain existing Fast Ethernet architectures without committing to expensive, full-scale Gigabit hardware retrofits.

✨Precision Telemetry Diagnostics

  Integrated DDM lets field engineers identify fiber degradation patterns over long distances directly from the central dashboard, reducing field labor costs and optimizing network uptime (SLA).
