Product Features

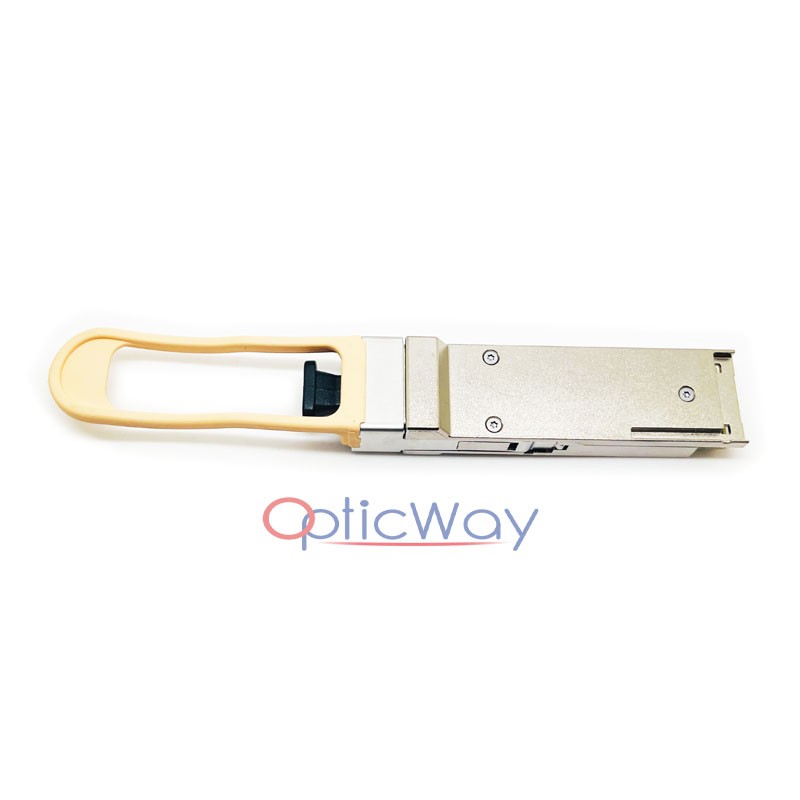

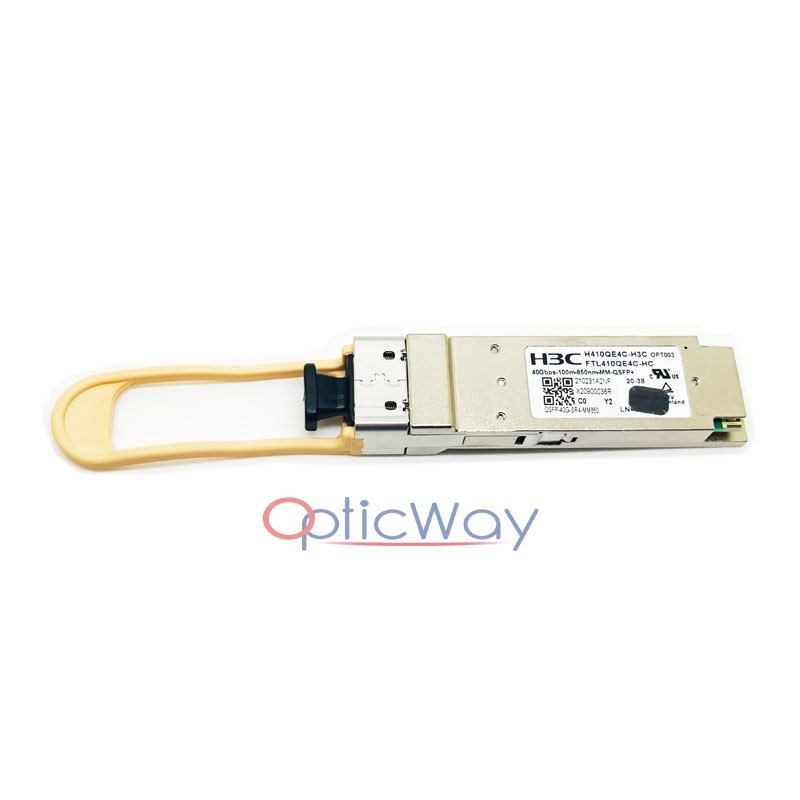

H3C H410QE4C-H3C FTL410QE4C-HC 40Gbps 100m 850nm MM QSFP+ Optical Transceiver
Form Factor:QSFP+
Data Rate:40G
Wavelength:850nm
Reach:100m
Cable Type: MMF Transceiver Type:SR4 Connector:MPO Temperature Range:0°C To 70°C Product Description:H3C H410QE4C-H3C FTL410QE4C-HC 40Gbps 100m 850nm MM QSFP+ Optical Transceiver QSFP+ transceiver provides 40GBase-SR4 throughput up to 150m over multi-mode fiber (MMF) using a wavelength of 850nm via an MPO connector. Our transceiver is built to meet or exceed OEM specifications and is guaranteed to be 100% compatible with Finisar®. It has been programmed, uniquely serialized, and tested for data-traffic and application to ensure that it will initialize and perform identically. All of our transceivers comply with Multi-Source Agreement (MSA) standards to provide seamless network integration. Additional product featuresinclude Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty. Features: Four-channel full-duplex transceiver module Hot-pluggable QSFP+ form factor Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF Multirate capability: 1.06Gb/s to 10.5Gb/s per channel Unretimed XLPPI electrical interface Maximum power dissipation < 1W Reliable VCSEL array technology Built-in digital diagnostic functions, including optical power monitoring Commercial temperature range 0°C to 70°C Single 1×12 MPO receptacle RoHS compliant Applications: Breakout to 4 x 10GBASE-SR Ethernet Proprietary interconnections Specifications Distance: 150 m Data Rate (max): 41.2 Gb/s Protocol: 10x Fibre Channel Compatible 40G Ethernet Compliant IB QDR Compatible Low End Case Temperature (°C): 0 High End Case Temperature (°C): 70 Diagnostics: N/A Transmitter: 4x VCSEL Receiver: PIN Voltage Supply: 3.3 Connector: MPO Wavelength: 850nm Band
Cable Type: MMF
Transceiver Type:SR4
Connector:MPO
Temperature Range:0°C To 70°C
Product Description:H3C H410QE4C-H3C FTL410QE4C-HC 40Gbps 100m 850nm MM QSFP+ Optical Transceiver QSFP+ transceiver provides 40GBase-SR4 throughput up to 150m over multi-mode fiber (MMF) using a wavelength of 850nm via an MPO connector. Our transceiver is built to meet or exceed OEM specifications and is guaranteed to be 100% compatible with Finisar®. It has been programmed, uniquely serialized, and tested for data-traffic and application to ensure that it will initialize and perform identically. All of our transceivers comply with Multi-Source Agreement (MSA) standards to provide seamless network integration. Additional product featuresinclude Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty. Features: Four-channel full-duplex transceiver module Hot-pluggable QSFP+ form factor Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF Multirate capability: 1.06Gb/s to 10.5Gb/s per channel Unretimed XLPPI electrical interface Maximum power dissipation < 1W Reliable VCSEL array technology Built-in digital diagnostic functions, including optical power monitoring Commercial temperature range 0°C to 70°C Single 1×12 MPO receptacle RoHS compliant Applications: Breakout to 4 x 10GBASE-SR Ethernet Proprietary interconnections Specifications Distance: 150 m Data Rate (max): 41.2 Gb/s Protocol: 10x Fibre Channel Compatible 40G Ethernet Compliant IB QDR Compatible Low End Case Temperature (°C): 0 High End Case Temperature (°C): 70 Diagnostics: N/A Transmitter: 4x VCSEL Receiver: PIN Voltage Supply: 3.3 Connector: MPO Wavelength: 850nm Band
QSFP+ transceiver provides 40GBase-SR4 throughput up to 150m over multi-mode fiber (MMF) using a wavelength of 850nm via an MPO connector. Our transceiver is built to meet or exceed OEM specifications and is guaranteed to be 100% compatible with Finisar®. It has been programmed, uniquely serialized, and tested for data-traffic and application to ensure that it will initialize and perform identically. All of our transceivers comply with Multi-Source Agreement (MSA) standards to provide seamless network integration. Additional product featuresinclude Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
Features:
Applications:
