HPE E7Y10A 16Gb SFP+ SW Transceiver 850nm 100m MMF AFBR-57F5MZ-HP1

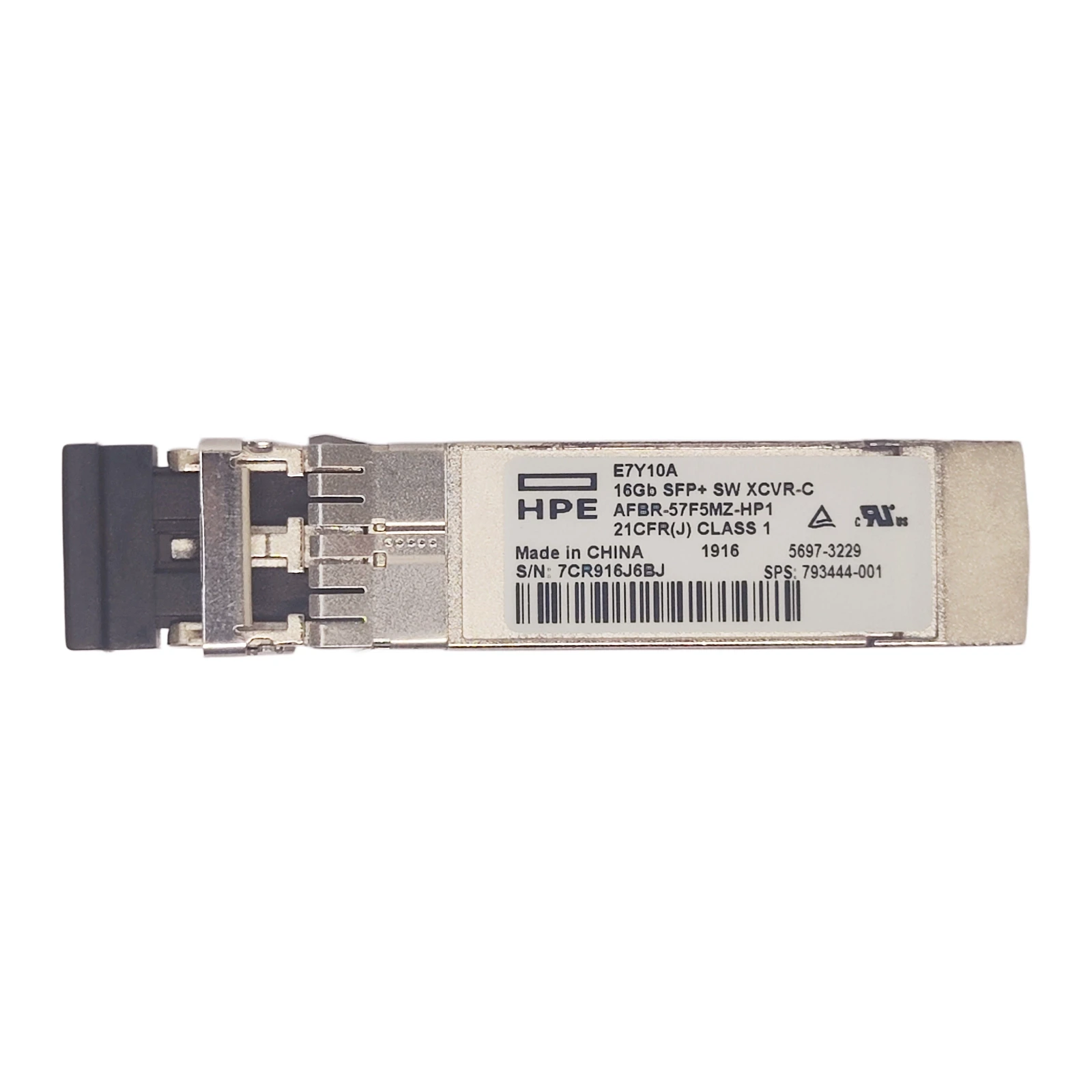

The HPE E7Y10A (SPS: 793444-001,AVAGO (AFBR-57F5MZ-HP1) is a factory-calibrated 16Gbps Fibre Channel (FC) SFP+ optical transceiver, designed for HPE enterprise storage and data center equipment. Operating at 850 nm, it supports 16Gbps Fibre Channel transmission up to 100 meters over multi-mode fiber (OM3/OM4). This module features a duplex LC connector, full DDM/DOM monitoring, and is compliant with SFP+ MSA and FC-PI-6 standards.
AVAGO Mumber
AFBR-57F5MZ-HP1
Transmission Distance
50km
Standards
FC-PI-6, SFP+ MSA, Class 1 Laser
Diagnostics
SupportFull DDM/DOM (SFF-8472)
Operating Temperature
0°C ~ 70°C
Typical Applications - HPE StoreFabric SAN Switch 16Gbps FC Interfaces
- HPE 3PAR/StoreVirtual Storage Array 16G FC Connectivity
- 16Gbps Fibre Channel SAN Backbone and Fabric Deployments
- High-Speed Server-to-Storage Connections in Enterprise Data Centers
- HPE Host Bus Adapter (HBA) 16G SFP+ Transceiver Upgrades
Product Highlights
1. 16G Fibre Channel Short-Reach Transmission - This is an HPE 16Gb Fibre Channel SFP+ short-wave (SW) transceiver, designed for storage area network (SAN) applications.
- It delivers 16Gbps line-rate transmission over multi-mode fiber (MMF) at 850nm wavelength, supporting a maximum reach of 100m (using OM3 fiber).

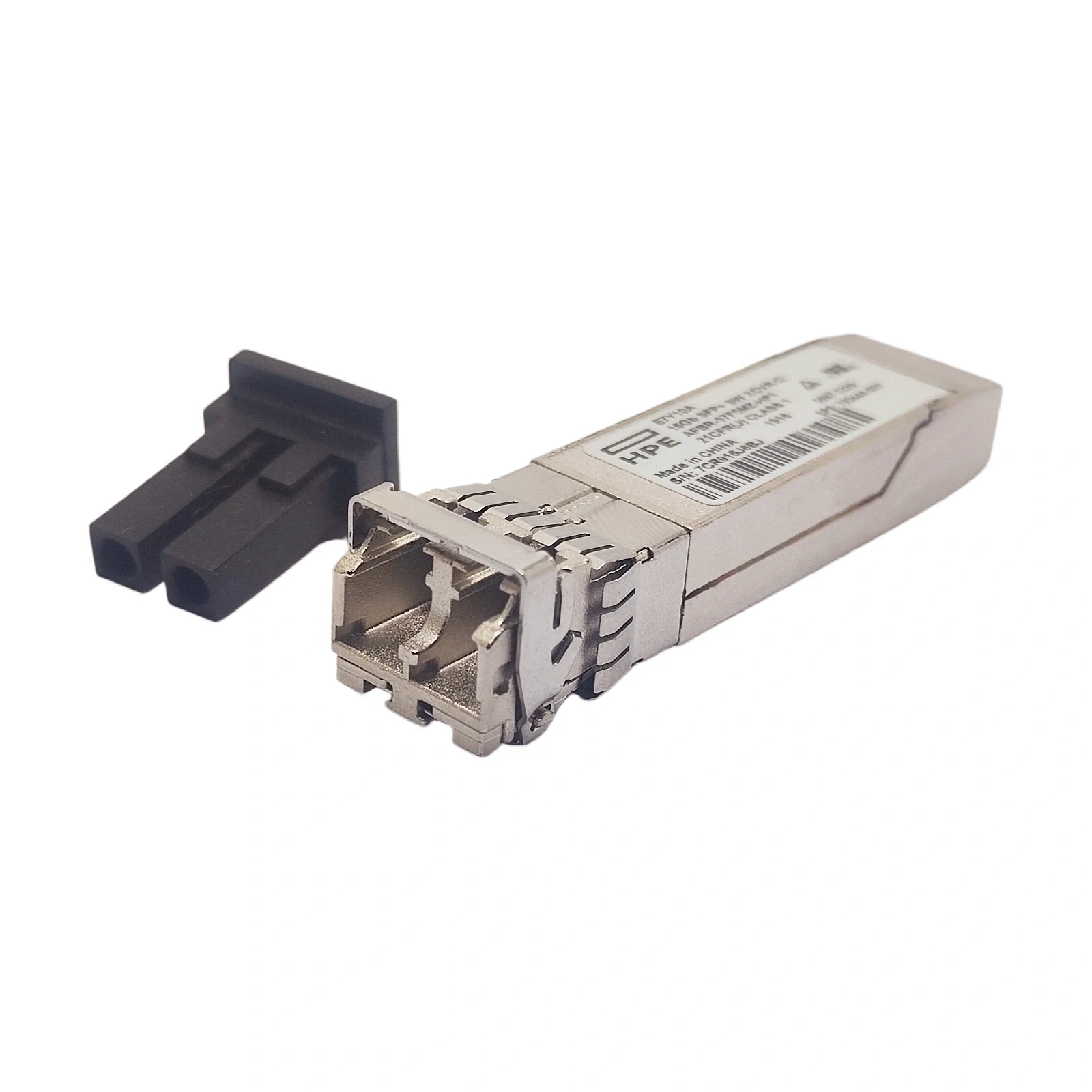

- The duplex LC interface is optimized for use in HPE SAN switches, directors, and storage arrays.
2. Standard SFP+ Form Factor & HPE Ecosystem Compatibility - It uses the industry-standard SFP+ (Enhanced Small Form-factor Pluggable) package, widely adopted in HPE storage and networking equipment.
- As an HPE-branded module, it is validated for use with HPE B-series (Brocade) SAN switches, including the 6505, 6510, and SN6000B series.
- The hot-pluggable design allows for easy installation, replacement, and capacity expansion without disrupting storage traffic.
3. Reliable Performance & Compliance Certification - Built-in Digital Optical Monitoring (DOM) allows real-time monitoring of key parameters including TX/RX optical power, module temperature, supply voltage, and laser bias current.
- Certified as a Class 1 Laser product under 21CFR(J) standards, meeting strict safety and performance requirements.
- Manufactured in China, it undergoes rigorous factory testing to ensure stable performance in the commercial temperature range.
