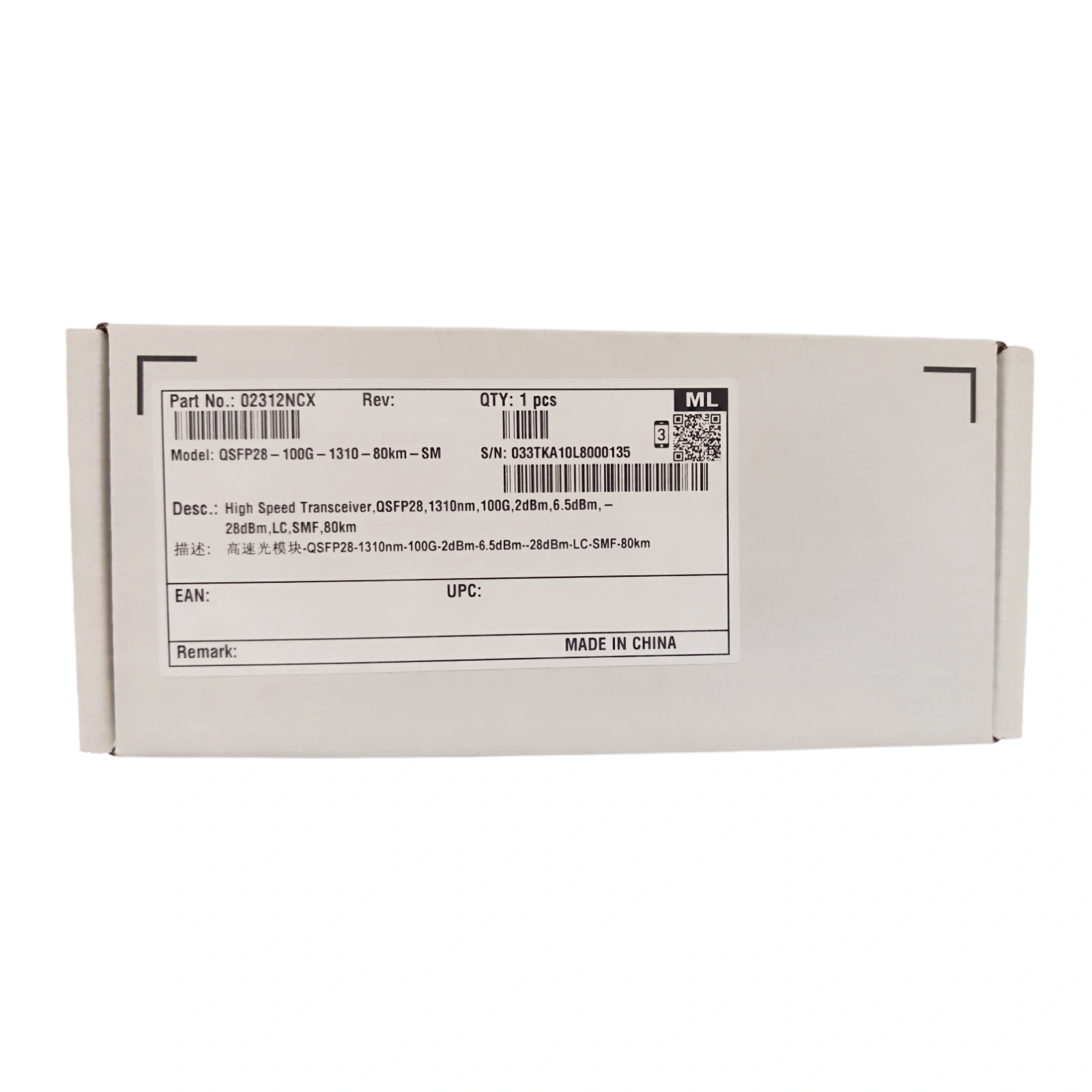

Huawei 02312NCX QSFP28-100G-1310-80km-SM 100G ZR LC SMF Transceiver Module Box Label

Huawei 02312NCX QSFP28-100G-1310-80km-SM 100G ZR LC SMF Transceiver Module Box Label

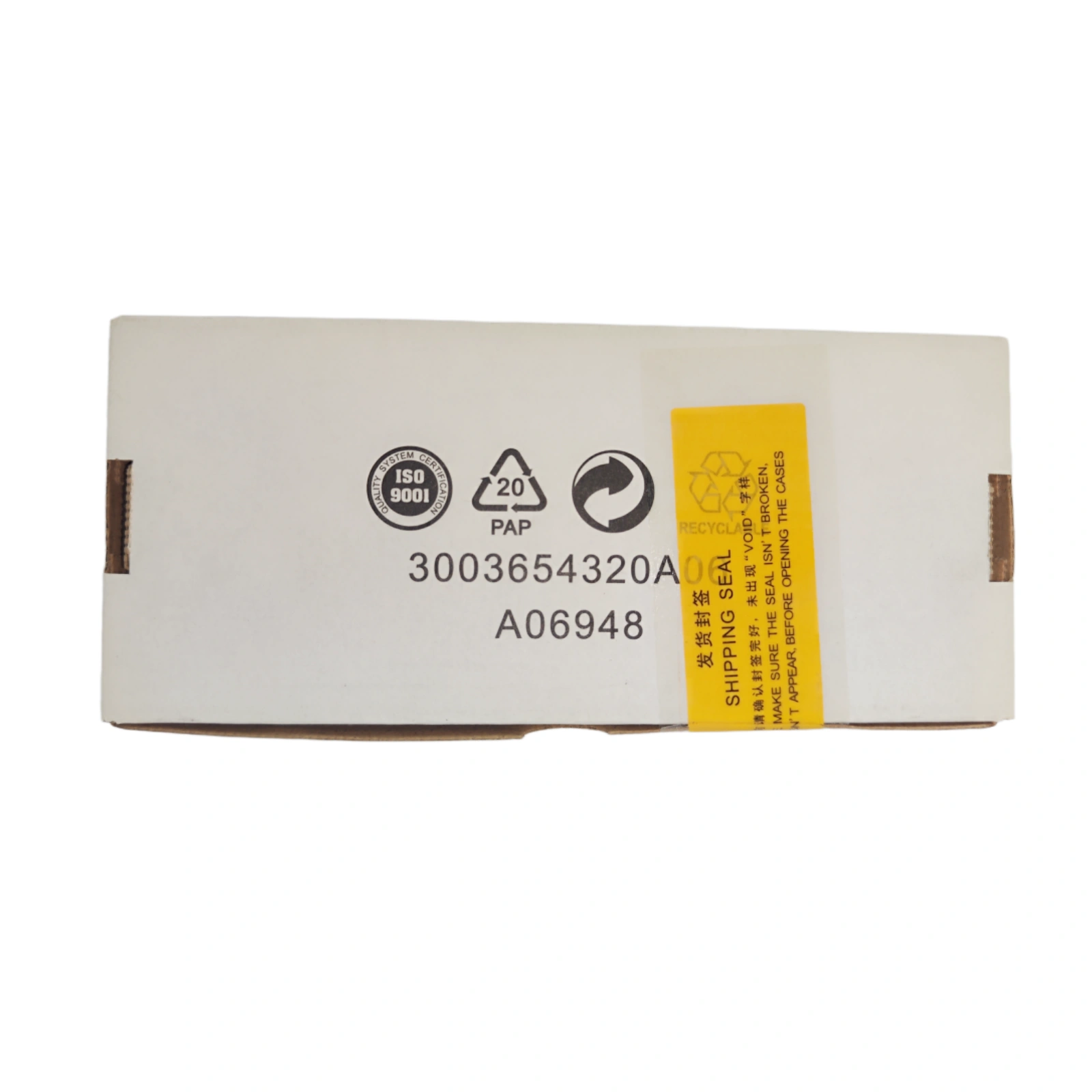

Huawei 02312NCX QSFP28-100G 80km Transceiver Module Box Back View with ISO Seal

HUAWEI 02312NCX QSFP28-100G-1310-80km-SM 100G ZR SMF LC Transceiver Module

$

Huawei

Product Features

100GBASE-ZR Performance : Delivers 100Gbps bandwidth over 80km of single-mode fiber, fully compliant with IEEE 802.3ba standard.

1310nm Fixed Wavelength : Utilizes a cost-effective 1310nm wavelength for stable and long-reach SMF transmission without complex DWDM systems.

High Power Efficiency : Optimized power design (Typical ≤ 4W) reducing heat generation and operational costs in high-density racks.

Full DDM/DOM Monitoring : Real-time monitoring of temperature, voltage, bias current, and optical power for proactive network maintenance.

QSFP28 Form Factor : Industry-standard hot-pluggable form factor for high port density and easy integration into modern network equipment.

Email Now Chat Us With Whatsapp Chat Us With Teams

Specifications

HUAWEI 02312NCX QSFP28-100G-1310-80km-SM 100G ZR SMF LC Transceiver Module

The QSFP28-100G-1310-80km-SM (Part Number: 02312NCX) is a high-performance 100GBASE-ZR QSFP28 optical transceiver designed for long-haul transmission up to 80km over single-mode fiber. Featuring a 1310nm fixed wavelength, +2dBm typical transmit power, and -28dBm receive sensitivity, this module delivers reliable 100G connectivity for carrier metro core networks, long-haul backhaul links, and enterprise data center interconnections. Manufactured in China with a duplex LC interface and full digital diagnostic monitoring (DDM/DOM), it is the ideal choice for high-speed 100G single-mode deployments in carrier and enterprise optical networking environments.

Model Number

QSFP28-100G-1310-80km-SM

Band

HuaWei

Huawei Part Number

02312NCX

Form Factor

QSFP28

Data Rate

100Gbps

Transmission Distance

Up to 80 km

Fiber Type

Single-Mode Fiber (SMF)

Hot Pluggable

Yes

Wavelength

1310nm

Connector Type

Duplex LC

Operating Temperature

0°C ~ 70°C

Country of Origin

China

Supply Voltage

3.3V DC

Power Consumption

≤ 4W

Typical Applications

100G Metro/Core Network Backbone
100G Long-Haul DWDM Backhaul Links
100G Data Center Interconnection (DCI)
High-Speed Enterprise Campus Backbone
OTN 100G Transport Network Deployments

Product Highlights

1. 100G Long-Reach Single-Mode Transmission

100Gbps Aggregate Bandwidth: Delivers 100Gbps high-speed transmission over standard single-mode fiber (SMF), with a reach of up to 80km
1310nm Wavelength: Optimized for long-haul single-mode fiber links, using a 1310nm wavelength for reliable signal transmission over extended distances
High Optical Budget: Boasts a link budget of up to 34.5dB (Tx power: +2~+6.5dBm, Rx sensitivity: -28dBm), ideal for challenging long-haul fiber paths

2. Industry-Standard QSFP28 Form Factor

QSFP28 MSA-Compliant Package: Hot-pluggable, compact design for maximum port density in high-density routers, switches and transport platforms
Duplex LC Interface: Compatible with standard single-mode fiber cabling infrastructure, no need for MPO ribbon cables
Low-Power Design: Energy-efficient architecture minimizes operational costs and heat generation in high-density data center racks

3. Proactive Management & Reliability

Integrated Digital Optical Monitoring (DOM/DMI): Real-time monitoring of transmit power, receive power, temperature, voltage, and laser bias current for proactive network maintenance
Class 1 Laser Safety Compliant: Meets IEC 60825-1 and RoHS environmental regulations for worldwide deployment
Wide Compatibility: Works with major brands of network hardware including Huawei, Cisco, Arista, Nokia, Ciena and Mellanox/NVIDIA
