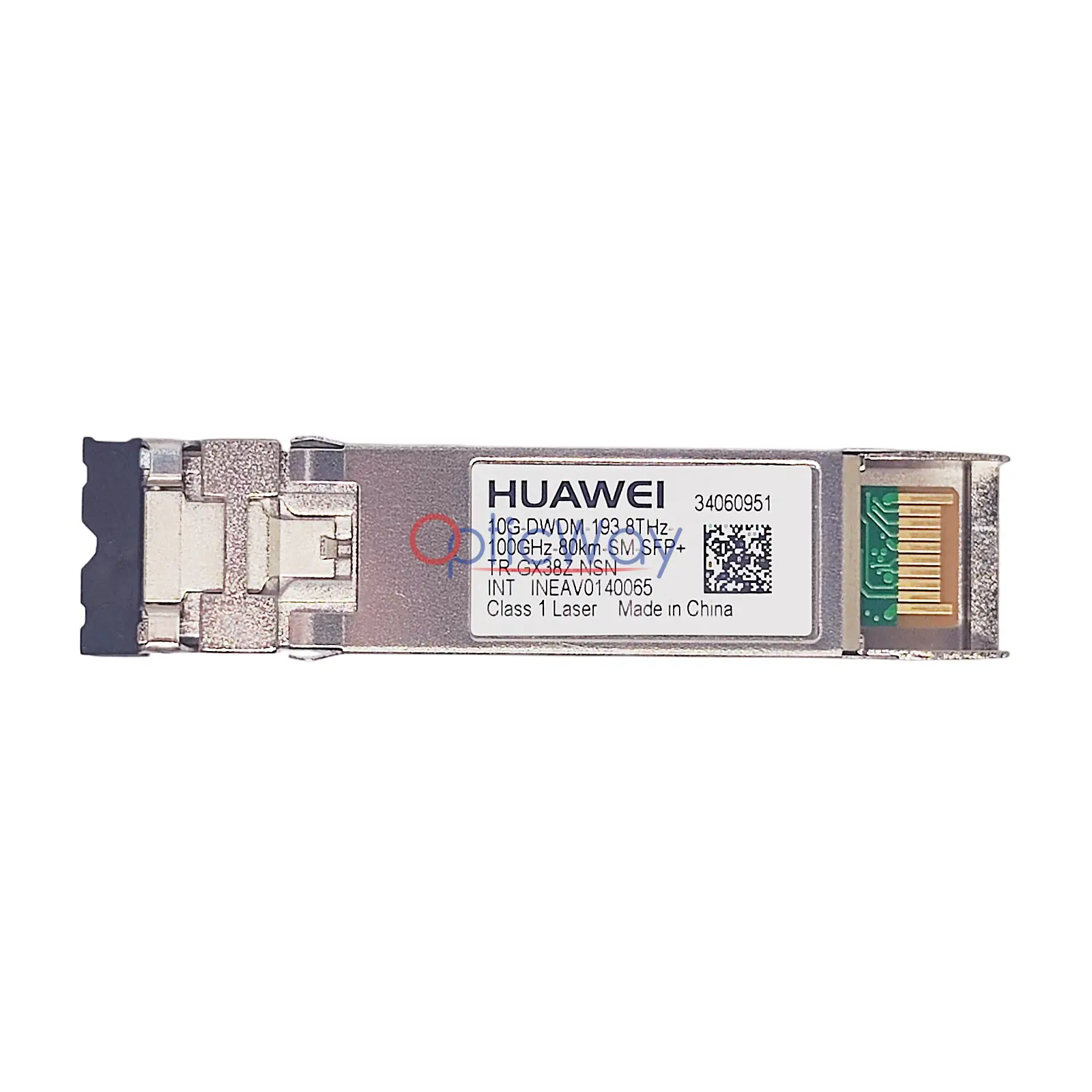

Genuine Huawei 34060951 TR-GX38Z-NSN 10G DWDM 193.8THz 100GHz 80km SMF SFP+ Front Label & Gold Finger Full View

Huawei 10G-DWDM-193.8THz -100GHz -80km-SM-SFP+10GBASE ZR Optical Transceiver TR-GX38Z-NSN 34060951

US$350.00
Huawei

Product Features

Condition : Opened box,Genuine,Good Condition,in stock.
Standard Fixed DWDM Wavelength : ITU-T 193.8THz standard frequency point with precise 100GHz grid, perfectly matched with standard DWDM multiplexer/demultiplexer systems
Hot-Pluggable SFP+ Standard Package : Compliant with SFP+ MSA multi-source agreement, hot swap without power cut, compatible with all network hardware with standard SFP+ ports
80km Ultra Long-Reach Repeater-Free Transmission : EML modulated laser with high dispersion tolerance, supporting up to 80km single-mode fiber transmission without extra optical amplifiers for trunk lines
Full SFF-8472 DDM Diagnostics : Visual monitoring of optical power, temperature and voltage via NMS, remotely locate fiber loss and laser aging faults
Multi-Rate & Multi-Protocol Compatibility : Supports 9.953~11.3Gbps bit rate, compatible with 10G Ethernet, SDH/SONET optical transmission and 10G Fibre Channel SAN storage networks
Email Now Chat Us With Whatsapp Chat Us With Teams
Specifications

Genuine Huawei 34060951 TR-GX38Z-NSN 10G DWDM 193.8THz 100GHz 80km SMF SFP+

The Huawei 34060951 (Model: TR-GX38Z-NSN) is a high-performance 10G DWDM SFP+ optical transceiver designed for long-haul, single-mode fiber (SMF) transmission up to 80km. Operating at 193.8THz (C38 channel, 100GHz grid), it complies with IEEE 802.3ae 10GBASE-ZR and ITU-T G.709 standards. Featuring integrated DDM/DOM for real-time monitoring, this module is ideal for metro, regional, and data center interconnect (DCI) networks requiring dense wavelength division multiplexing. Manufactured in China, it carries Class 1 Laser safety certification.

Part Number
34060951
Band
  Huawei
Model / Product Code
TR-GX38Z-NSN
Form Factor
  SFP+
Center Frequency
193.8 THz (C-Band, ~1546.12 nm)
Data Rate
10Gbps
Connector
Duplex LC
Fiber Type
  SMF
Max Transmission Distance
80km
Laser Safety Class
Class 1 (IEC 60825-1)
Tx Power
-1 ~ +2 dBm
Supply Voltage
  3.3V
Origin
  China
Operating Temperature
0°C to 70°C

Typical Applications

✅Metro & Regional Optical Transport Networks

✅Data Center Interconnect (DCI) over DWDM

✅10G Ethernet, SONET/SDH, OTN (OTU2/OTU2e)

✅Carrier-grade backbone networks

✅High-density wavelength routing systems

Product Highlights

✨【Precise DWDM Channel 】Fixed 193.8THz (C38) for seamless integration into existing DWDM systems.

✨【Carrier-Grade 80km Performance】APD receiver ensures low BER (<1E-12) over ultra-long spans.

✨【Zero-Touch Provisioning】Hot-swappable SFP+ with DDM for automated network monitoring.

✨【Multi-Protocol Ready】:Supports 10G Ethernet, OTN, SONET/SDH — ideal for converged networks.

✨【Huawei Original】Authentic Huawei transceiver, validated for NE, CloudEngine, and OptiX platforms.

✨【High Spectral Efficiency】 100GHz grid enables dense channel packing (up to 80 channels per fiber).

✨【Global Compliance】Meets FCC, RoHS, and IEC safety standards — deploy anywhere.

✨【Cost-Effective Scaling】 Enables pay-as-you-grow DWDM network expansion without costly upgrades.
