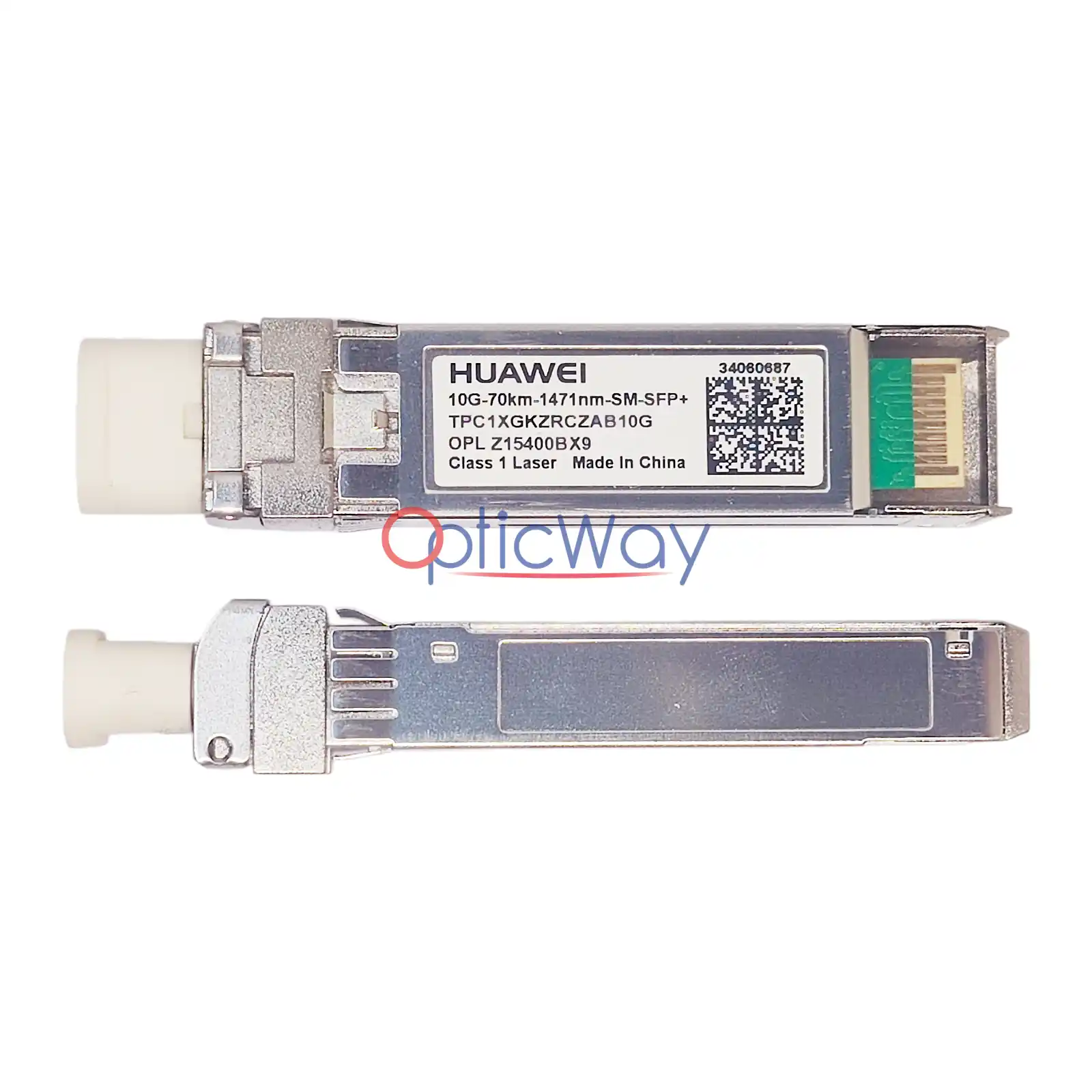

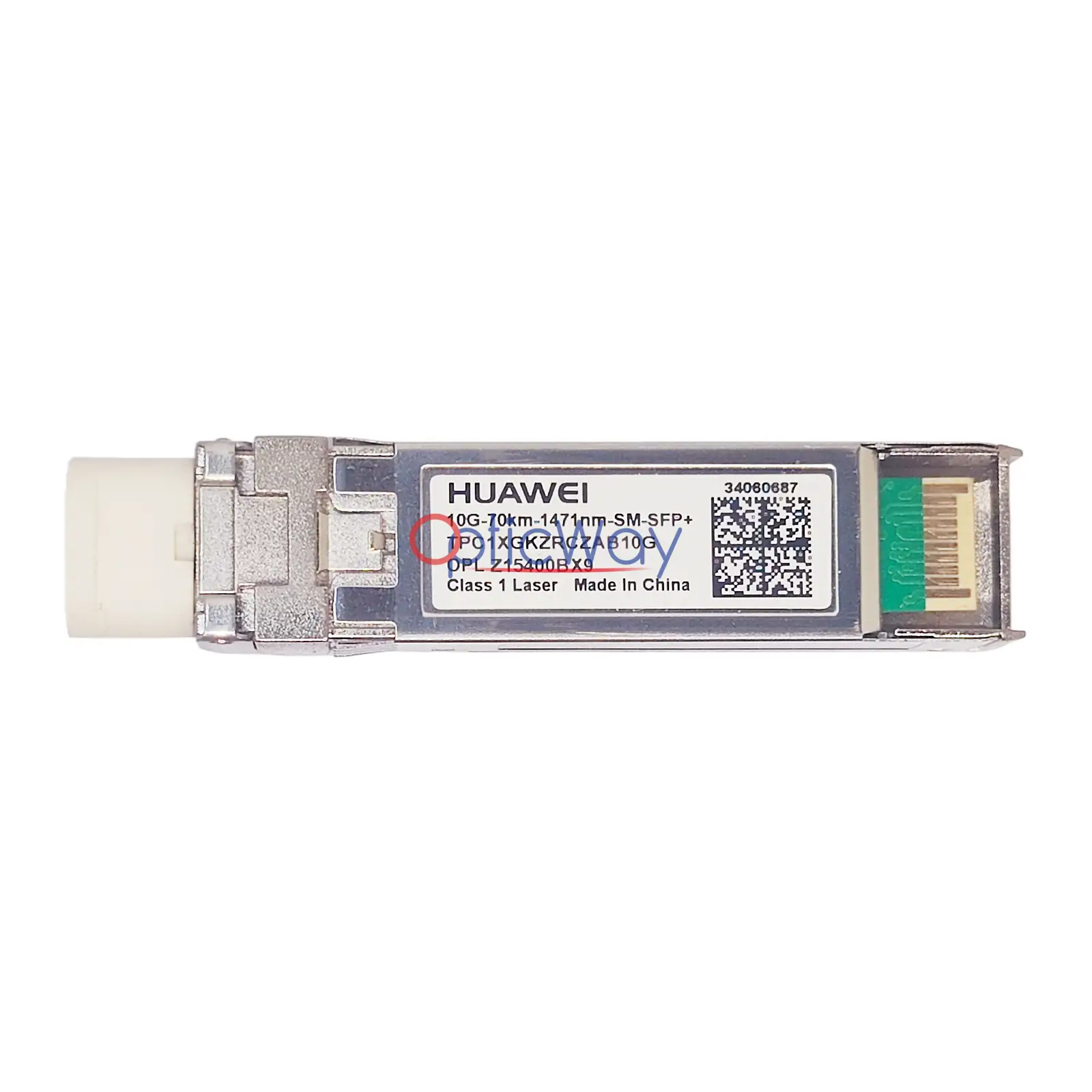

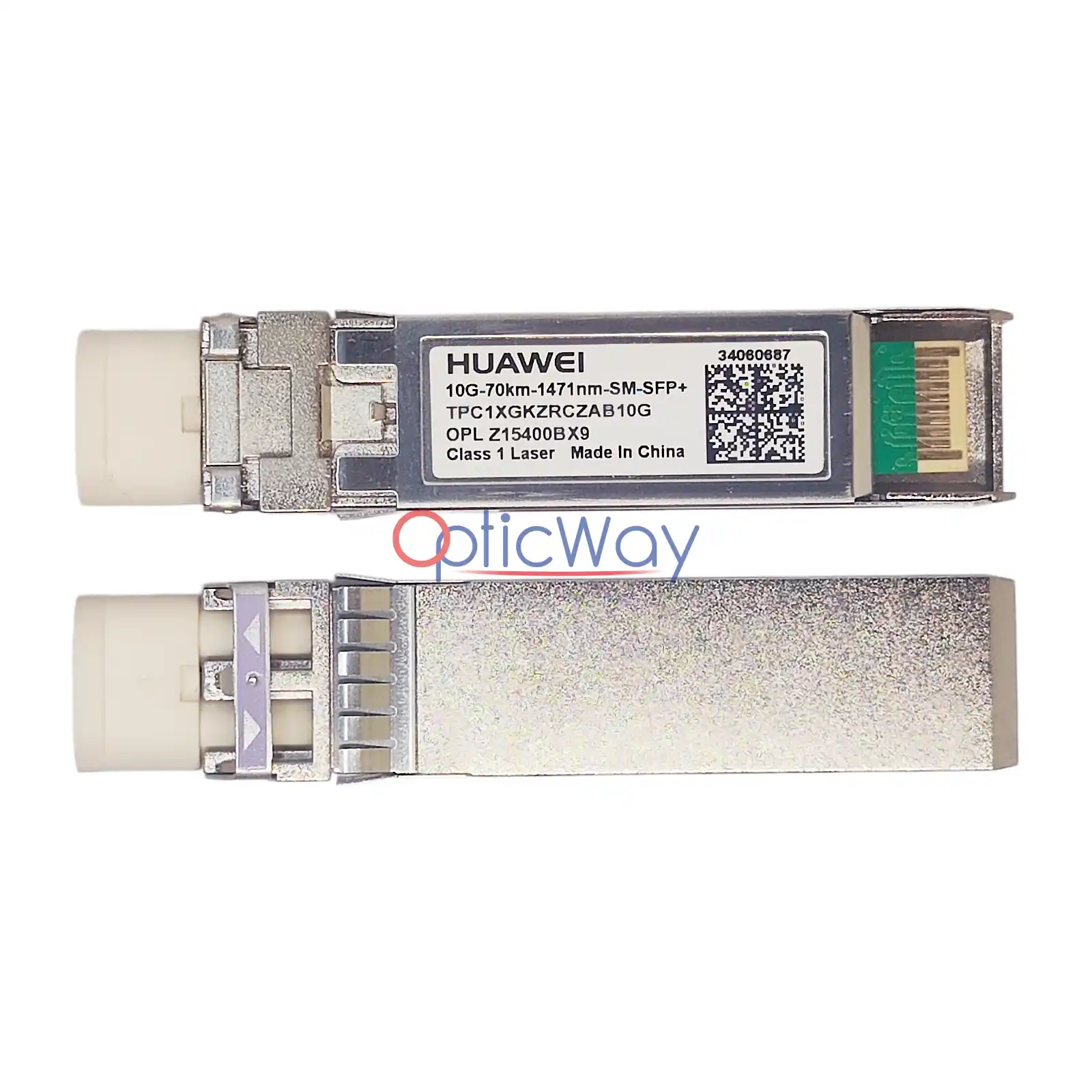

Genuine Huawei 34060687 TPC1XGKZRCZAB10G 10G CWDM SFP+ 1471nm 70km SMF
The Huawei 34060687 is a carrier-class, highly reliable 10Gbps Coarse Wavelength Division Multiplexing (CWDM) SFP+ optical transceiver module. Built upon the standard SFP+ hot-swappable footprint, it operates firmly at an ITU-T standard grid center wavelength of 1471nm. By operating over standard duplex Single-Mode Fiber (SMF) links, this transceiver delivers high-bandwidth, wire-rate 10Gbps pipelines up to a long transmission span of 70 kilometers, serving as a cost-efficient core component for long-haul metropolitan expansions and Data Center Interconnects (DCI).
Model / Product Code
TPC1XGKZRCZAB10G
Max Transmission Distance
70km
Laser Class
Class 1 Laser
Operating Temperature
0°C to 70°C
Typical Applications
✅Data Center Interconnects (DCI)
Perfect for establishing reliable 10G backbone junctions between widely separated corporate server rooms or campus headquarters spaced 50km to 70km apart.
✅Metro CWDM Transport Aggregations
Installed inside edge aggregation nodes alongside passive wave-division equipment to blend separate 10G lines inside congested underground conduits.
✅Carrier Edge Optical Backhauls
Tailored for IPRAN, transport networks, and legacy SDH system revamps that require stringent link loss tolerances and telecom-level consistency.
Product Highlights
✨【70km Long-Reach Power Budget】 Features an integrated high-sensitivity APD (Avalanche Photodiode) receiver paired with a highly stable CWDM DFB laser to provide a robust optical link budget, ensuring low Bit Error Rates over extreme fiber runs.
✨【Precision 1471nm CWDM Profile】
Complies with the official ITU-T G.694.2 standard grid using a center wavelength of 1471nm. It can plug directly into passive CWDM Mux/Demux modules to double existing physical fiber bandwidth efficiency without adding layout costs.
✨【Standardized SFP+ Form Factor】
100% physically and electrically compatible with any industry-standard SFP+ hardware slot. Supports live hotswapping to streamline field upgrades or link repairs without causing system-wide reboots.
✨【Full SFF-8472 Digital Diagnostic Monitoring】
Enables non-disruptive telemetry scanning from switch/router consoles, tracking parameters such as operating temperature, voltage, laser bias currents, and real-time Rx/Tx optical power.
