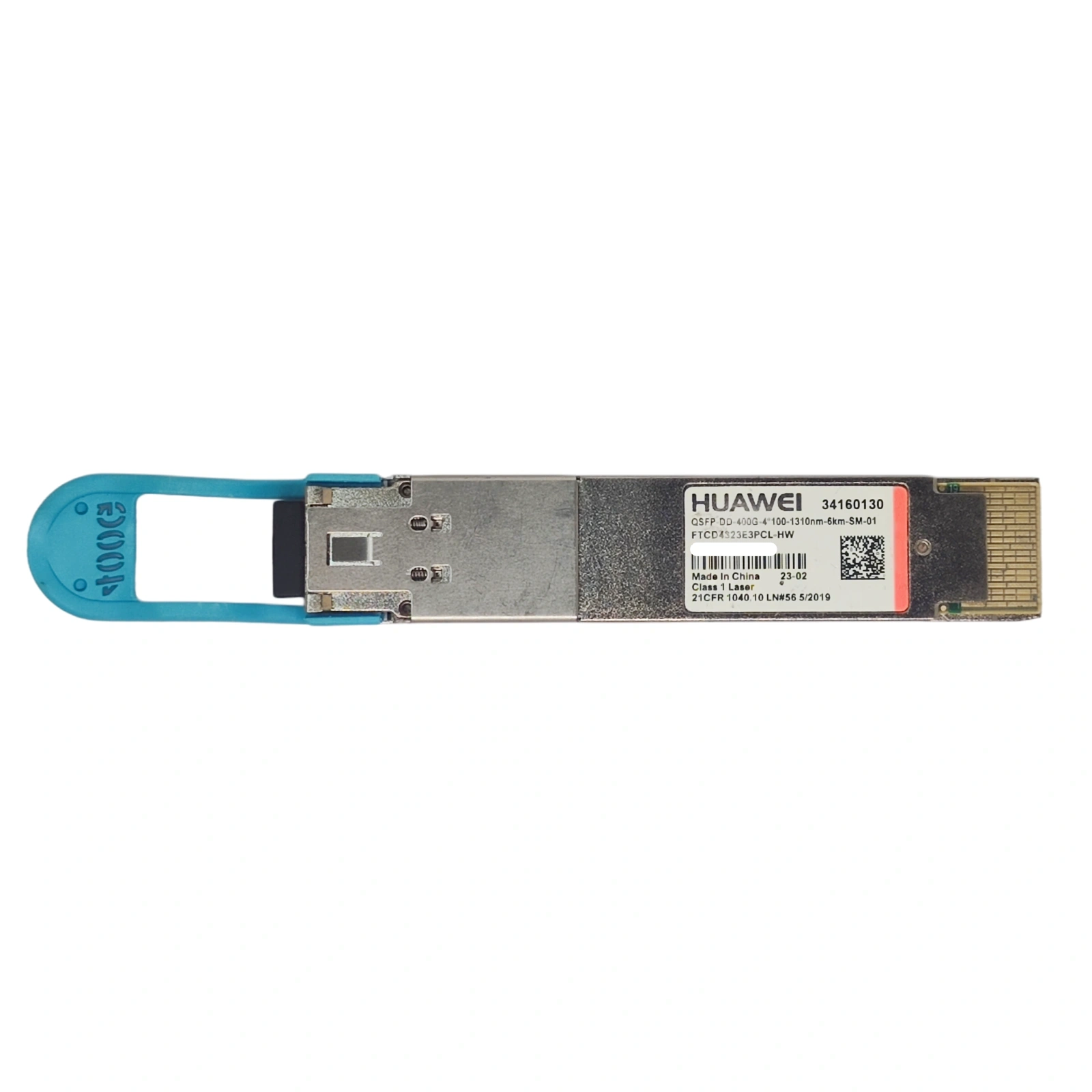

Huawei 34160130 FTCD4323E3PCL-HW 400GBASE-DR4 QSFP-DD Transceiver with Label

Huawei 34160130 QSFP-DD -400GBASE-DR4 FTCD4323E3PCL-HW 1310nm 6km SMF LC Transceiver

$
Huawei

Product Features

400GBASE-DR4+ Compliance : Delivers 400Gbps bandwidth over 6km of single-mode fiber, fully compliant with IEEE 802.3ck standard.
Optimized Optical Budget : Tx power range 0~+4dBm, receiver sensitivity as low as -10dBm, ensuring stable short-reach link performance.
4×100G Multi-Lane Design : Utilizes four parallel 100G lanes at 1310nm for high-density, cost-effective 400G connectivity.
QSFP-DD Form Factor : Industry-standard double-density form factor for high port density and seamless integration into modern 400G network equipment.
Full DDM/DOM Monitoring : Real-time monitoring of temperature, voltage, bias current, and optical power for proactive network maintenance.
Email Now Chat Us With Whatsapp Chat Us With Teams
Specifications

Huawei 34160130 QSFP-DD -400GBASE-DR4 FTCD4323E3PCL-HW 1310nm 6km SMF LC Transceiver

Huawei 34160130 is a high-performance 400GBASE-DR4 QSFP-DD optical module designed specifically for short-distance transmission up to 6 kilometers over single-mode fiber. Operating at a wavelength of 1310 nanometers, this module features 4×100G parallel channels and a mature optical engine design, providing stable 400G connectivity for leaf-spine switching fabrics, short-distance DCI, and high-speed enterprise backbone networks. Equipped with duplex LC connectors and comprehensive digital diagnostic monitoring capabilities, it is the optimal solution for large-scale 400G high-density data center deployments.

Model Number
QSFP-DD -400GBASE-DR4
Band
Huawei
Huawei Part Number
34160130
Form Factor
QSFP-DD
Data Rate
400Gbps (4×100Gbps）
Transmission Distance
Up to 6 km
Fiber Type
Single-Mode Fiber (SMF)
Hot Pluggable
Yes
Wavelength
1310nm
Connector Type
Duplex LC
Transmit Power
0 dBm ~ +4 dBm
Receiver Sensitivity
-10 dBm
Supply Voltage
3.3V DC
Power Consumption
≤ 10W

Typical Applications

Product Highlights

1. 400G Long-Reach Single-Mode Transmission

  • 400GBASE-LR4 Compliant: Delivers 400Gbps aggregate bandwidth over standard single-mode fiber (SMF)
  • 4×100G CWDM Technology: Uses four 1310nm CWDM channels for 4×100Gbps parallel transmission, supporting up to 6km reach on G.652 SMF
  • Duplex LC Interface: Eliminates the need for complex ribbon cables, simplifying deployment in high-density data centers

2. Industry-Standard QSFP-DD Form Factor

  • QSFP-DD (Double Density) Package: High-density, next-generation form factor for maximum port density in 400G switches and routers
  • Blue Pull-Tab: The blue pull-tab is the industry standard visual marker for 400G LR4 short-reach single-mode modules
  • Huawei Certified: Seamlessly interoperable with Huawei CloudEngine series and other major vendor hardware

3. Advanced Network Management & Reliability

  • Integrated Digital Optical Monitoring (DOM/DMI): Real-time monitoring of transmit power, receive power, temperature, voltage, and laser bias current
  • Class 1 Laser Safety Compliant: Meets IEC 60825-1 and RoHS standards for global deployment
  • Low-Power Design: Energy-efficient architecture minimizes operational costs and heat generation in high-density 400G racks
