Huawei TNF1C1CFPT69 100G-DWDM-C ext. -T69-SM-TCFP 03032LVW 100Gbps CFP Transceiver

Huawei TNF1C1CFPT69 100G-DWDM-C ext. -T69-SM-TCFP 03032LVW 100Gbps CFP Transceiver

Huawei TNF1C1CFPT69 is a high-performance 100G DWDM C ext. TFP coherent optical transceiver designed for ultra long distance transmission over single-mode fiber. This module features full C-band tunability, advanced DP-QPSK modulation, and integrated high-speed DSP, providing reliable 100G connectivity for operator core networks, DCI, and 5G backhaul platforms. With Level 1 laser compliance and fully digital diagnostic monitoring, it is an ideal choice for high-density 100G DWDM deployment in Huawei's optical network environment.

Model Number

03032LVW

Band

HuaWei

Huawei Part Number

TNF1C1CFPT69

Form Factor

CFP

Data Rate

100Gbps (OTN/100G Ethernet)

Modulation

Coherent, DP-QPSK

Fiber Type

Single-Mode Fiber (SMF)

Hot Pluggable

Yes

Wavelength

C-band tunable (1530nm-1565nm)

Connector Type

Duplex LC

Operating Temperature

0°C ~ 70°C

Country of Origin

China

Safety & Compliance

Class 1 Laser Product (21 CFR 1040.10), RoHS

Diagnostics

Digital Diagnostic Monitoring (DDM)

• 100G/400G Metro/Core Network Backbone
• 100G DWDM Ultra-Long Haul Telecom Backbone
• 100G Data Center Interconnection (DCI) Across Continents
• High-Capacity OTN Transport Platforms
• 5G Core & Backhaul Network Expansion

1. 100G Tunable DWDM for Core Network Transport

• Full C-Band Tunable DWDM Laser: Supports full C-band wavelength tuning on the ITU-T 50GHz grid, eliminating the need for fixed-wavelength transceivers and simplifying network planning
• 100Gbps Coherent Transmission: Leverages advanced modulation formats to deliver 100Gbps line-rate transport over standard single-mode fiber (SMF)
• Extended Reach (T69 Profile): Optimized for ultra-long-haul (ULH) transmission in core, metro, and subsea networks, supporting hundreds of kilometers without regeneration

2. Industry-Standard CFP Form Factor

• CFP (100G Form-factor Pluggable) Package: Hot-pluggable, MSA-compliant design for deployment in high-density routers, OTN platforms, and core network equipment

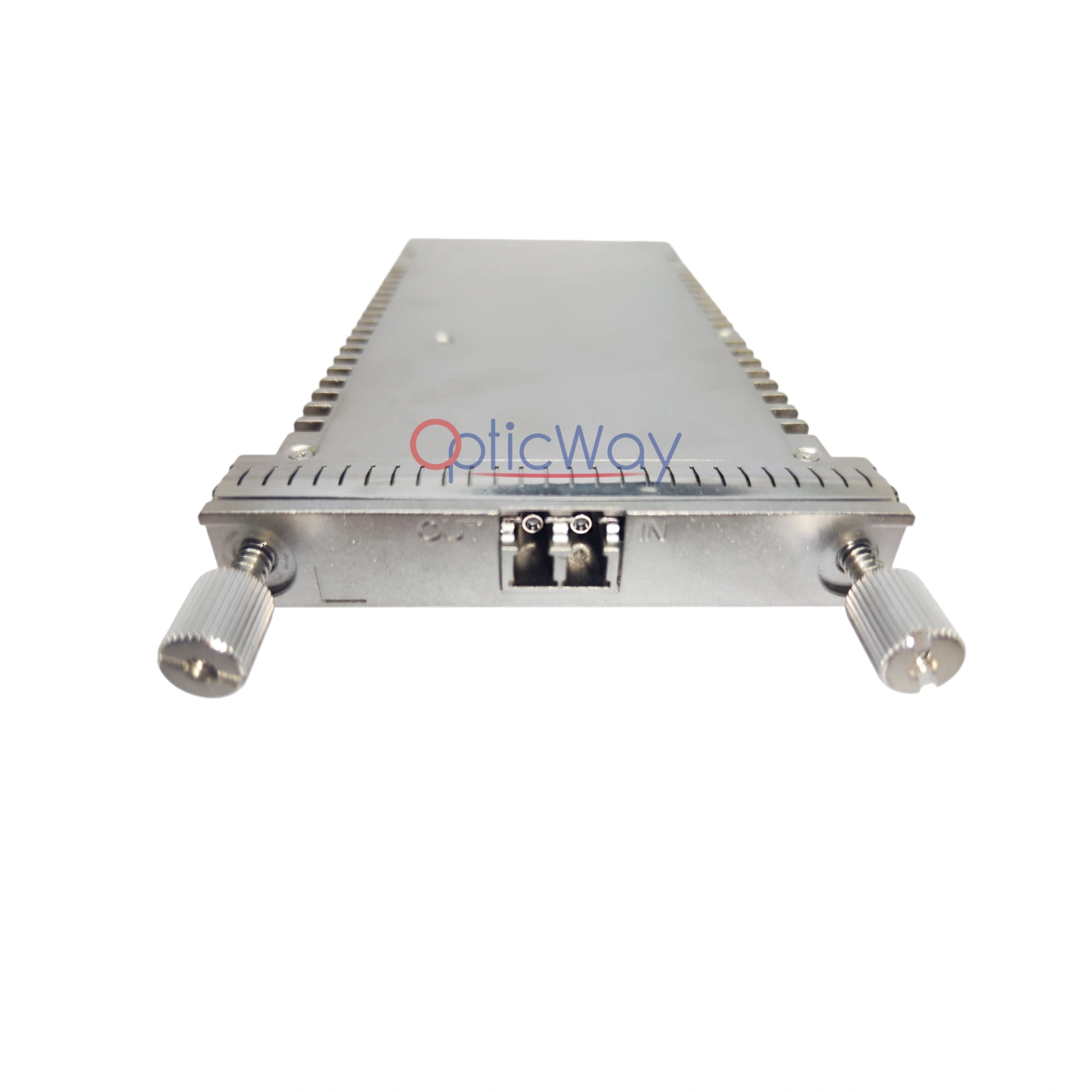

• Dual LC Optical Interface: Compatible with standard single-mode fiber (SMF) cabling infrastructure for seamless integration into existing DWDM networks
• Carrier-Grade Design: Rugged construction for stable performance in harsh central office environments

3. Reliability & Management

• Integrated Digital Optical Monitoring (DOM): Real-time monitoring of transmit power, receive power, temperature, voltage, and laser bias current for proactive maintenance
• Huawei Certified: Fully tested for interoperability with Huawei NE series, OptiX OTN, and core network hardware
• Class 1 Laser Safety Compliant: Meets IEC 60825-1 and RoHS standards for global deployment
