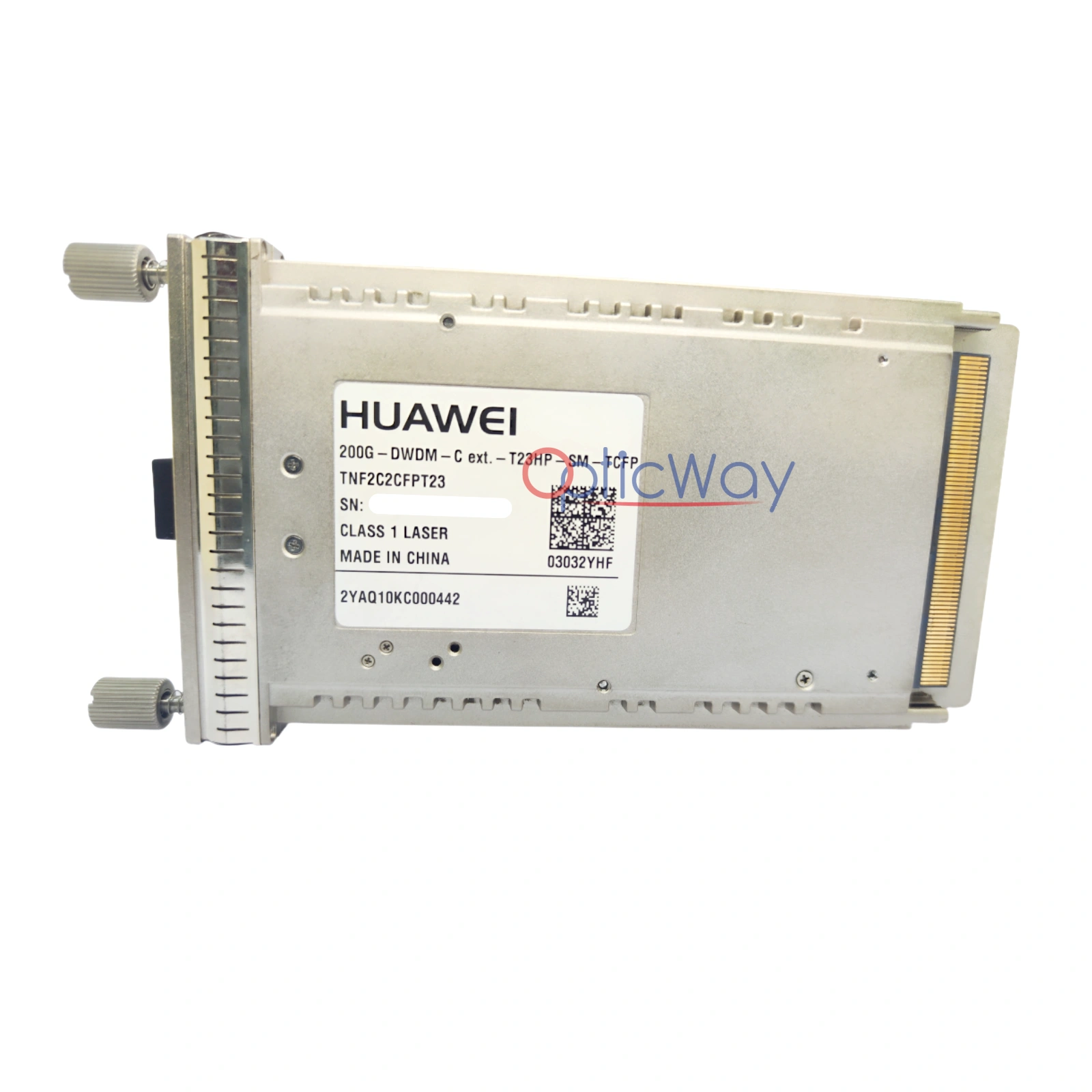

Huawei TNF2C2CFPT23 03032YHF 2YAQ10KC000442 200G DWDM T23HP CFP Transceiver with Label

Huawei TNF2C2CFPT23 200G DWDM C ext. -T23HP-SM-TCFP 03032YHF CFP Coherent Transceiver Tunable C-band

$
Huawei

Product Features

200G High-Performance Coherent DWDM : Delivers 200Gbps transmission via advanced multi-modulation coherent technology (DP-QPSK/8QAM), compliant with OTN and 200GBASE standards.
C-band Extended Tunable Wavelength : Full C-band tunability with
High-Power (T23HP) Design : Optimized high-power output for ultra-long reach and robust signal performance in degraded fiber conditions.
Telecom-Grade Reliability : Huawei engineered for 24/7 operation in carrier core networks, with high environmental tolerance.
Full Coherent DSP & Diagnostics : Integrated high-speed coherent DSP for FEC, dispersion compensation, and full DDM/DOM monitoring.
Email Now Chat Us With Whatsapp Chat Us With Teams
Specifications
Huawei TNF2C2CFPT23 200G DWDM C ext. -T23HP-SM-TCFP 03032YHF CFP Coherent Transceiver Tunable C-band
Huawei TNF2C2CFPT23 is a high-performance 200G DWDM C-band external CFP coherent optical transceiver, specifically designed for ultra-long-distance transmission over single-mode fiber. This module boasts full C-band tunability, advanced multi-format coherent modulation, and integrated high-speed DSP functionality, providing reliable 200G connectivity for carrier core networks, long-distance DWDM backbone networks, and 5G high-capacity backhaul platforms. Manufactured in China, this module complies with Class 1 laser standards and features full digital diagnostic monitoring capabilities, making it an ideal choice for high-density 200G DWDM deployments in Huawei's optical networking environment.

Model Number
03032YHF
Band
HuaWei
Huawei Part Number
TNF2C2CFPT23
Form Factor
CFP
Data Rate
100Gbps (OTN/100G Ethernet)
Modulation
Coherent, DP-QPSK
Fiber Type
Single-Mode Fiber (SMF)
Hot Pluggable
Yes
Wavelength
C-band tunable (1530nm-1565nm)
Connector Type
Duplex LC
Operating Temperature
0°C ~ 70°C
Country of Origin
China
Safety & Compliance
Class 1 Laser Product, RoHS
Diagnostics
Digital Diagnostic Monitoring (DDM)

Typical Applications
  • 200G Metro/Core Network Backbone
  • 200G DWDM Long-Haul Telecom Backbone
  • 200G Cross-Continental Data Center Interconnection (DCI)
  • High-Capacity OTN Transport Platforms
  • 5G Core & High-Capacity Backhaul Networks

Product Highlights

1. 200G Tunable DWDM for High-Capacity Core Networks

  • C-band Extensible Tunable Laser (T23HP Profile): Supports full C-band wavelength tuning on the ITU-T 50GHz grid, enabling flexible wavelength allocation and optimizing DWDM system resource utilization. Eliminates inventory complexity of fixed-wavelength transceivers.
  • 200Gbps High-Speed Coherent Transmission: Delivers line-rate 200Gbps transport over standard single-mode fiber (SMF) using advanced coherent modulation, supporting next-generation 5G and cloud infrastructure backbones.
  • Ultra-Long Reach (ULH) Performance: Engineered for T23HP extended reach profiles, supporting sub-80km to ultra-long haul transmission without regeneration, ideal for carrier-grade core and submarine networks.

2. Industry-Standard CFP Form Factor

  • CFP (100G/200G Form-factor Pluggable) Package: Large form-factor, MSA-compliant design for deployment in high-port-density core routers, OTN platforms, and transport equipment. Maximizes slot utilization in traditional carrier-grade hardware.

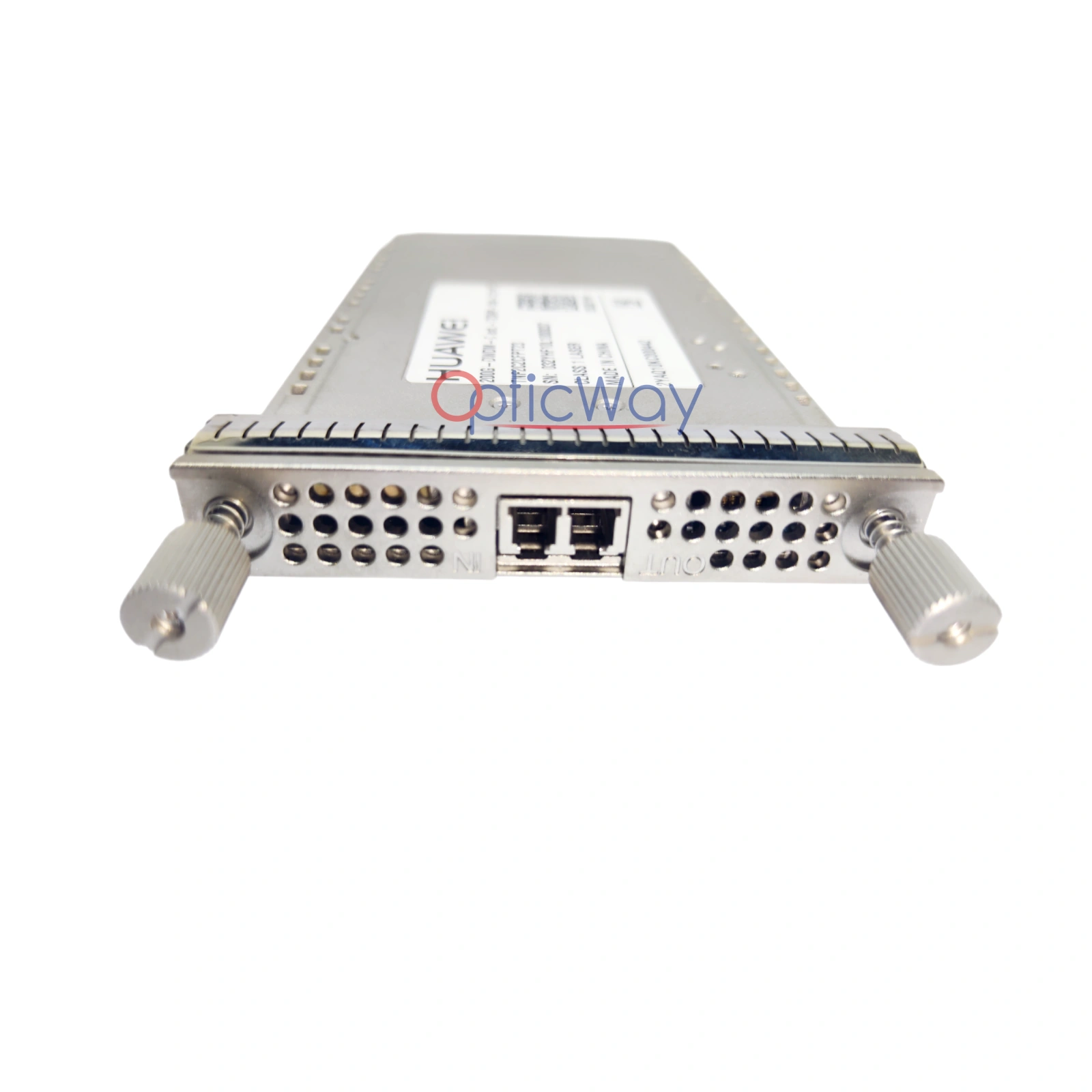

  • Dual LC Optical Interface: Fully compatible with standard SMF DWDM cabling infrastructure, ensuring seamless integration into existing optical networks without costly infrastructure upgrades.
  • Carrier-Grade Durability: Rugged metal construction and extended temperature range ensure stable operation in harsh central office (CO) and data center environments.

3. Carrier-Grade Reliability & Intelligent Management

  • Integrated Digital Optical Monitoring (DOM/DMI): Real-time monitoring of transmit power, receive power, temperature, supply voltage, and laser bias current for proactive fault detection and predictive maintenance.
  • Huawei Certified: Rigorously tested for interoperability with Huawei NE series, OptiX, and 1800/900 series OTN transport platforms. Ensures plug-and-play deployment with full feature support.
  • Class 1 Laser Safety: Complies with IEC 60825-1 and 21CFR 1040.10 global safety standards, ensuring safe operation in all environments.

4. Scalable & Future-Proof Solution

  • Flexible Rate Adaption: Supports smooth migration from 100G to 200G, and is compatible with next-generation 400G/800G infrastructure upgrades via coherent technology scaling.
  • Ideal for Carrier & Enterprise Backbones: Perfect for DWDM core networks, data center interconnect (DCI), 5G core transport, and international private line services.
  • Low Power Design: Optimized power efficiency minimizes heat dissipation and operational costs (TCO) in high-density carrier and data center racks.
