Huawei TNF4C2CFP2A24 200G-DWDM-C sup.A24HP 03033FUW CFP2 DWDM SMF Transceiver Module
The Huawei TNF4C2CFP2A24 is a high-performance 200G DWDM C sup.A24HP CFP2 coherent optical transceiver designed for ultra-long haul transmission over single-mode fiber. Featuring full C-band tunability, advanced multi-format coherent modulation, and integrated high-speed DSP, this module delivers reliable 200G connectivity for carrier core networks, long-haul DWDM backbone, and 5G high-capacity backhaul platforms. Manufactured in China with class 1 laser compliance and full digital diagnostic monitoring, it is the ideal choice for high-density 200G DWDM deployments in Huawei optical networking environments.
Huawei Part Number
TNF4C2CFP2A24
Modulation
DP-QPSK/8QAM Multi-format Coherent
Fiber Type
Single-Mode Fiber (SMF)
Wavelength
C-band tunable (1530nm - 1565nm, C sup. enhanced)
Operating Temperature
0°C ~ 70°C
Typical Applications
- 200G Metro/Core Network Backbone
- 200G DWDM Long-Haul Telecom Backbone
- 200G Cross-Continental Data Center Interconnection (DCI)
- High-Capacity OTN Transport Platforms
- 5G Core & High-Capacity Backhaul Networks
Product Highlights 1. 200G High-Performance DWDM Coherent Transport
- Advanced Coherent DSP: Delivers 200Gbps line-rate transmission over DWDM networks, leveraging advanced modulation formats for ultra-long-haul (ULH) performance
- Super C-band Tunable Laser: Supports full C-band wavelength tuning on the ITU-T grid, eliminating the need for fixed-wavelength transceivers and optimizing wavelength resource utilization
- A24HP High-Power Profile: Engineered for extended reach and high-power budgets, ideal for core and long-haul carrier-grade networks
2. Compact CFP2 Form Factor
- CFP2 (Compact Form-factor Pluggable 2) Package: 50% smaller than the original CFP, optimized for high-port-density routers and OTN transport platforms

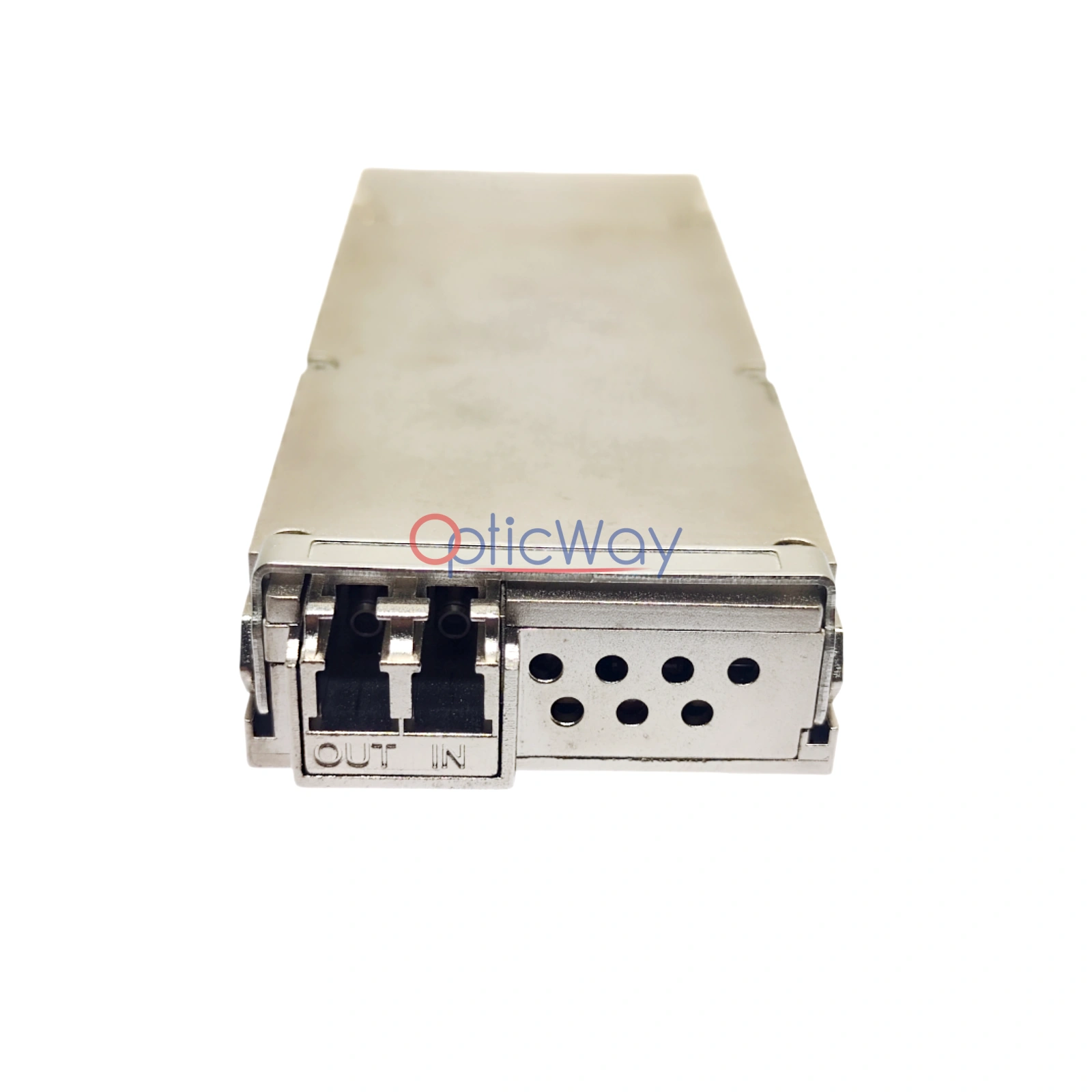

- Dual LC Optical Interface: Compatible with standard single-mode fiber (SMF) DWDM cabling infrastructure, enabling seamless integration into existing networks
- Low Power Design: Optimized power efficiency for reduced heat dissipation and operational costs in high-density carrier racks
3. Carrier-Grade Reliability & Management
- Integrated Digital Optical Monitoring (DOM/DMI): Real-time monitoring of transmit power, receive power, temperature, voltage, and laser parameters for proactive maintenance
- Huawei Certified: Rigorously tested for interoperability with Huawei NE series, OptiX OTN, and core network hardware
- Class 1 Laser Safety Compliant: Meets IEC 60825-1 and RoHS standards for global deployment
4. Versatile Core Network Applications
- DWDM Core Backbone: Perfect for high-capacity 200G OTN/DWDM transport links
- Long-Haul & Metro Networks: Optimized for carrier-grade metro aggregation and ultra-long-haul transmission
- 5G & Cloud Infrastructure: Supports 5G core transport and data center interconnect (DCI) links
