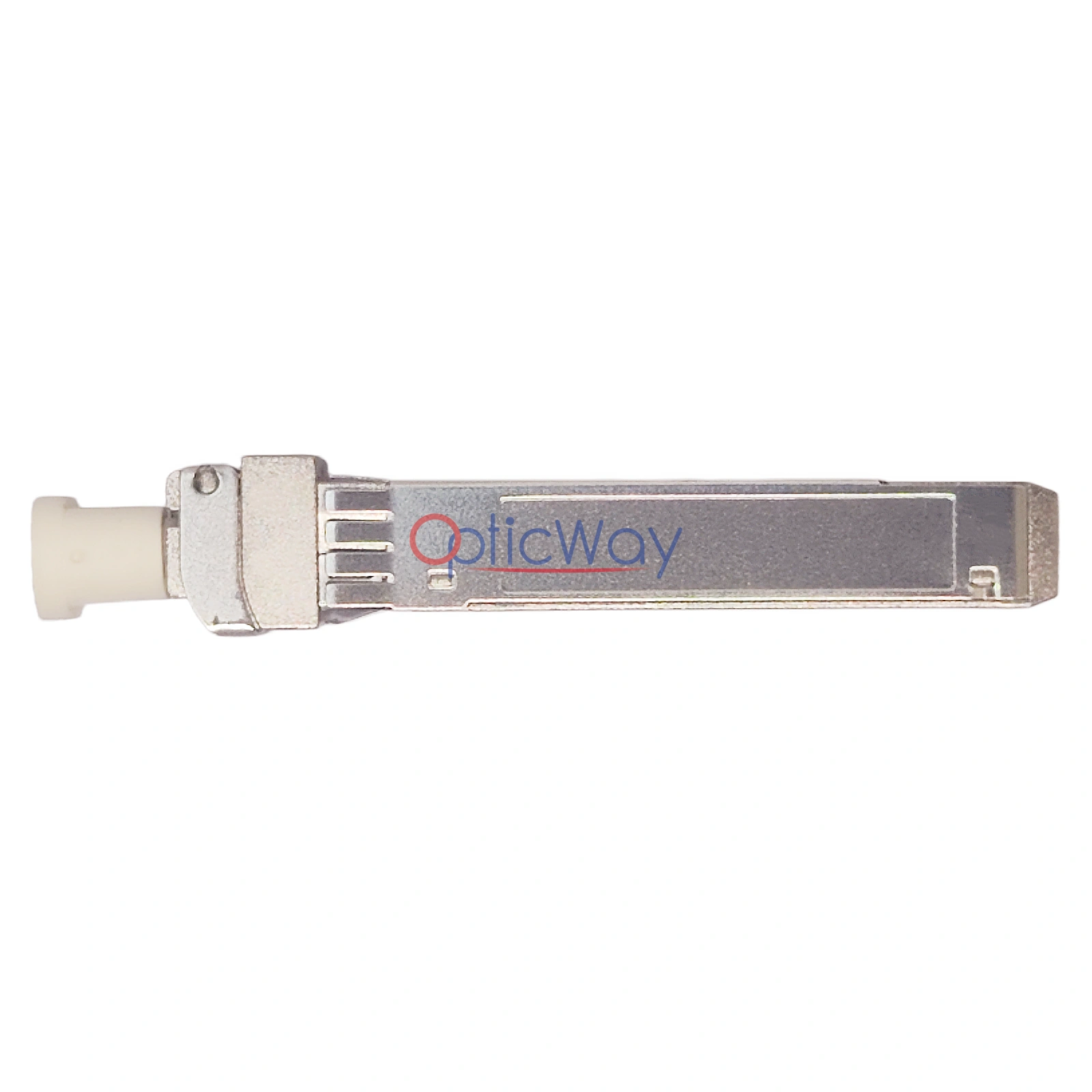

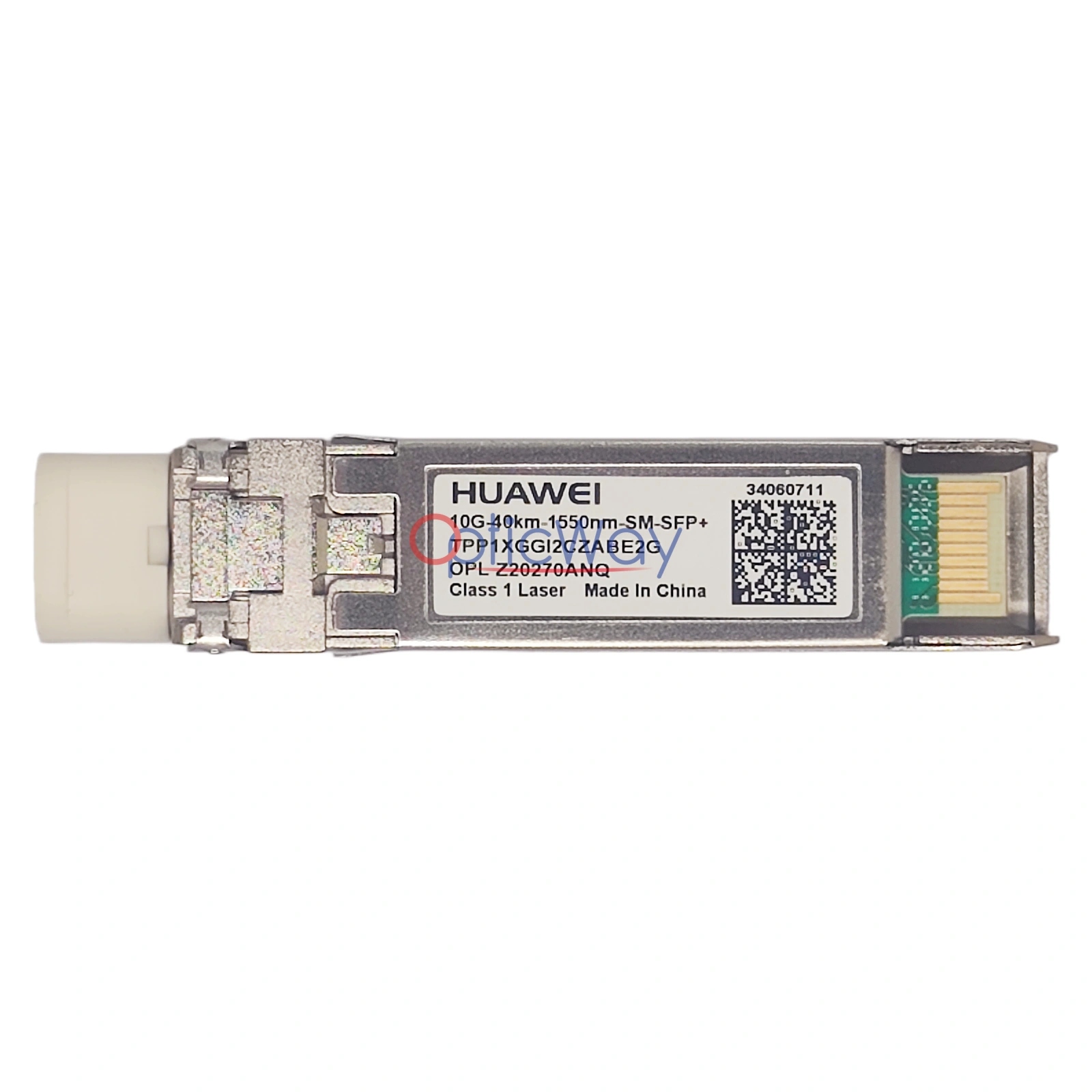

Huawei TPP1XGGI2CZABE2G 10GBASE-ER SFP+ 10G 40km 1550nm SMF 34060711 Transceiver

Huawei TPP1XGGI2CZABE2G 10GBASE-ER SFP+ 10G 40km 1550nm SMF 34060711 Transceiver

The Huawei 34060711 is a high-performance 10GBASE-ER SFP+ optical transceiver, designed for long-reach transmission up to 40km over single-mode fiber. Operating at 1550nm, it supports 10Gbps signaling for enterprise core networks, metro access, and long-distance campus applications. This module features an LC duplex connector, full DDM/DOM monitoring, and is optimized for use with Huawei enterprise and carrier-grade switches and routers.

Model Number

34060711

Band

Huawei

Ciena Part Number

TPP1XGGI2CZABE2G

Form Factor

SFP+

Data Rate

10Gbps

Transmission Distance

Up to 40km

Fiber Type

Single-Mode Fiber (SMF)

Hot Pluggable

  Yes

Wavelength

1550nm

Connector Type

Duplex LC

Operating Temperature

0°C ~ 70°C

Country of Origin

  China

Supply Voltage

3.3V DC

Power Consumption

≤ 1.5W

• 10G Long-Reach Enterprise Core Network Connections
• Metro Access and Backhaul Networks
• 10G Campus and Building-to-Building Links
• High-Speed 10G Switch/Router Expansion
• 10GBASE-ER Standard Compliant Deployments

Product Highlights

• This transceiver fully complies with the 10GBASE-ER standard, delivering 10Gbps wire-speed transmission over standard G.652 single-mode fiber.
• It operates at a wavelength of 1550nm, providing excellent signal integrity with low attenuation. The maximum reach is 40km, making it ideal for long-distance connections in metro networks and campus backbones.

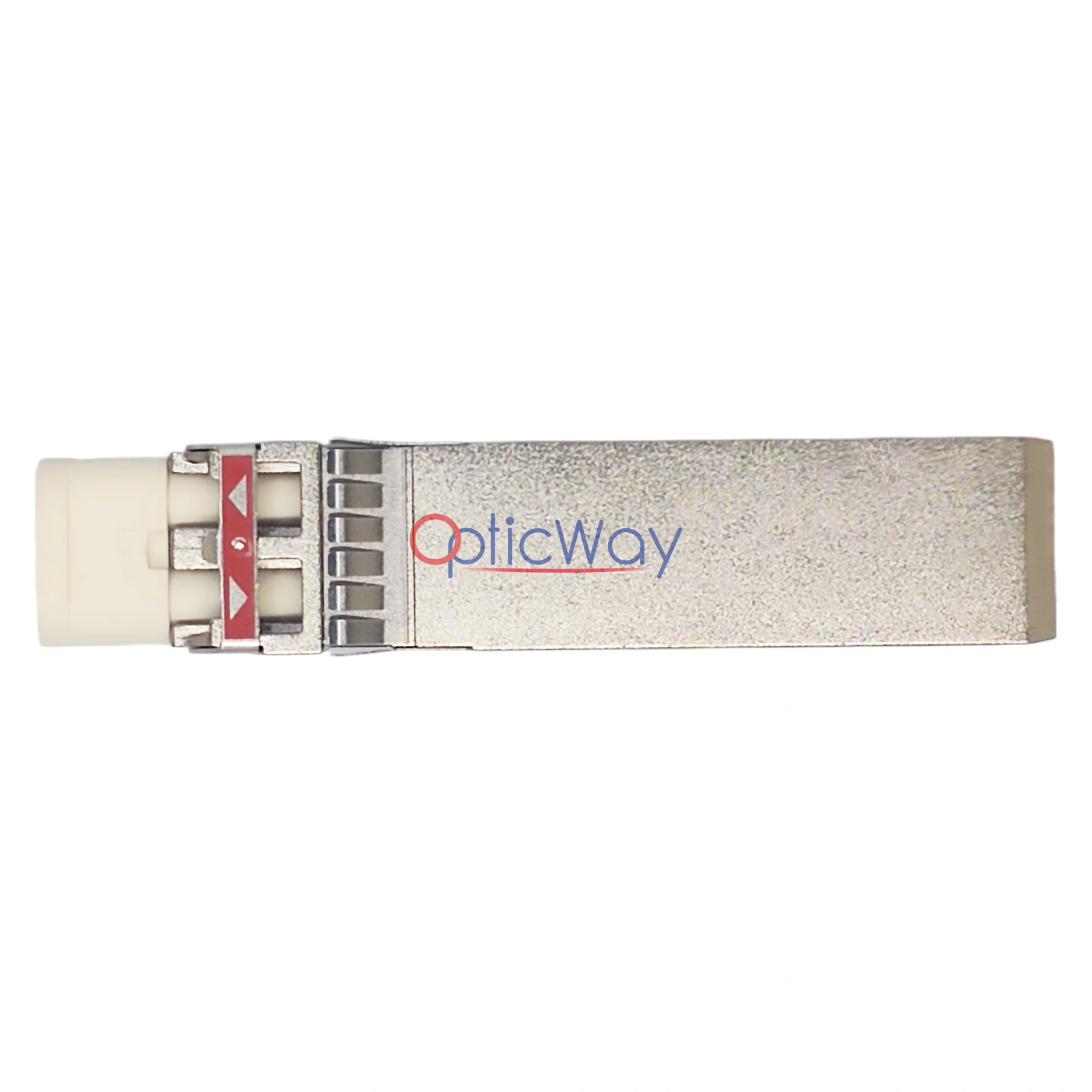

• It features a standard duplex LC connector, which simplifies cabling and maintenance compared to multi-fiber solutions.

2. Standard SFP+ Package & Broad Compatibility

• It uses the widely adopted SFP+ (Small Form-factor Pluggable Plus) package, which is compact, hot-swappable, and designed for high port density.
• It is natively compatible with Huawei switches, routers, and firewalls, and also works with most third-party devices that support standard SFP+ transceivers.
• The hot-plug-and-play design allows for easy installation, replacement, and capacity expansion without disrupting network operations.

3. Reliable Performance & Compliance Certification

• Built-in Digital Optical Monitoring (DOM) allows real-time monitoring of key parameters including TX power, RX power, temperature, voltage, and laser bias current.
• This enables proactive maintenance and fault diagnosis, reducing downtime.
• Certified as a Class 1 Laser product and compliant with RoHS standards, it meets global commercial and carrier-grade deployment requirements.
• It undergoes rigorous factory testing to ensure stable performance within the commercial temperature range of 0℃ to 70℃.
