Intel E100GQSFP28LRX 100GBASE-LR4 FTLC11154RDPLPL3-IT QSFP28 SMF100G 1310nm 10km LC with anti-counterfeit label
The Intel E100GQSFP28LRX is a high-performance 100GBASE-LR4 QSFP28 optical transceiver designed for transmission up to 10km over single-mode fiber. Featuring a 1310nm LAN-WDM wavelength, 4×25G parallel lanes, and optimized optical power budget, this module delivers reliable 100G connectivity for enterprise campus backbones, metro access networks, and short-to-medium distance data center interconnections. Manufactured in Malaysia with duplex LC interface and full digital diagnostic monitoring (DDM/DOM), it is the ideal choice for high-speed 100G single-mode deployments in enterprise and carrier-grade optical networking environments.
Intel Part Number
E100GQSFP28LRX
OEM Number
FTLC11154RDPLPL3-IT
Transmission Distance
Up to 10km
Fiber Type
Single-Mode Fiber (SMF)
Operating Temperature
0°C ~ 70°C
Transmit Power
+0.5 dBm ~ +4.0 dBm
Receiver Sensitivity
-11.3 dBm
Typical Applications
- 100G Enterprise Campus Backbone Deployment
- 100G Metro Access and Aggregation Networks
- 100G Short-to-Medium Haul Data Center Interconnection (DCI)
- High-Speed 100G Switch/ Router Port Expansion
- Carrier 100G Optical Access Networks
Product Highlights
1. 100G Long-Reach Single-Mode Transmission
- 100GBASE-LR4 IEEE 802.3bm Compliant: Delivers 100Gbps aggregate bandwidth over standard single-mode fiber (SMF)
- CWDM 4-Channel 1310nm Technology: Uses four 1310nm CWDM channels for 4×25Gbps parallel transmission, supporting up to 10km reach on G.652 SMF

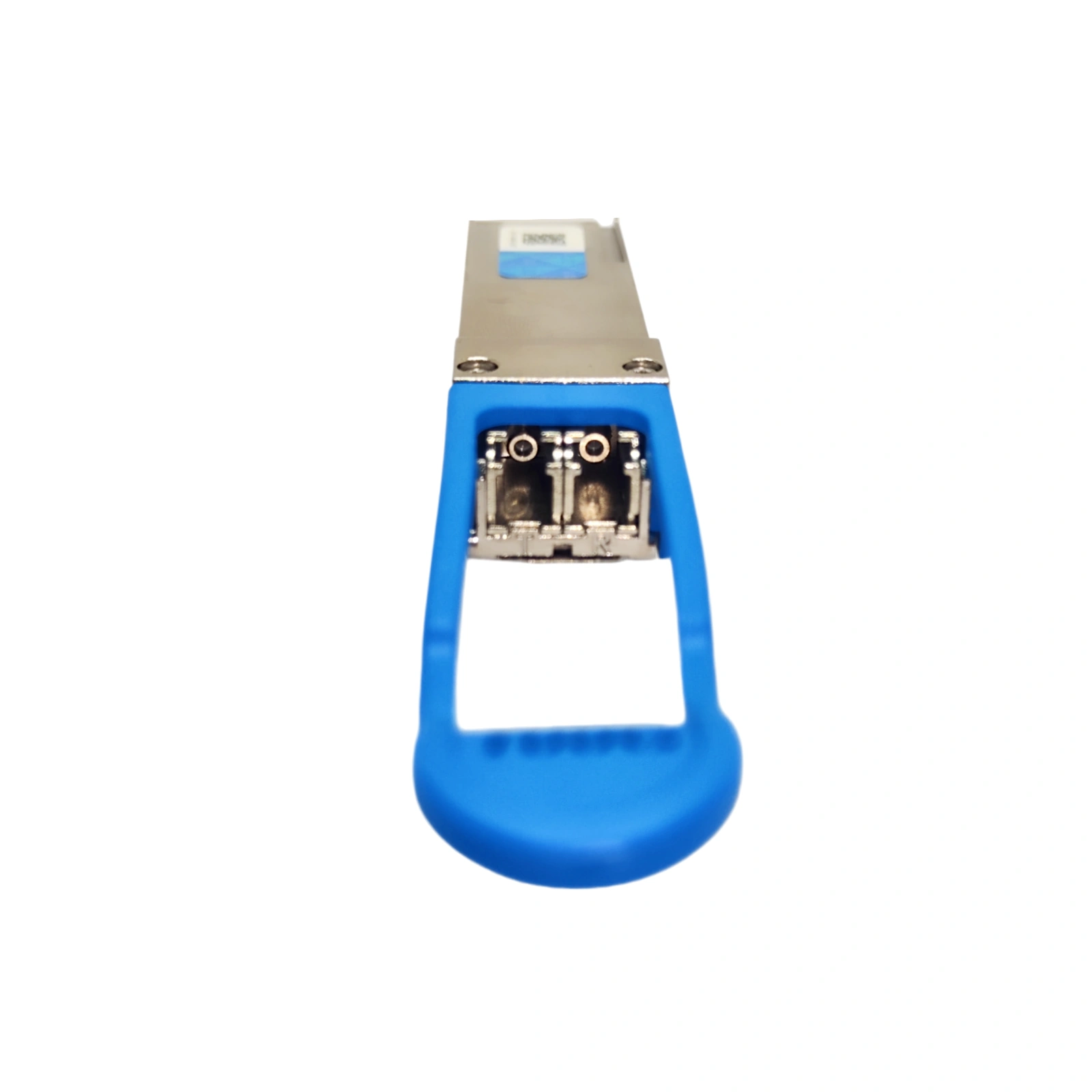

- Duplex LC Interface: Eliminates the need for complex ribbon cables, simplifying deployment in data center and enterprise networks
2. Industry-Standard QSFP28 Form Factor
- QSFP28 MSA-Compliant Package: Hot-pluggable, compact design for maximum port density in high-performance switches and routers

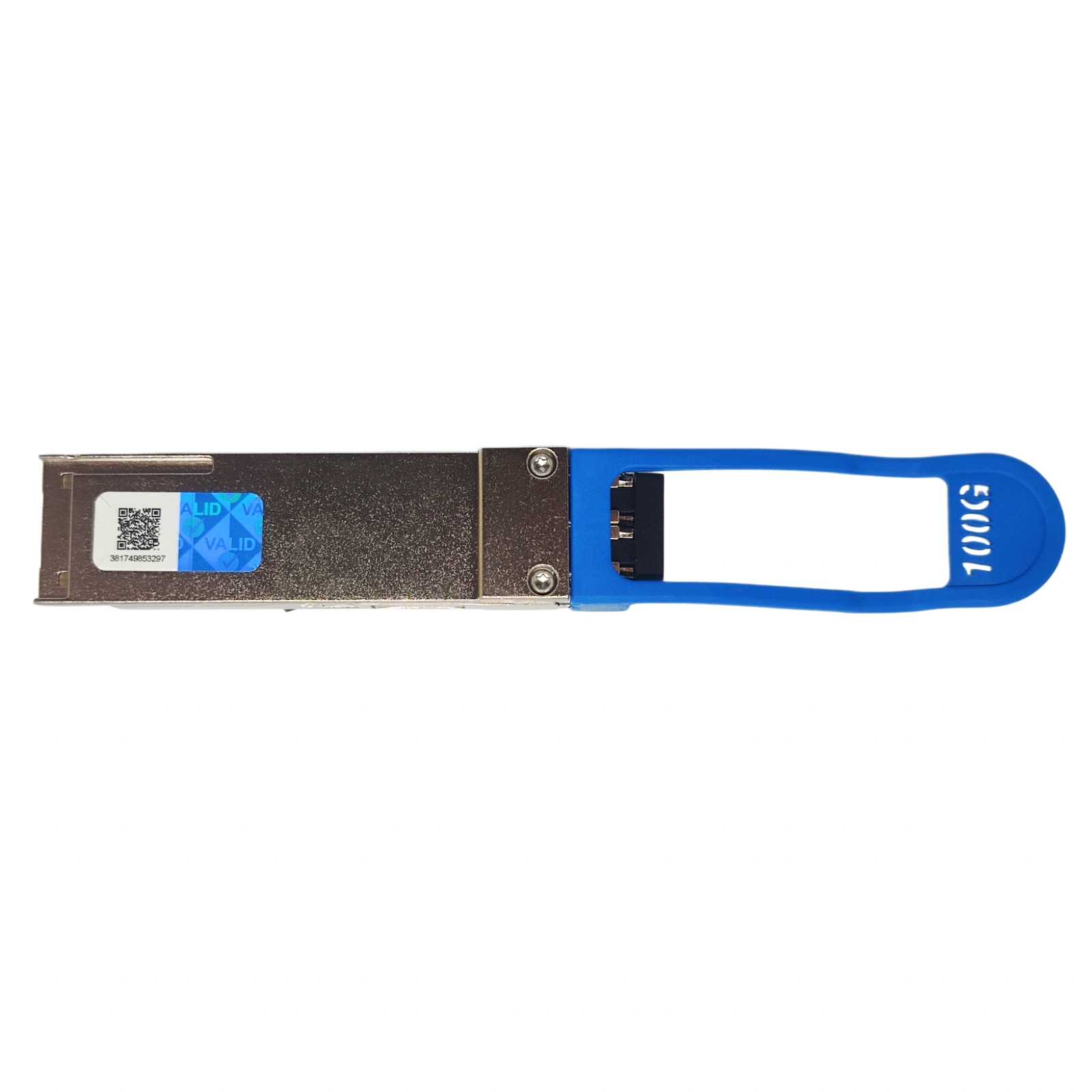

- Blue Pull-Tab: The blue pull-tab is the industry standard visual marker for LR4 short-to-medium reach single-mode modules, distinguishing it from SR4/ER4 variants
- Intel Certified: Seamlessly interoperable with Intel Ethernet adapters, switches and other major vendor hardware
3. Advanced Network Management & Reliability
- Integrated Digital Optical Monitoring (DOM/DMI): Real-time monitoring of transmit power, receive power, temperature, voltage, and laser bias current
- Class 1 Laser Safety Compliant: Meets IEC 60825-1 and RoHS standards for global deployment
- Industrial-Grade Durability: Wide operating temperature range for stable performance in harsh data center environments
