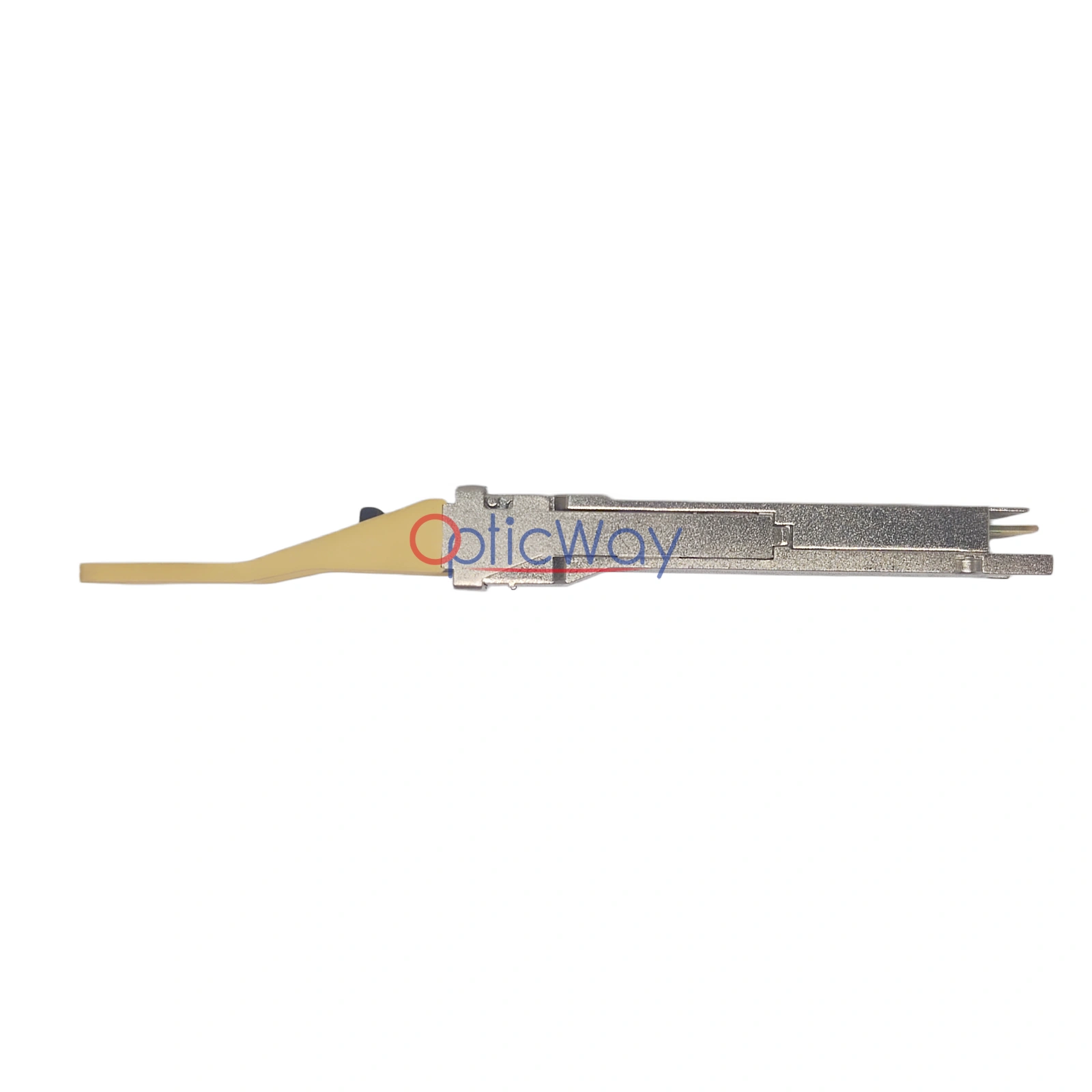

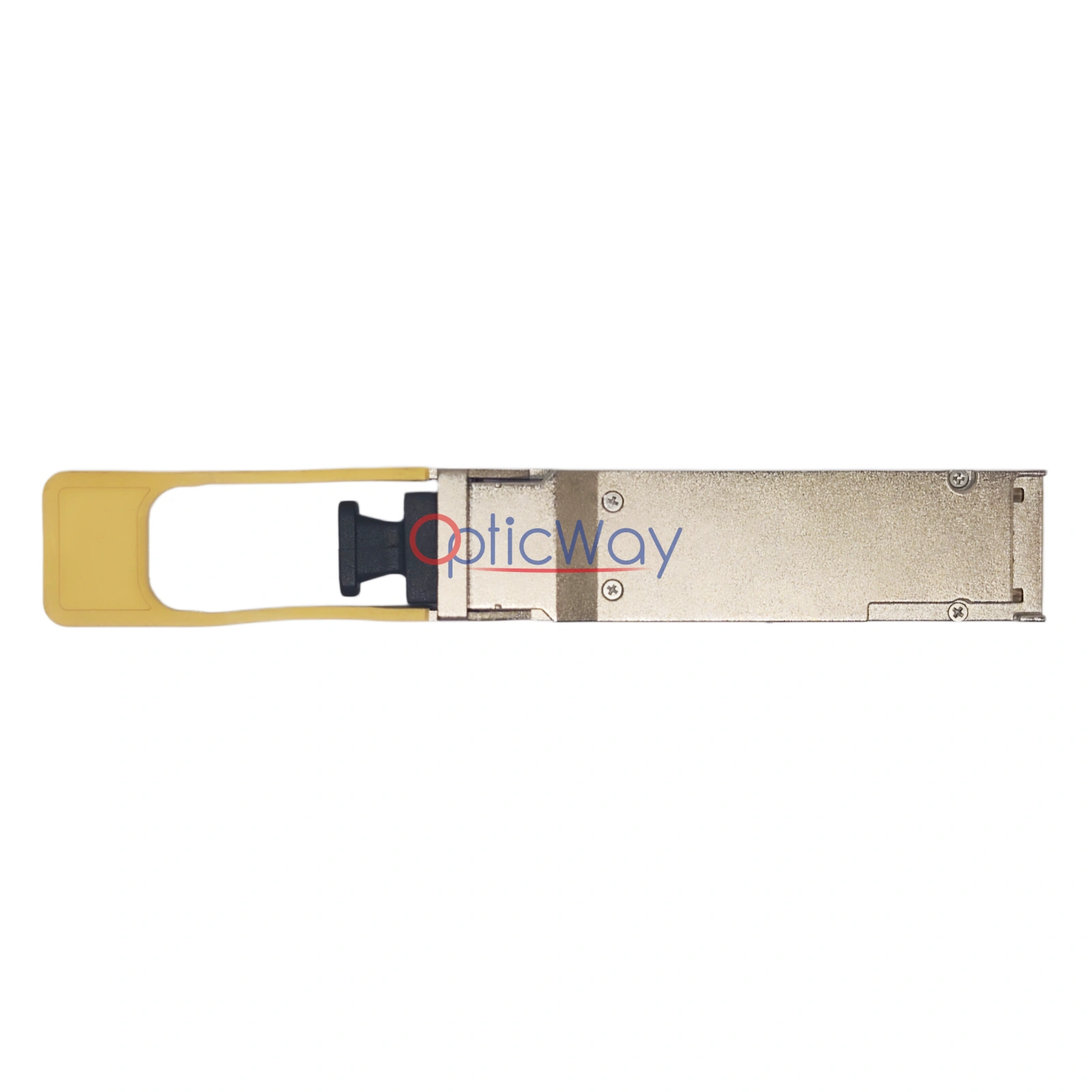

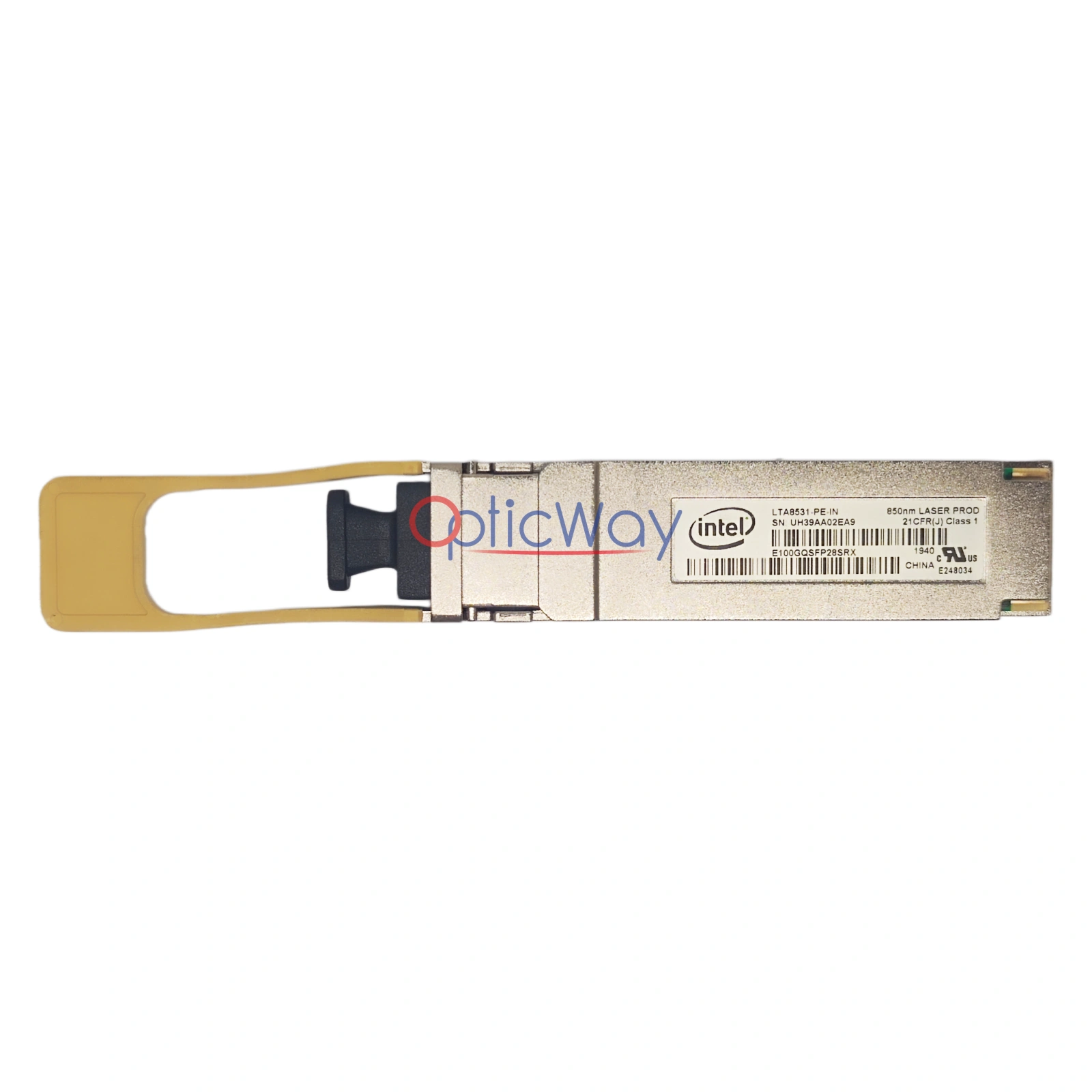

Intel E100GQSFP28SRX QSFP28 100G-SR4 850nm100m OM4 MMF Transceiver LTA8531-PE-IN

The Intel E100GQSFP28SRX (LTA8531-PE-IN) is a high-performance 100GBASE-SR4 QSFP28 optical transceiver, designed for short-reach transmission up to 100m over OM4 multimode fiber. Operating at 850nm, it supports 100Gbps (4×25Gbps) signaling for high-density data center top-of-rack (ToR) switch connections and server links. This module features an MPO-12 connector, full DDM/DOM monitoring, and is optimized for Intel Ethernet adapters and compatible switches

Model Number

100GBASE-SR4 QSFP28

Band

  Intel

Nokia Part Number

E100GQSFP28SRX

Form Factor

  QSFP28

Wavelength

850nm

Transmission Distance

100m

Connector

MPO-12

Fiber Type

  MMF

Data Rate

100Gbps

Standards

IEEE 802.3bm, QSFP28 MSA, Class 1 Laser

Transmit Power

-7.6 dBm ~ +2.4 dBm

Receiver Sensitivity

  -11.1 dBm

Supply Voltage

3.3V DC

Power Consumption

≤ 3.5W

• 100G High-Density Data Center ToR Switch Deployments
• Short-Reach Server-to-Switch 100G Connections
• High-Speed 100G Ethernet Adapter Interconnects
• Intel Ethernet 100G Network Platforms
• 100GBASE-SR4 Standard Compliant Deployments

Product Highlights

• This transceiver fully complies with the IEEE 802.3bm 100GBASE-SR4 standard, delivering stable 100Gbps wire-speed transmission over multi-mode fiber (MMF).
• It operates at a wavelength of 850nm and uses a 4×25G parallel optical architecture, supporting up to 100m over OM4 fiber and up to 70m over OM3 fiber.

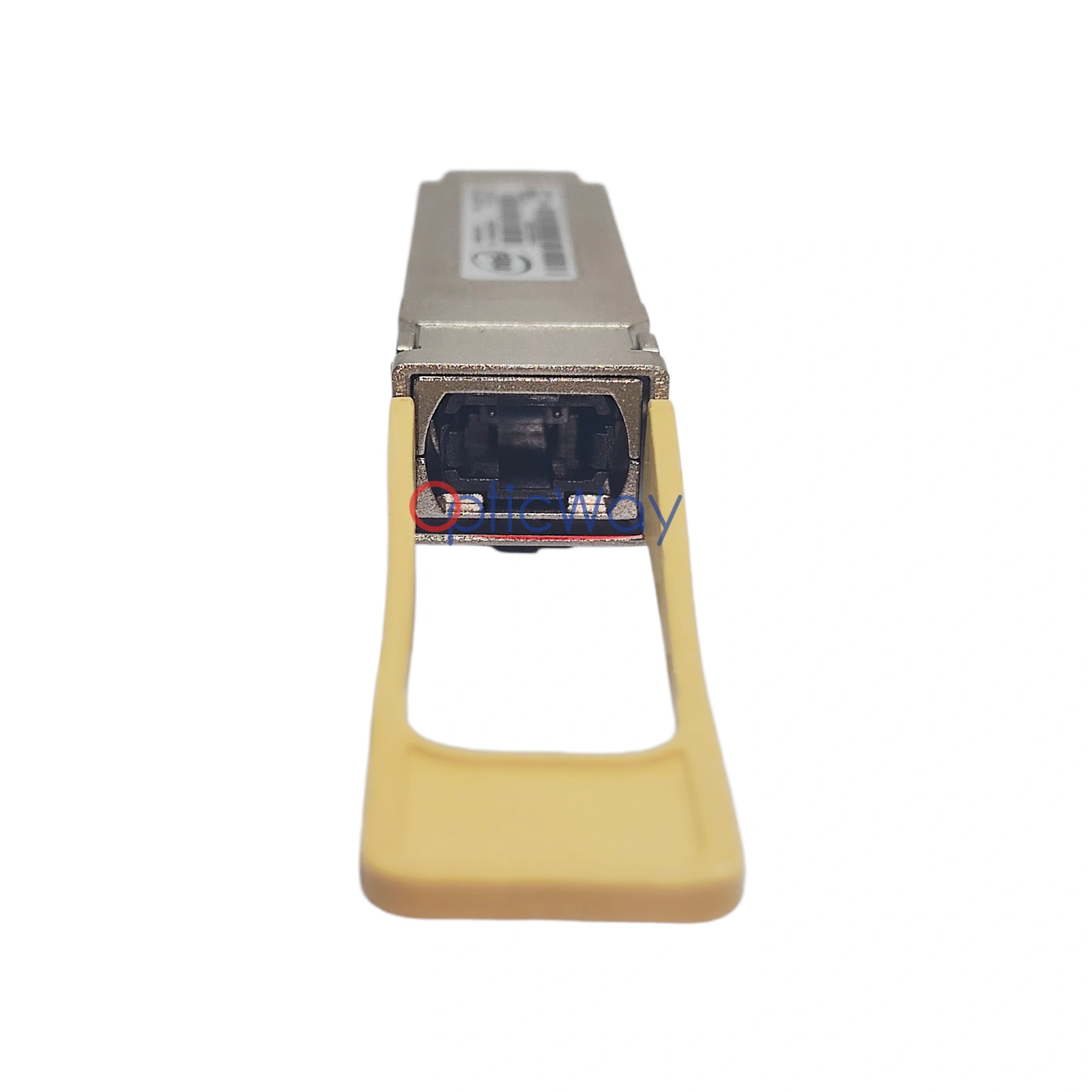

• The parallel optical interface is designed for high-density data center leaf-spine connections, using MPO-12 connectors to simplify multi-fiber ribbon cabling.

2. Standard QSFP28 Package & Broad Compatibility

• It uses the industry-standard QSFP28 (Quad Small Form-factor Pluggable 28) package, which is compact, hot-swappable, and designed for high port density in 100G switches and adapters.
• The module is natively compatible with Intel Ethernet adapters (e.g., XXV710, XL710) and switches, and works with most third-party devices supporting standard QSFP28 transceivers.
• Hot-plug-and-play design allows for easy installation, replacement, and capacity expansion without disrupting network operations.

3. Reliable Performance & Compliance Certification

• Built-in Digital Optical Monitoring (DOM) allows real-time monitoring of key parameters including TX optical power, RX optical power, module temperature, supply voltage, and laser bias current.
• Certified as a Class 1 Laser product under IEC 60825-1 and 21CFR(J), and compliant with RoHS standards, meeting global commercial and data center deployment requirements.
