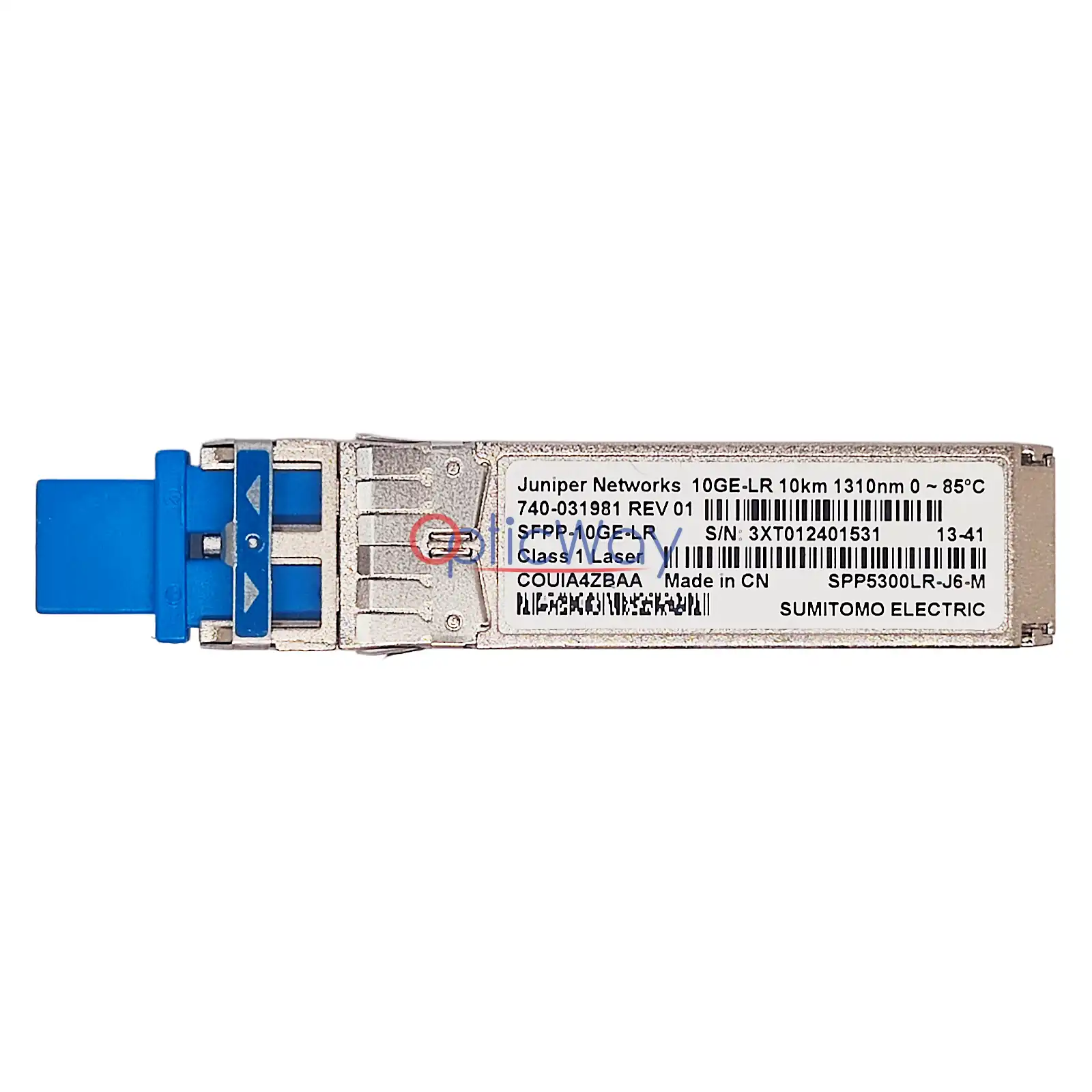

Juniper 740‑031981 SFP+ 10GBASE‑LR transceiver SPP5300LR‑J6‑M extended temperature front label view

Juniper 740‑031981 SFP+ LR 10GBASE‑LR 1310nm 10km SMF Transceiver SPP5300LR‑J6‑M Extended Temperature

US$58.00
Juniper

Product Features

Condition : Genuine and Good condition,in stock.
Hot‑Pluggable SFP+ Form‑Factor : SFF‑8431 MSA compliant hot‑swappable SFP+ form‑factor; enables seamless module replacement without shutting down host equipment.
10GBASE‑LR Standard Compliance : IEEE 802.3ae 10GBASE‑LR compliant, operating at a 1310nm DFB laser wavelength.
Duplex‑LC Single‑Mode Interface : Duplex‑LC optical connector designed for OS2 (G.652) single‑mode fiber deployment (backward compatible with OS1).
10km Defined Transmission Reach : Supports up to 10km transmission over standard single‑mode optical fiber.
Extended‑Temperature Rating : Case operating temperature rated at 0°C to +85°C (Extended Temperature).
DDM Digital Diagnostic Monitoring : SFF‑8472 compliant DDM/DOM support; enables real‑time telemetry for TX/RX optical power, module case temperature, laser bias current, and supply voltage via Junos OS.
Juniper Native SFPP-10GE-LR EEPROM : Pre‑loaded with authentic Sumitomo‑Juniper SFPP-10GE-LR EEPROM firmware for instant, zero-alarm recognition across Juniper EX, QFX, MX, and SRX hardware platforms without manual configuration.
Email Now Chat Us With Whatsapp Chat Us With Teams
Specifications

Juniper 740‑031981 SFP+ 10GBASE‑LR transceiver SPP5300LR‑J6‑M

The Juniper 740‑031981 is a 10GBASE‑LR SFP+ transceiver module, OEM manufactured by Sumitomo Electric (SPP5300LR‑J6‑M). It delivers 10‑Gigabit Ethernet long‑reach optical connectivity over single‑mode fiber at 1310 nm wavelength with duplex LC interface. It features extended‑temperature performance with case operating temperature ranging from 0°C to +85°C. Hot‑pluggable SFP+ MSA form‑factor, pre‑programmed EEPROM enables native recognition on Juniper EX, QFX, MX, SRX platforms. Supports DDM digital diagnostic monitoring for real‑time optical parameter monitoring.

Part Number
740-31981
Band
  Juniper
Model / Product Code
SPP5300LR‑J6‑M
Form Factor
  SFP+
Wavelength
1310 nm
Data Rate
10Gbps
Connector
Duplex LC
Fiber Type
  SMF
Max Transmission Distance
10Km
Laser Class
Class 1 Laser
DDM/DOM
Supported
Supply Voltage
  3.3V
Origin
  Malaysia
Operating Temperature
0°C to 85°C

Typical Applications

✨Enterprise Campus Backbone Uplinks: Connects SFP+ uplink ports on campus access/distribution switches (e.g., EX series) to core layers over OS2 (G.652) single-mode fiber (SMF) up to 10km (backward compatible with OS1).

✨Data Center Inter-Rack & Inter-Building Links: Delivers single-span 10G single-mode fiber connections spanning adjacent data halls, MDF-to-IDF campus closets, or separate buildings up to 10km.

✨Core & Aggregation Networking (MX & QFX Platforms): Pre-programmed with native SFPP-10GE-LR EEPROM code to provide high-density, zero-alarm 10G optical backbone links for MX series line cards (e.g., MIC-3D-10XGE-SFPP, MPCs) and QFX data-center switches (QFX5100, QFX5200).

✨Security Gateway Interconnects & Expansion: Delivers high-bandwidth, secure 10G optical WAN/LAN uplinks for SRX series firewalls (SRX380, SRX1500, SRX4100, SRX4200, SRX4600) with clean syslog recognition.

✨High-Density Hot-Aisle & Elevated-Temp Deployments: Engineered with an extended operating case temperature 0°C to +85°C), making it ideal for fully-populated modular chassis (MX960/480/240, PTX series), hot-aisle racks, and non-climate-controlled remote closets.

✨Carrier Ethernet & MAN Client-Side Hand-Off: Operates as a standard 10GBASE-LR gray optical client interface for OTN/DWDM transponder equipment, supporting 10km point-to-point leased line service hand-offs.
