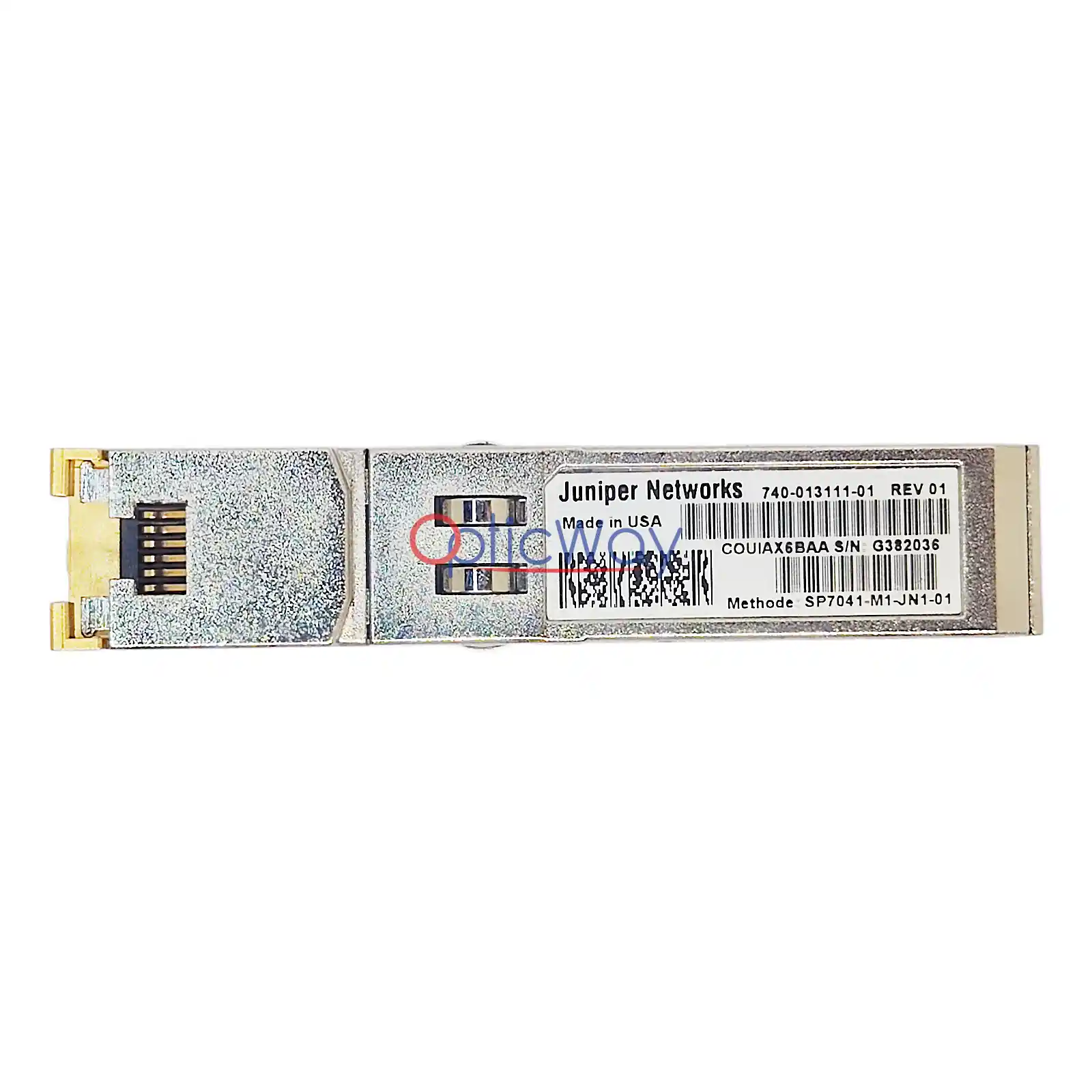

Genuine Juniper Networks 740-013111-01 SP7041-M1-JN1-01 SFP 1000BASE-T 100m RJ45 Copper Transceiver Front Full Label Main View

Juniper Networks 740-013111-01 SP7041-M1-JN1-01 SFP 1000BASE-T 100m RJ45 Copper Transceiver

US$21.00
Juniper

Product Features

Condition : Used ,Good Condition, Good Work，in stock.
Standard Hot-Pluggable SFP Package : Fully compliant with SFP MSA specifications, supporting non-disruptive hot-swapping for seamless service expansion.
IEEE 1000BASE-T Gigabit Standard : Supports 10/100/1000Mbps auto-negotiation (note: 10/100Mbps operation requires host port SGMII interface support; locks to 1000Mbps in 1000BASE-X mode).
Auto-MDI / MDI-X Crossover Detection : Automatically adjusts for straight-through or crossover Ethernet cables, simplifying field deployment.
100m Copper Transmission Reach : Delivers reliable data transmission up to 100 meters over standard Category 5 / 5e / 6 unshielded twisted-pair (UTP) cabling.
Juniper OEM Programmed Firmware : Pre-coded with genuine Juniper firmware (P/N: 740-013111-01 / Methode SP7041-M1-JN1-01) for plug-and-play operation on Juniper EX, QFX, MX, and SRX platforms without compatibility alarms.
Durable Metallic Enclosure : Compact all-metal design provides low EMI emissions and high mechanical durability for enterprise and carrier environments.
Email Now Chat Us With Whatsapp Chat Us With Teams
Specifications

Genuine Juniper Networks 740-013111-01 SP7041-M1-JN1-01 SFP 1000BASE-T 100m RJ45 Copper Transceiver

Juniper SFP Gigabit copper transceiver, part number 740-013111-01 REV 01, Methode OEM model SP7041-M1-JN1-01. Compliant with SFP MSA and IEEE 802.3ab 1000BASE-T standards, adopting an SGMII electrical interface with a built-in RJ45 connector.This transceiver supports auto-negotiation of 10/100/1000Mbps speeds. 10Mbps and 100Mbps operation relies on host port SGMII interface support; if the host port only supports 1000BASE-X mode, the transceiver will lock to 1000Mbps. It achieves a maximum reach of up to 100m over Cat5 / Cat5e unshielded twisted pair (UTP) cables and is equipped with Auto-MDI/MDI-X automatic crossover detection. Featuring a standard hot-pluggable SFP form factor, it is natively compatible with Juniper EX, QFX, MX, and SRX series switches and routers, expanding RJ45 copper ports on standard SFP slots to connect fiber-based network equipment with regular twisted-pair end-devices.

Part Number
740-013111-01
Band
  Juniper
Model / Product Code
SP7041-M1-JN1-01
Form Factor
  SFP
Signal Interface
SGMII
Supported Speed
10/100/1000 Mbps Auto-Negotiate.10/100M operation requires host SGMII support
Connector
RJ45
Cable Type
  Cat5 / Cat5e UTP Twisted Pair
Max Transmission Distance
100m
Compliance Standard
IEEE 802.3ab 1000BASE-T
Supply Voltage
+3.3V
Power
  ≤ 1.0 W
Origin
  USA
Operating Temperature
0°C to 70°C

Typical Applications

✅Juniper EX & QFX Switch Port Expansion: Expands standard RJ-45 Gigabit copper ports on native SFP uplink or access slots of Juniper EX and QFX switches.

✅Multi-Platform Enterprise Handoff: Provides 1000BASE-T copper service handoffs to legacy twisted-pair end-devices via SFP ports on Juniper MX routers and SRX firewalls.

✅Server & Edge Device Connectivity: Connects fiber switch SFP slots directly to RJ-45 servers, workstations, PCs, and IP surveillance cameras (data connectivity only; non-PoE).

✅Out-of-Band (OOB) Management Links: Connects SFP ports to dedicated 1G RJ-45 server management interfaces (e.g., IPMI, iDRAC, iLO) or console servers within data center racks.

✅Legacy Infrastructure & Security Network Renovation: Enables low-cost 1G UTP copper access upgrades for equipment rooms and security monitoring networks without swapping line cards.
