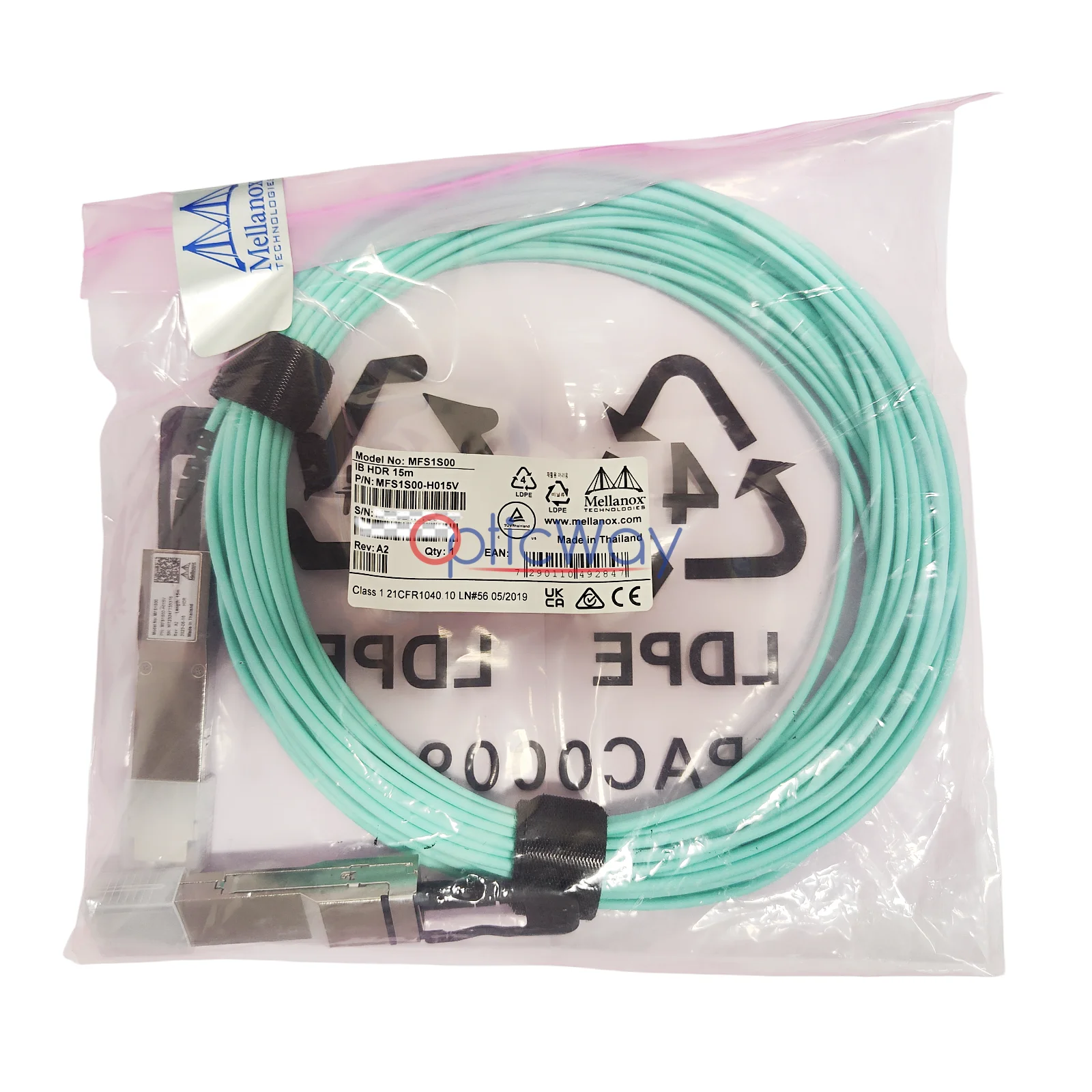

Mellanox MFS1S00-H015V HDR 200Gbps QSFP56 15m Active Optical Cable Full Package View

Mellanox MFS1S00-H015V HDR 200Gbps QSFP56 Active Optical Cable 15m

$320.00
Mellanox

Product Features

HDR 200Gbps Performance : Supports InfiniBand HDR signaling at 200Gbps (4×50Gbps) over 15 meters of OM4 multimode fiber.
QSFP56 Connectors : Industry-standard form factor for seamless integration with Mellanox/NVIDIA HDR switches and adapters.
Low Latency & High Reliability : Active optical design ensures stable signal integrity with minimal latency.
OM4 Multimode Fiber : Aqua-colored OM4 fiber for optimized 850nm VCSEL-based transmission.
Plug-and-Play : No external power required, easy deployment in standard data center environments.
Email Now Chat Us With Whatsapp Chat Us With Teams
Specifications
Mellanox MFS1S00-H015V HDR 200Gbps QSFP56 Active Optical Cable 15m

The Mellanox MFS1S00-H015V is a complete, factory-terminated 200Gbps HDR InfiniBand/Ethernet Active Optical Cable (AOC). It comes with two integrated QSFP56 transceivers (one at each end), eliminating the need for separate optical modules. Designed for 15-meter multimode fiber (OM4) connections, it supports HDR 200Gbps (4×50Gbps) signaling for high-density data center fabrics. This cable is optimized for Mellanox/NVIDIA Spectrum switches and InfiniBand adapters, offering low-latency, reliable connectivity out of the box.

Mellanox Part Number
MFS1S00-H015V
Band
Huawei
Type
Active Optical Cable (AOC)
Interface
  QSFP56 x 2
Speed
200Gbps
Fiber Type
OM4 Multimode Fiber (Aqua)
Length
15 meters
Wavelength
  850nm
Max Power Consumption
≤ 2.5W (per cable)
Standards
InfiniBand HDR, IEEE 802.3bj, RoHS, CE, UKCA

Typical Applications

Product Highlights

  • HDR InfiniBand Technology: Delivers 200Gbps HDR InfiniBand bandwidth, ideal for high-performance computing (HPC), AI/ML, and data center clusters requiring low-latency, high-throughput interconnects.
  • Active Optical Cable (AOC) Design: Features embedded optical transceivers at both ends, eliminating the need for separate modules. The lightweight, flexible OM4 multimode fiber cable supports longer distances than copper DACs while maintaining signal integrity.
  • QSFP56 Form Factor: Uses the standard QSFP56 connector, compatible with Mellanox Quantum HDR InfiniBand switches, ConnectX-6 adapters, and other HDR-enabled devices.
  • Low Power & Reliability: Optimized for low power consumption (typically < 2.5W total), reducing operational costs. Compliant with Class 1 laser safety standards (IEC 60825-1, 21CFR 1040.10) and RoHS directives.
