Mellanox MMS1W50-HM 200G-FR4 QSFP56 IB HDR 2km 1310nm SMF Transceiver

Mellanox MMS1W50-HM 200G-FR4 QSFP56 IB HDR 2km 1310nm SMF Transceiver

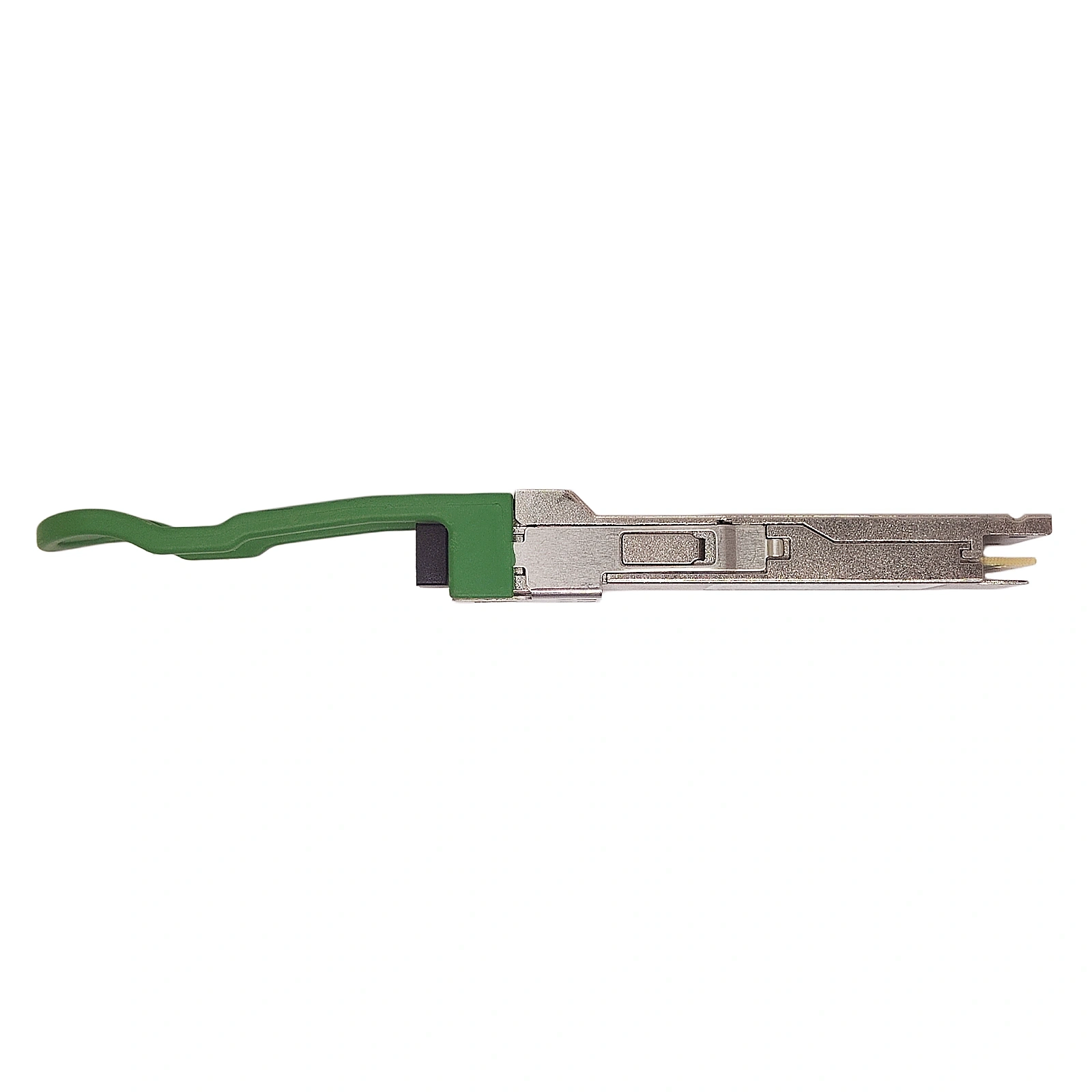

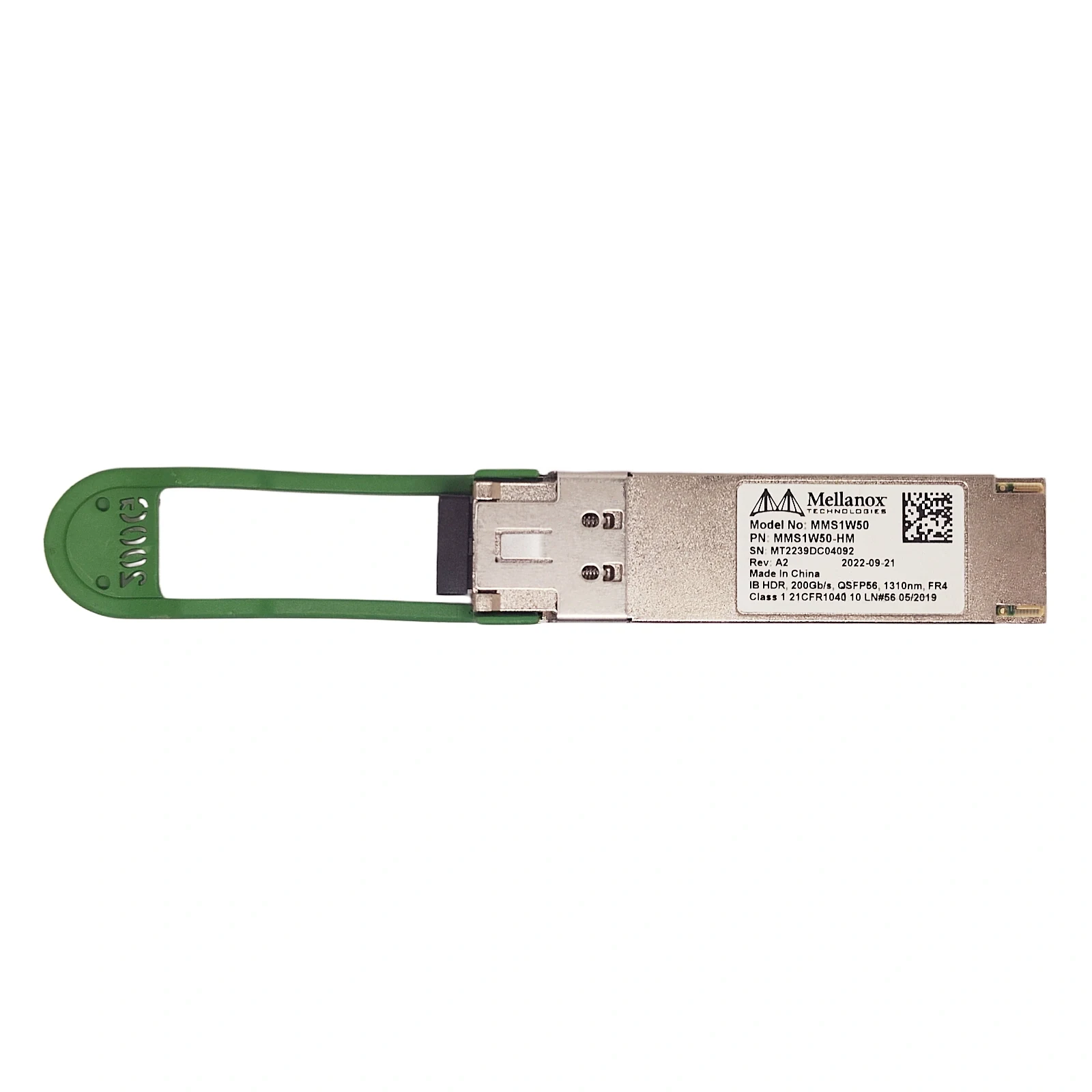

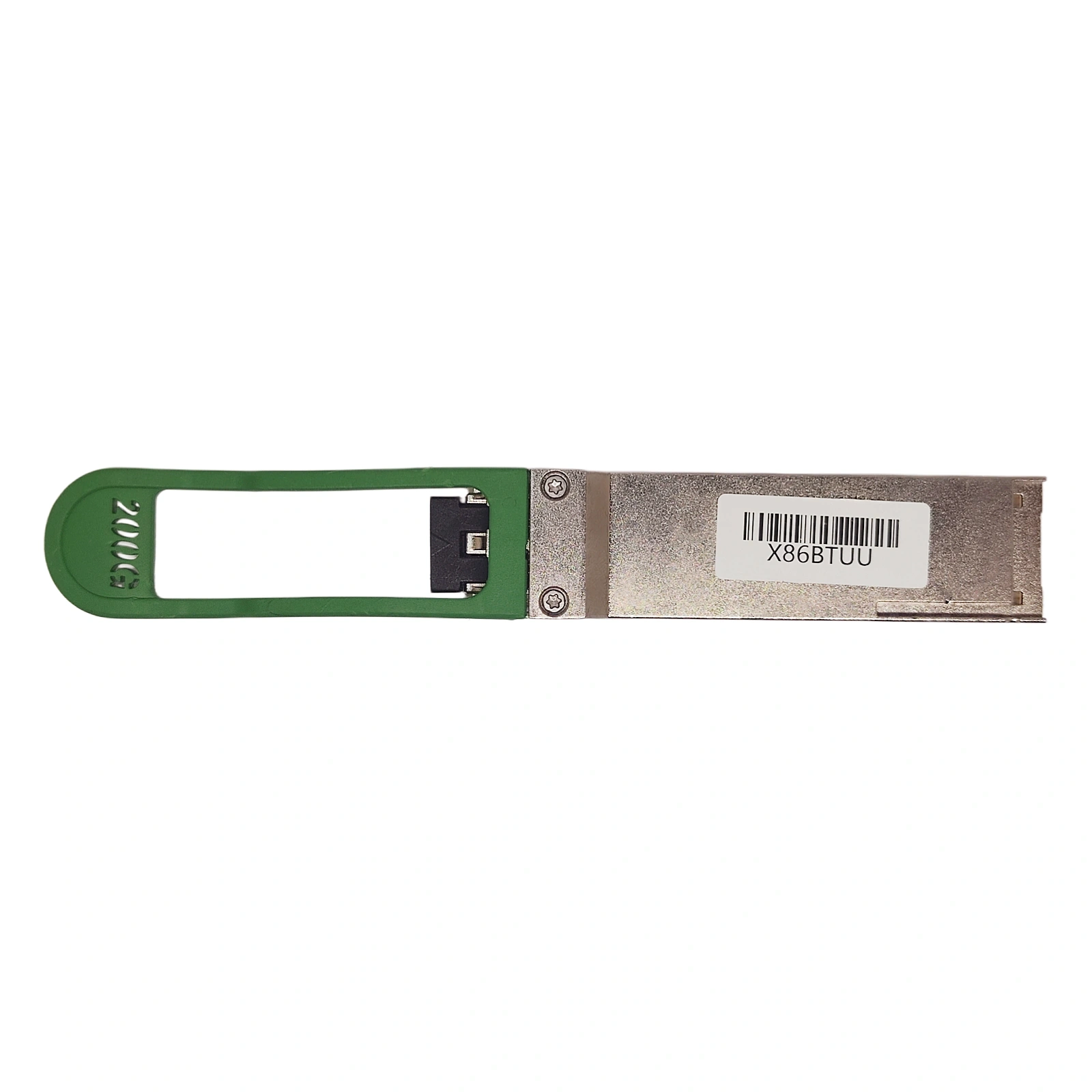

The Mellanox (NVIDIA) MMS1W50-HM is a high-performance 200GBASE-FR4 / HDR InfiniBand optical transceiver in a QSFP56 form factor. Designed for high-performance computing (HPC) and data center environments, it supports 200Gb/s (4×50G PAM4) transmission over single-mode fiber at 1310nm, with a reach of up to 2 km. This module is certified for NVIDIA HDR InfiniBand systems and compliant with the IEEE 802.3cd 200GBASE-FR4 standard, featuring a duplex LC connector and full DDM/DOM monitoring.

Mellanox Part Number

  MMS1W50-HM

Band

  Mellanox

Product Model

200G HDR FR4

Form Factor

  QSFP56

Wavelength

1310nm

Transmission Distance

2km

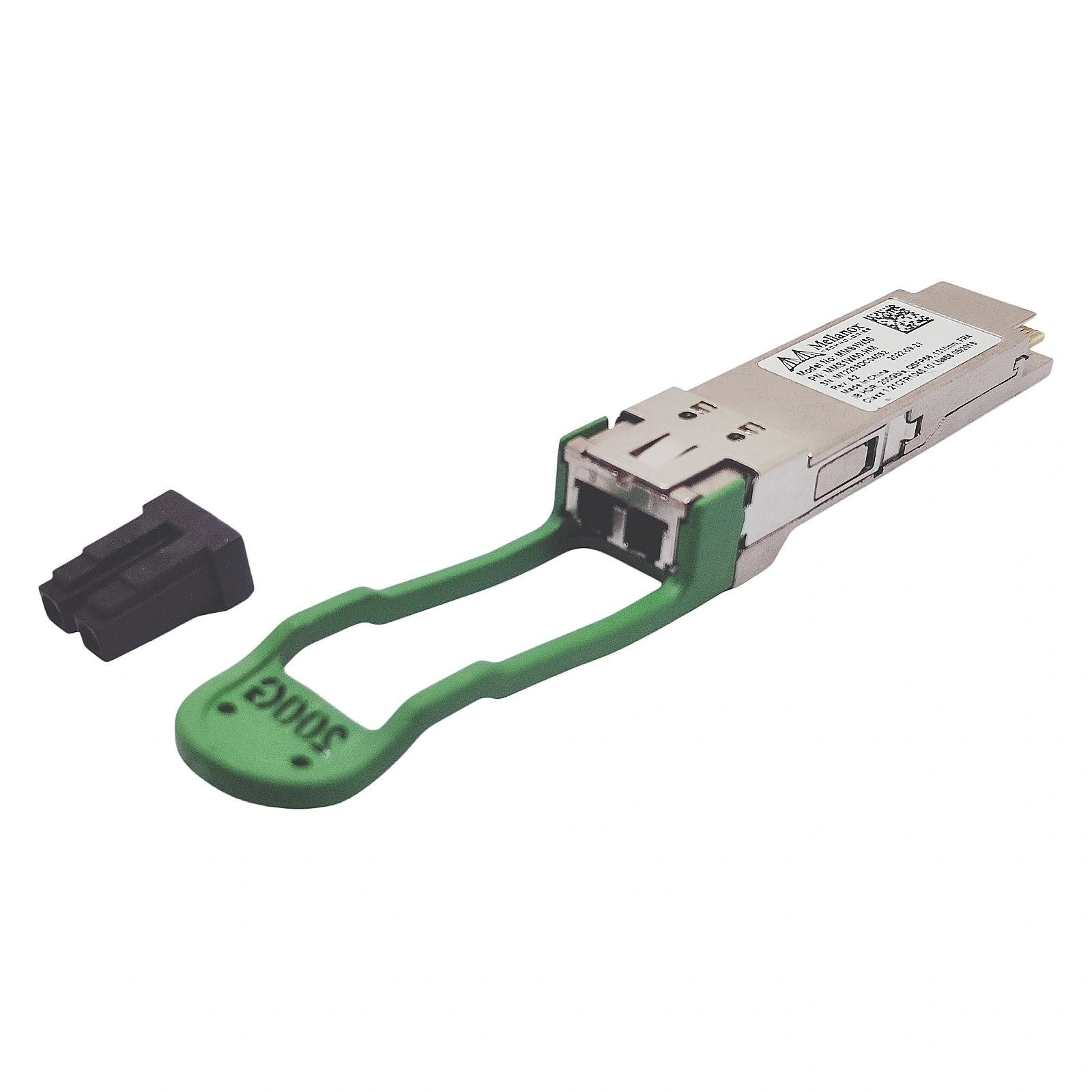

Connector

Duplex LC

Fiber Type

  SMF

Data Rate

200Gbps

Standards

IEEE 802.3cd, InfiniBand HDR, QSFP56 MSA, Class 1 Laser

Transmit Power

-4.0 ~ -2.0 dBm

Receiver Sensitivity

  -10dBm

Origin

  China

Operating Temperature

  0°C ~ 70°C

• NVIDIA HDR InfiniBand Switch and Adapter Deployments
• High-Performance Computing (HPC) Cluster Interconnections
• Medium-Reach Data Center Interconnect (DCI) Links (2km)
• Enterprise and Cloud Data Center 200G Ethernet Uplinks
• 200GBASE-FR4 Standard Compliant Network Upgrades

Product Highlights

• This transceiver is designed for 200G InfiniBand HDR (High Data Rate) applications, delivering 200Gbps line-rate transmission over single-mode fiber (SMF).
• It operates at 1310nm using the FR4 (4-lane CWDM) architecture, supporting a maximum reach of 2km over standard G.652 single-mode fiber.
• It is optimized for use in Mellanox HDR InfiniBand switches and adapters, ideal for short-to-medium range data center fabric links.

• It uses the industry-standard QSFP56 (200G Quad Small Form-factor Pluggable 56) package, which is compact, hot-swappable, and optimized for high-density HDR InfiniBand equipment.
• It is natively validated for use with Mellanox HDR switches (e.g., Quantum HDR platforms) and compatible adapters.
• The hot-pluggable design allows for easy installation, replacement, and capacity expansion without disrupting network operations.

• Built-in Digital Optical Monitoring (DOM) allows real-time monitoring of key parameters including TX/RX optical power, module temperature, supply voltage, and laser bias current.
• Certified as a Class 1 Laser product under 21CFR1040.10 standards, meeting strict data center safety and performance requirements.
• Manufactured in China, it undergoes rigorous factory testing to ensure stable performance in the commercial temperature range (0°C to 70°C).
