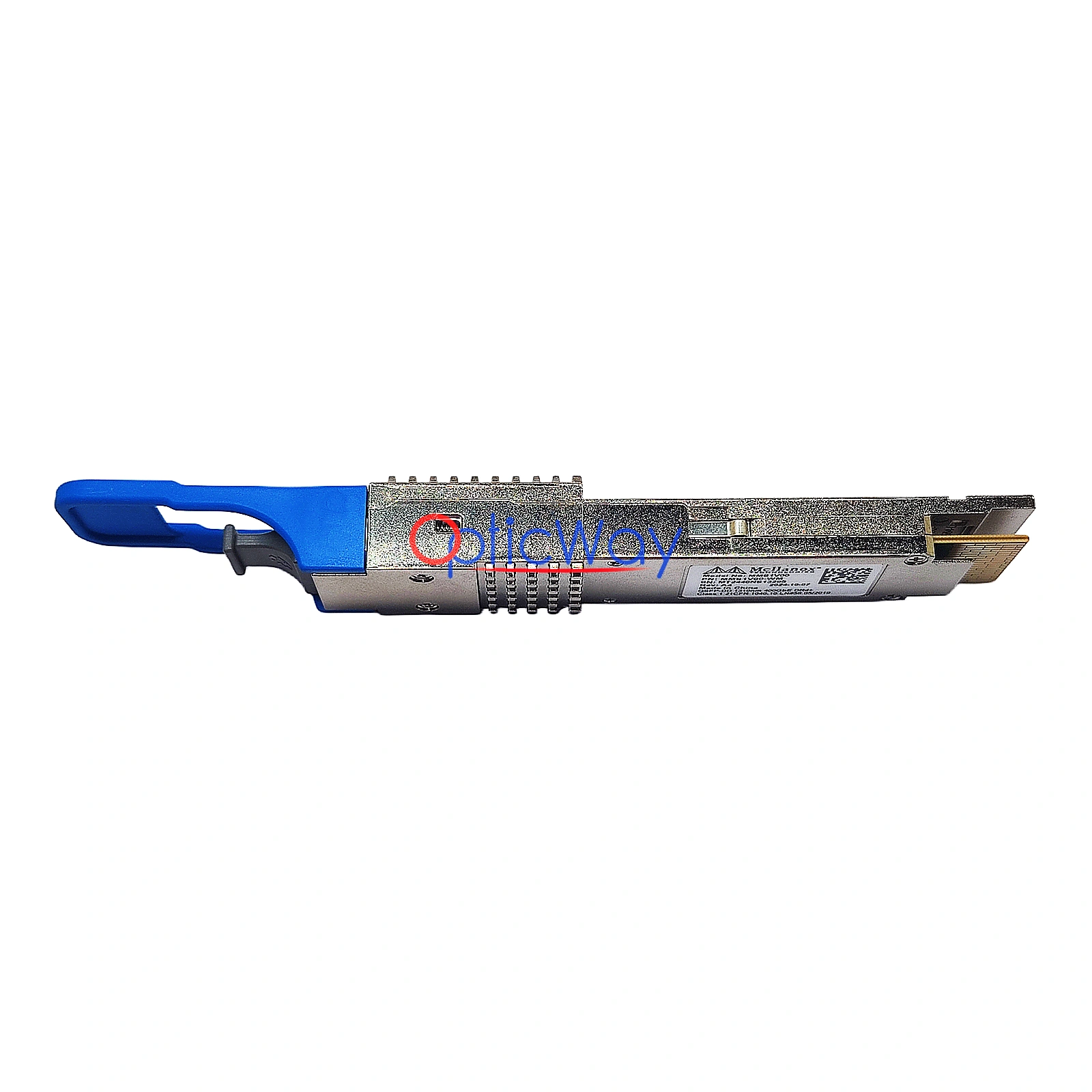

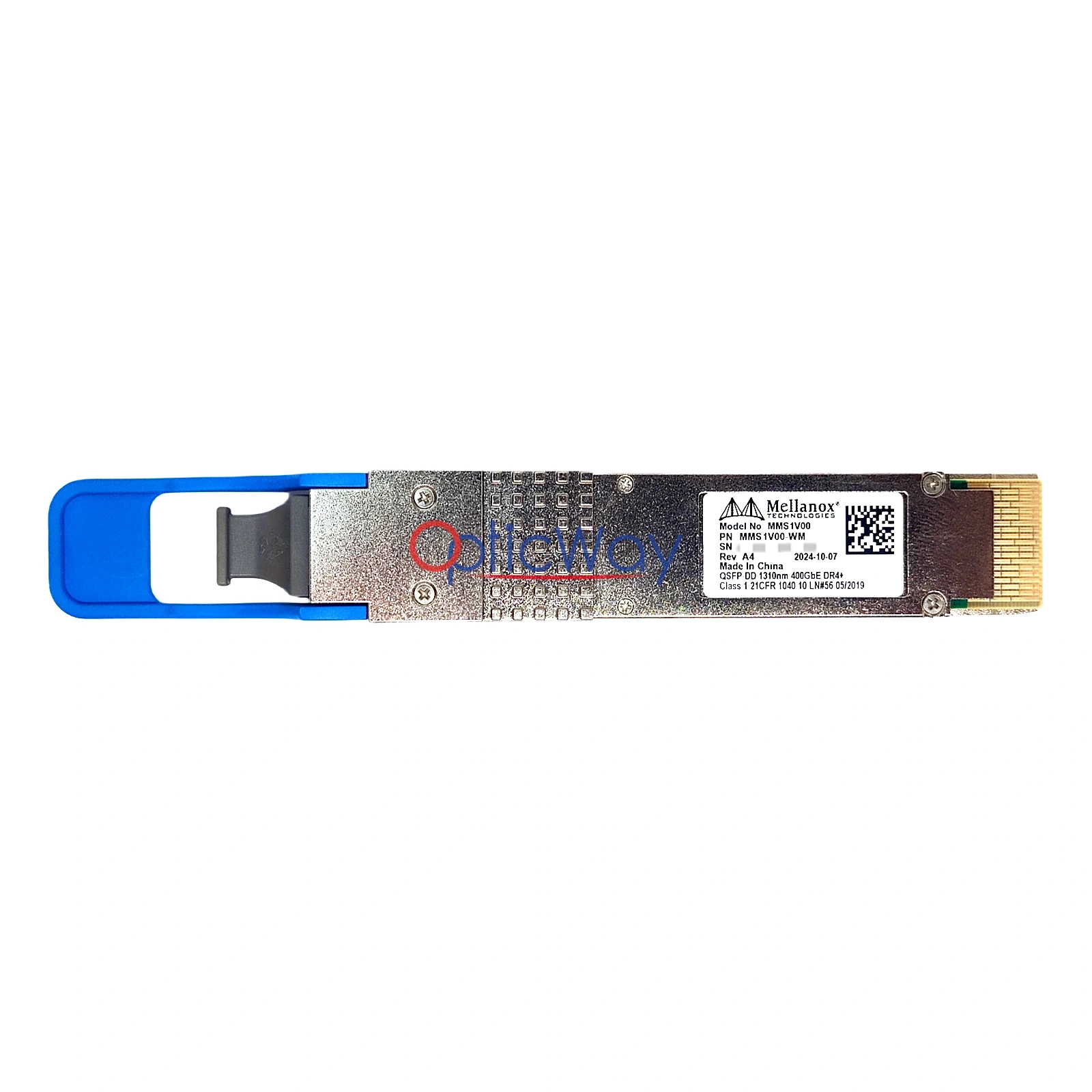

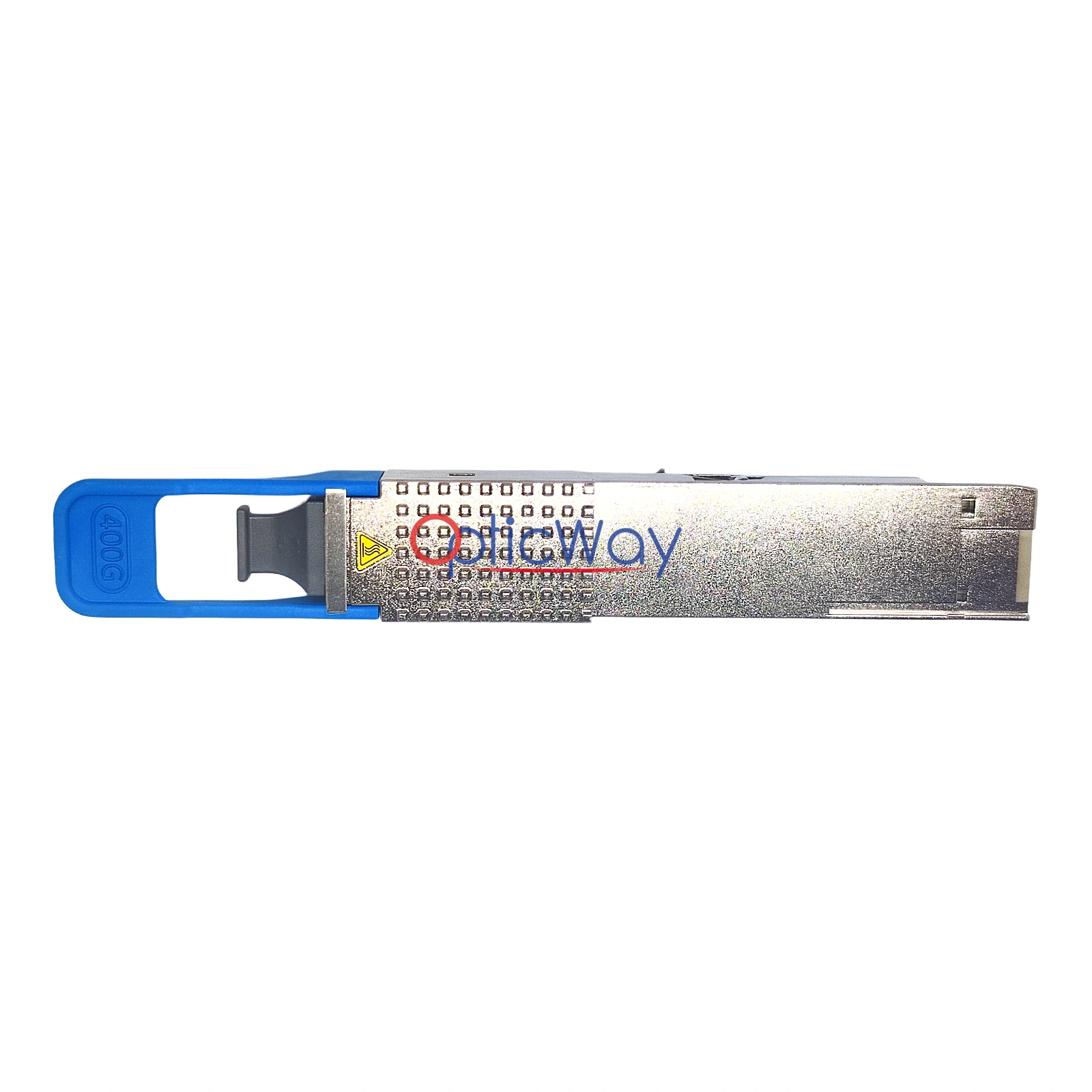

Mellanox MNSS1V00 400GBASE-DR4+ QSFP-DD MNSS1V00-WM 1310nm 500m SMF MPO Transceiver

The Mellanox MNSS1V00 is a high-performance 400GBASE-DR4+ QSFP-DD optical transceiver designed for ultra-short-reach transmission up to 0.5km over single-mode fiber. Featuring 4×100G parallel lanes at 1310nm, optimized optical power budget, and robust multi-lane signal integrity, this module delivers reliable 400G connectivity for high-density data center leaf-spine fabrics, ToR switch links, and short-range 400G server-to-switch connections. Manufactured in China with MPO-12 interface and full digital diagnostic monitoring (DDM/DOM),positioning it as the premier choice for Mellanox switch-based

Model Number

400GBASE-DR4+ QSFP-DD

Band

Mellanox

Mellanox Part Number

MNSS1V00-WM

Form Factor

QSFP-DD

Data Rate

400Gbps）

Transmission Distance

Up to 500m

Fiber Type

Single-Mode Fiber (SMF)

Hot Pluggable

Yes

Wavelength

1310nm

Connector Type

MPT/MPO-12

Operating Temperature

0°C ~ 70°C

Country of Origin

China

Supply Voltage

3.3V DC

Power Consumption

≤ 10W

• 400G High-Density Data Center Leaf-Spine Fabrics
• 400G ToR Switch-to-Leaf-Spine Connections
• 400G Ultra-Short-Reach Server-to-Switch Links
• High-Speed 400G Mellanox Switch/Router Expansion
• 400G Ethernet/InfiniBand Data Center Deployments

Product Highlights

1. 400G Ultra-Short-Reach Parallel Transmission

• Compliant with 400GBASE-DR4 IEEE 802.3bs standard。This module fully complies with the IEEE 802.3bs 400GBASE-DR4 standard, ensuring interoperability with all 400GBASE-DR4 compliant equipment from major vendors. It implements the standard 4×100G parallel architecture for 400Gbps line-rate transmission, delivering the full 400Gbps bandwidth without oversubscription or rate limiting.
• 4×100G parallel lanes, 1310nm wavelength, supporting up to 500m over OM3/OM4 multi-mode fiber (and up to 2km over single-mode fiber with specific cables)。It uses four independent 100Gbps optical lanes operating at a central wavelength of 1310nm. On OM4 multi-mode fiber (MMF), it supports a maximum reach of 500 meters, while on OM3 fiber the reach is limited to 100 meters. When used with single-mode fiber (SMF) and compatible MPO-12 parallel cables, it can achieve up to 2 kilometers of transmission. This flexibility makes it ideal for different rack-to-rack and row-to-row distances within a data center.

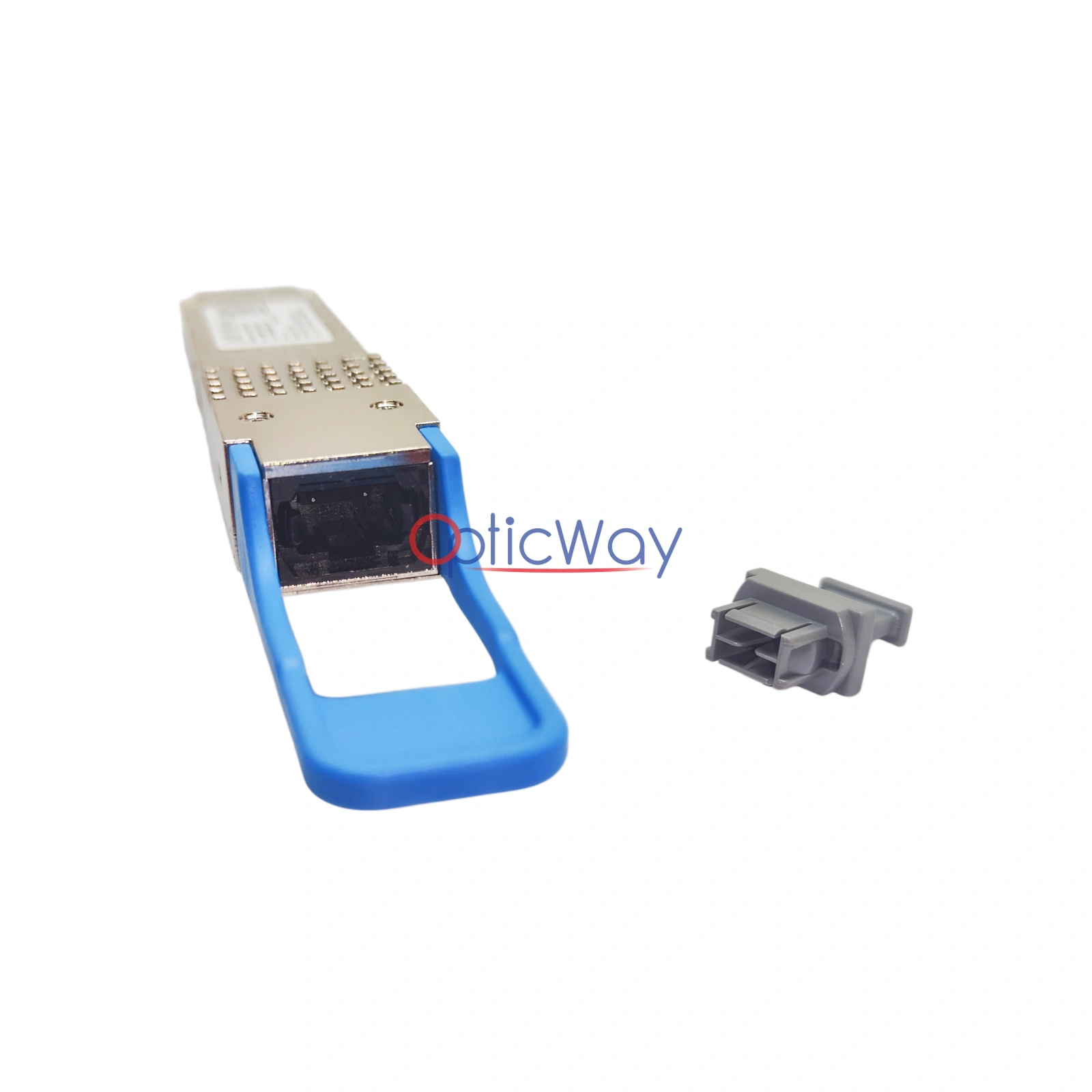

• MPO-12 optical interface (12-fiber parallel connector) designed for high-density data center ribbon cabling。The module features an MPO-12 (12-fiber) parallel interface. This connector is specifically designed for use with multi-fiber ribbon cables, enabling the deployment of high-density, low-cost cabling infrastructure. It eliminates the complexity of managing individual LC connectors, making it the standard for high-volume leaf-spine data center networks.

2. QSFP-DD Form Factor

• Standard QSFP-DD (Double Density) hot-pluggable package, compatible with Mellanox Spectrum-3/Arista/Cisco/CloudEngine 400G switches。The module uses the industry-standard QSFP-DD (Quad Small Form-factor Pluggable Double Density) form factor. This next-generation package doubles the port density compared to traditional QSFP28, allowing network switches to support higher bandwidth per rack unit. It is hot-pluggable, enabling easy installation and replacement without disrupting the entire network. It is fully tested and compatible with NVIDIA Mellanox Spectrum-3, Arista 7060X, Cisco Nexus 9300, and Huawei CloudEngine series 400G switches.
• Optimized for high port density and power efficiency in leaf-spine architectures。Designed specifically for the demands of modern leaf-spine architectures, the QSFP-DD form factor allows for a high number of 400G ports on a single switch. The module itself is optimized for low power consumption, typically operating below 10W, which helps reduce heat generation and power costs in high-density environments. This balance of high bandwidth, high density, and low power is critical for scaling modern data centers.

3. Reliability & Compliance

• Built-in DOM (Digital Optical Monitoring) for real-time TX/RX power, temperature, and voltage monitoring。The transceiver includes a full-featured Digital Optical Monitoring (DOM) interface. This allows the host switch to continuously monitor key operational parameters, including transmit optical power, receive optical power, module temperature, supply voltage, and laser bias current. These real-time metrics enable proactive network maintenance, fault isolation, and performance optimization, reducing downtime.
• Class 1 laser safety compliant (IEC 60825-1, 21CFR 1040.10)。The laser transmitter is certified as a Class 1 laser product under IEC 60825-1 and 21CFR 1040.10 standards. This ensures the module is eye-safe under normal operating conditions, eliminating the need for special safety procedures for installation and maintenance personnel.
• RoHS-6 compliant, industrial-grade reliability。The module is fully compliant with the RoHS-6 directive, restricting the use of hazardous substances. It undergoes rigorous factory testing, including temperature cycling, vibration, and burn-in tests, to ensure industrial-grade reliability and long-term stability in the demanding environment of data centers. It supports a standard commercial operating temperature range of 0°C to 70°C.
