Specifications

Nokia 1AB390930014 SFP+ 10BASE-EW-ER/10FC -40km STM-64/OC192/S-64.2b/IR-2 WOTRC5RTAA

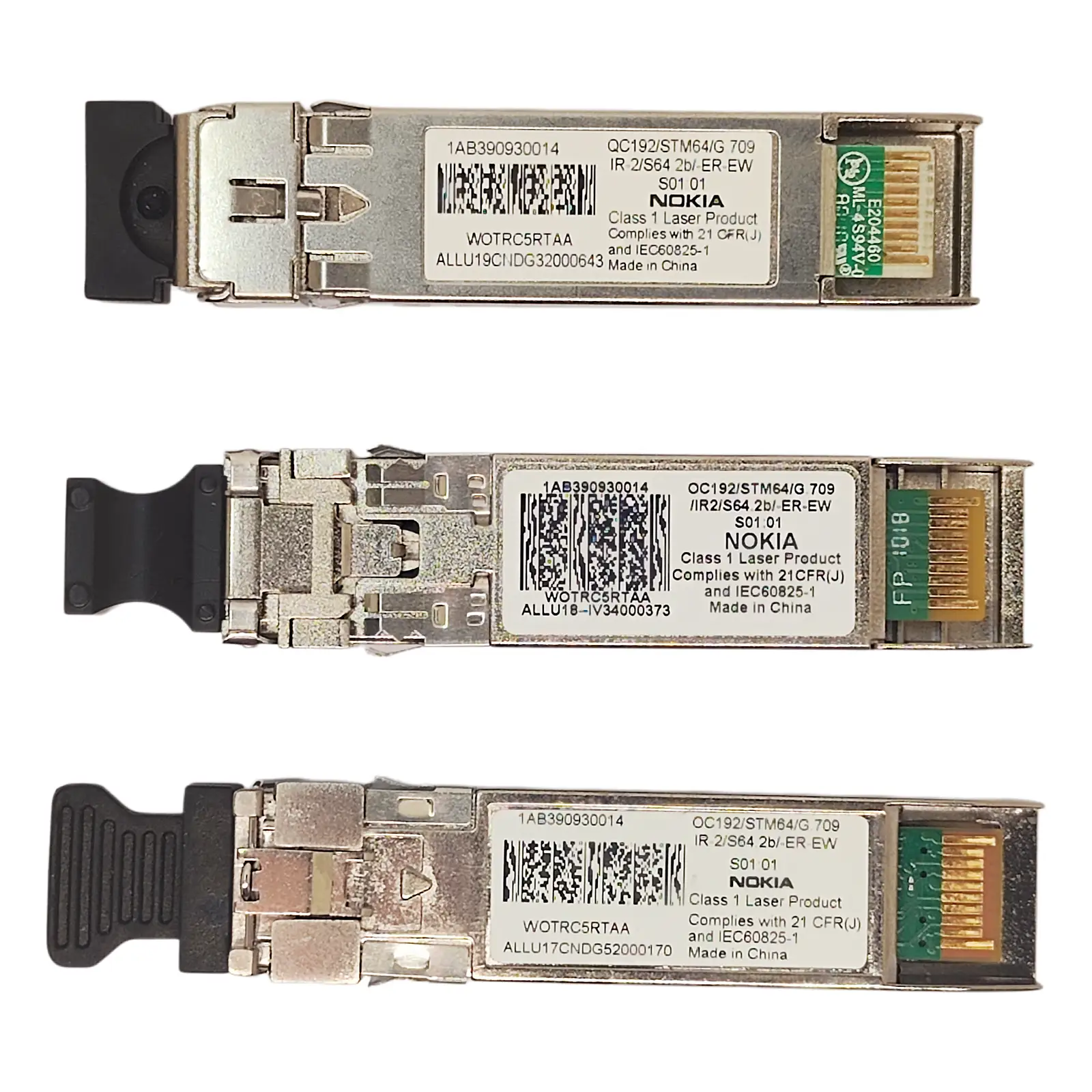

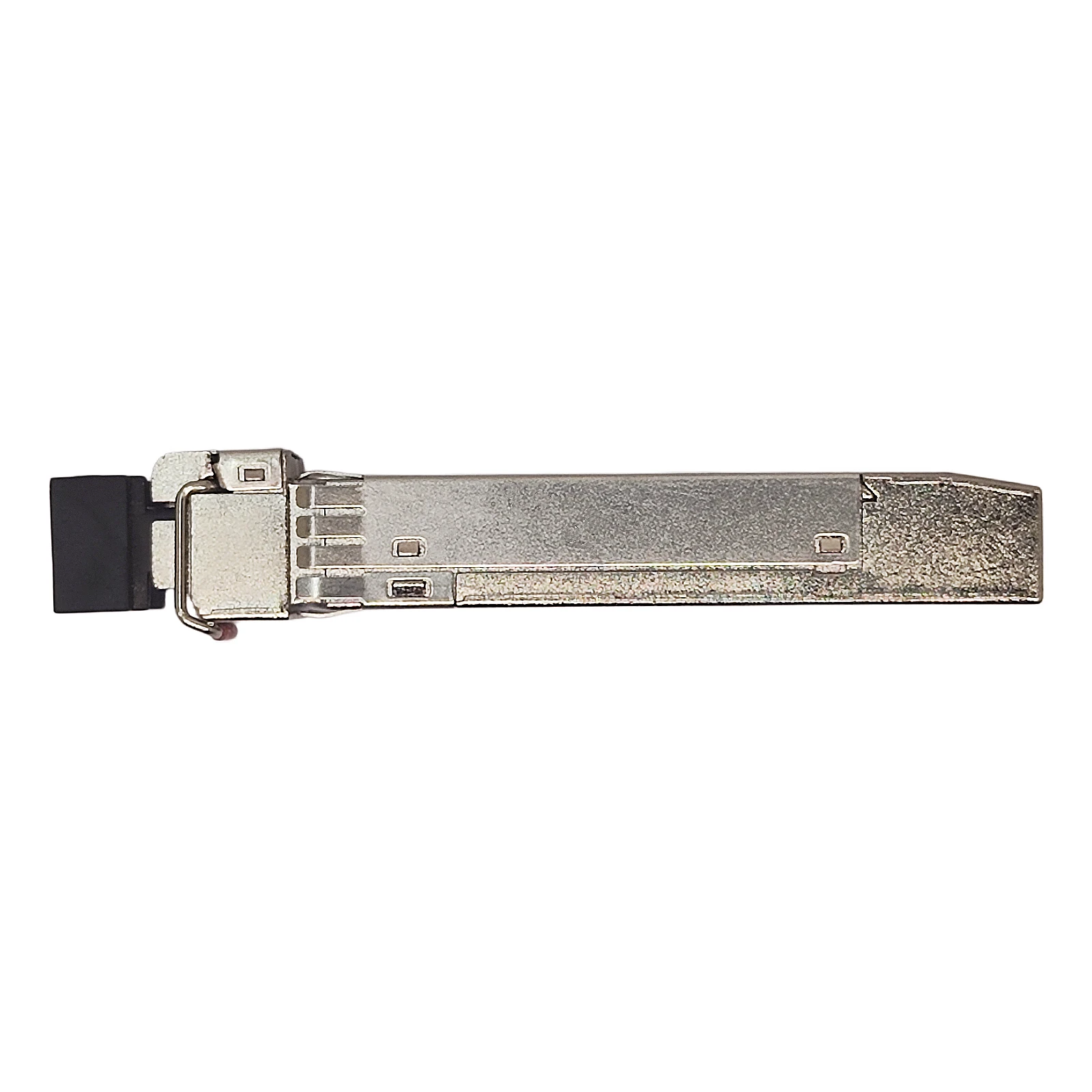

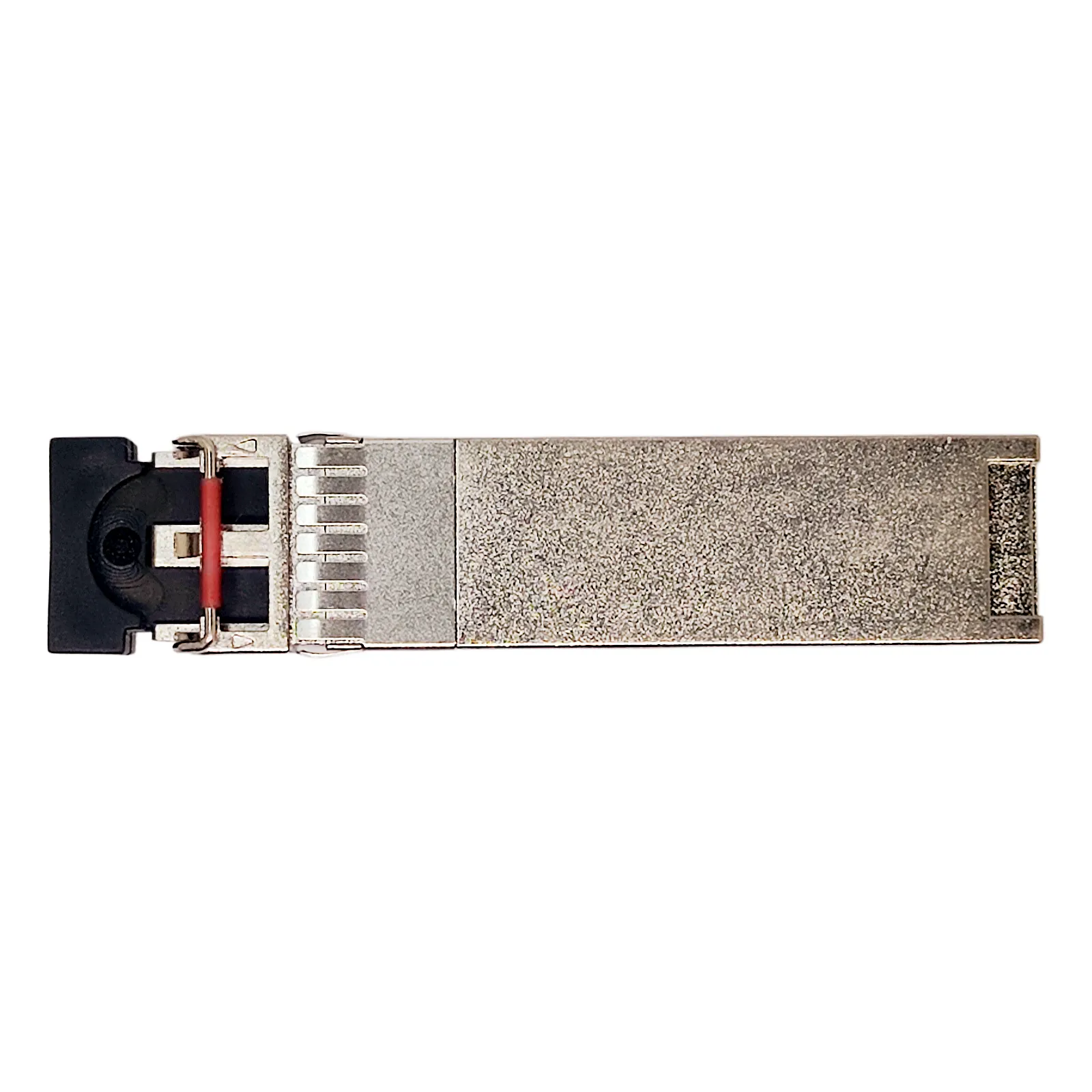

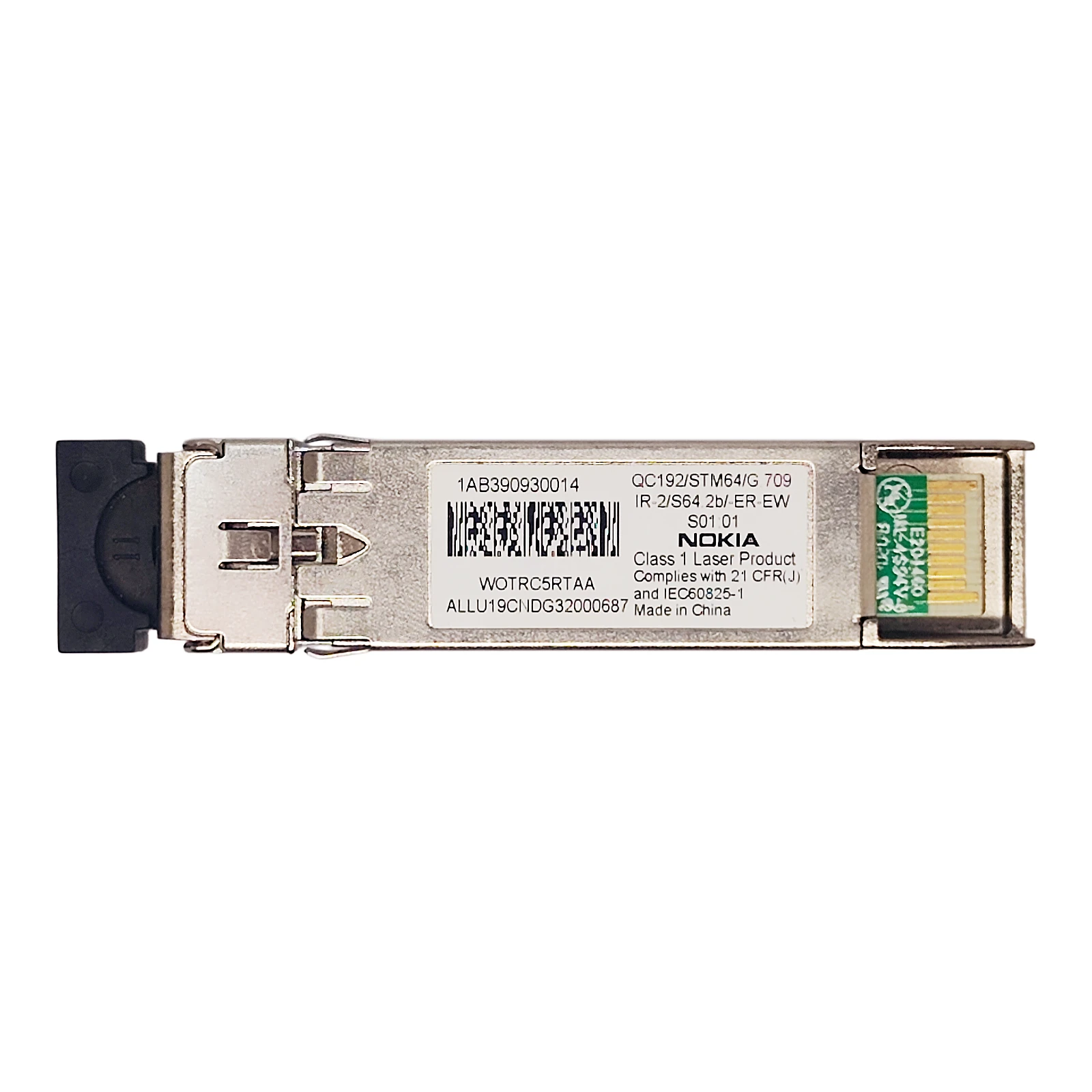

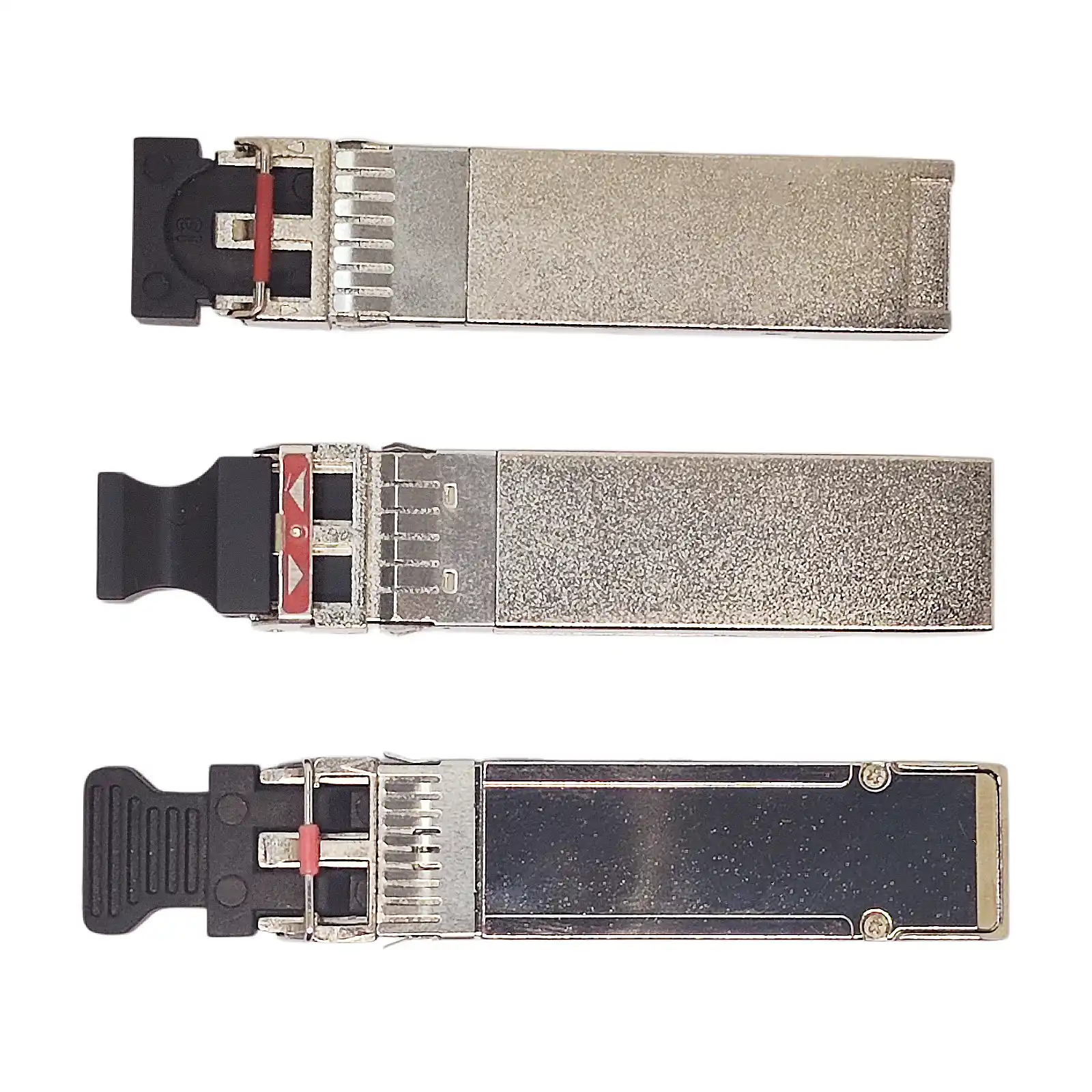

The Nokia 1AB390930014 (WOTRC5RTAA) is a 10G OC192/STM64 ER-EW SFP+ optical transceiver, factory-calibrated for Nokia optical transport platforms. Operating at 1550 nm, it supports OC-192/STM-64 SONET/SDH and 10G Ethernet transmission up to 40 km over single-mode fiber. We supply this model in three different appearances, all versions are 100% fully compatible, identical in function, performance and interoperability. It features a duplex LC connector, full DDM/DOM monitoring, and meets ITU-T and SFP+ MSA standards.

Nokia Part Number

1AB390930014

Band

Nokia

Product Model

10GBASE-ER / STM-64 OC-192 SFP+

Form Factor

SFP+

Wavelength

1550nm

Transmission Distance

50km

Connector

Duplex LC

Fiber Type

SMF

Data Rate

10Gbps

Standards

ITU-T G.709, 10GBASE-ER, STM-64/OC-192

CLEI Code

WOTRC5RTAA

Hot Swappable

Support

Origin

China

Operating Temperature

0°C ~ 70°C

Typical Applications

Nokia OTN and SONET/SDH Core and Edge Platforms
Metro Core and Aggregation Network 10G Long-Reach Links (40km)
Telecom Service Provider Backbone Transport Deployments
10G Ethernet and OC-192/STM-64 Converged Networks
Nokia Network Element Management and Provisioning

Product Highlights

1. 10G ER 40km Long-Haul Transmission

Carrier-grade 10G SFP+ transceiver optimized for long-haul optical transport.
Operates at 1550nm using a high-performance EML laser and PIN receiver, supporting 40km over standard G.652 SMF.
Multi-protocol support: Compliant with IEEE 802.3ae 10GBASE-ER, ITU-T G.691, and ITU-T G.709. Supports 10G Ethernet, STM-64/OC-192 (SONET/SDH), and 10G OTN (OTU2/OTU2e).

2. Standard SFP+ Form Factor & Ecosystem Compatibility

Standard SFP+ package, hot-pluggable for seamless maintenance.
Fully compatible with Nokia/Alcatel-Lucent platforms, including 7750 SR, 7450 ESS, 7950 XRS, and 1830 PSS transport systems.
Supports 2-wire serial interface for advanced management.

3. Reliable Performance & Compliance

Integrated Digital Diagnostic Monitoring (DDM/DOM) per SFF-8472, providing real-time diagnostics for optical power, temperature, and voltage.
Power Consumption: Optimized low power design (< 1.5W typical).
Temperature Grade: Available in Commercial (0 to 70°C) and Industrial (-40 to 85°C) versions to suit different deployment environments.
Safety: Class 1 Laser product (IEC60825-1 / 21CFR), RoHS compliant, and CE/FCC certified.
