Nokia 3HE04823AA SFP+ 10GE LR 10km 1310nm SMF Transceiver

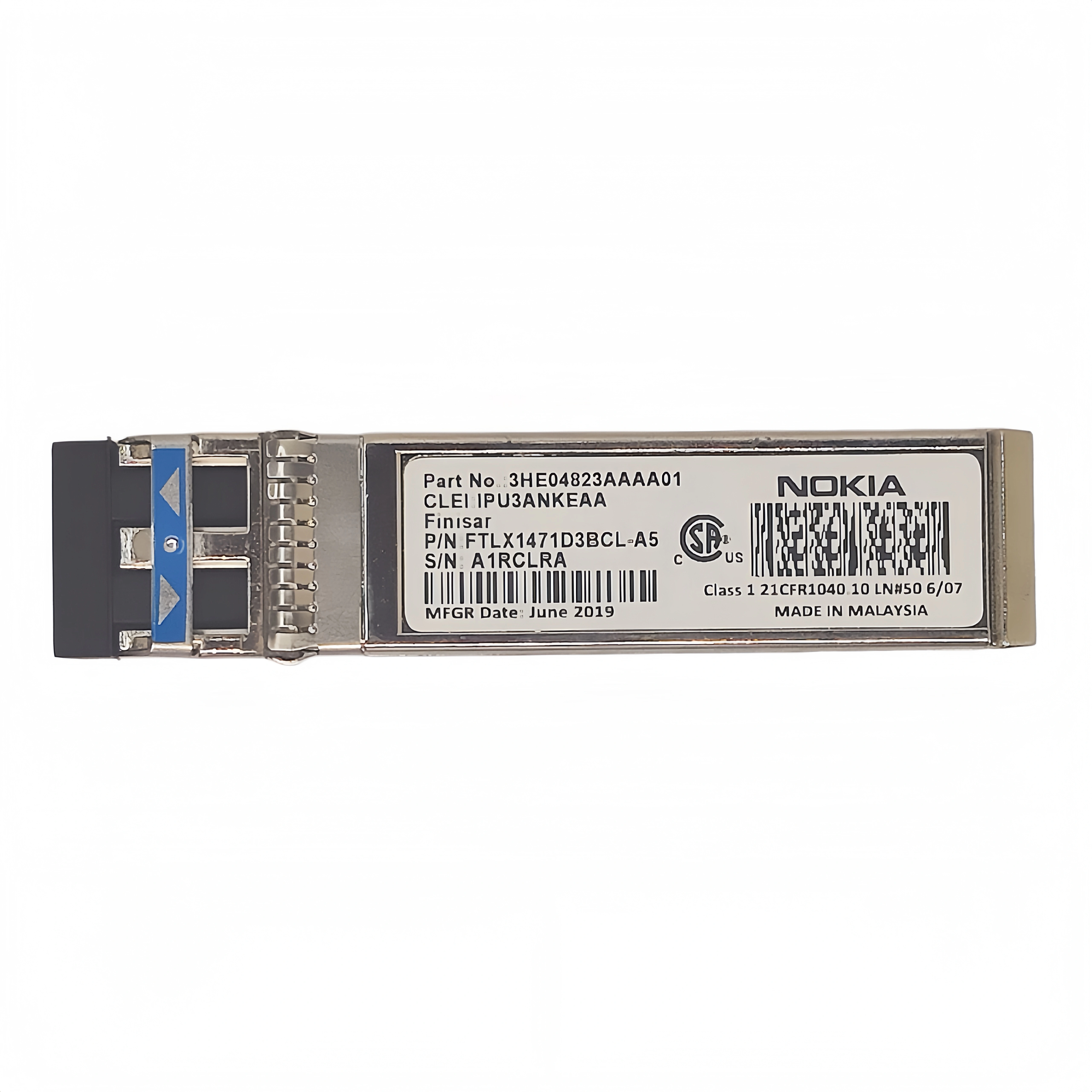

The Nokia 3HE04823AAAAA01 (FTLX1471D3BCL-A5) is a 10GBASE-LR SFP+ optical transceiver, factory-calibrated for Nokia network equipment. Operating at 1310 nm, it supports 10Gbps Ethernet transmission up to 10 km over single-mode fiber. Manufactured by Finisar, it features a duplex LC connector, full DDM/DOM monitoring, and meets IEEE 802.3ae and SFP+ MSA standards. Nokia Part Number
3HE01823AA
OEM Number(Finisar)
FTLX1471D3BCL-A5
Transmission Distance
10km
Standards
IEEE 802.3ae, SFP+ MSA, Class 1 Laser
Transmit Power
-6.0 ~ -1.0 dBm
Receiver Sensitivity
-14.4 dBm
Operating Temperature
0°C ~ 70°C
Typical Applications
- Nokia Router and Switch 10G Uplink Interfaces
- Campus and Metro Core Network 10G Long-Reach Links
- Telecom Service Provider OTN and IP/MPLS Backbone Deployments
- Enterprise Data Center 10G Server and Storage Connections
- 10GBASE-LR Standard Compliant Network Upgrades
Product Highlights
1. High-Speed 10G Long-Reach Single-Mode Transmission
- This transceiver fully complies with the 10GBASE-LR standard, delivering stable 10Gbps line-rate transmission over standard G.652 single-mode fiber (SMF).
- It operates at a wavelength of 1310nm, with optimized signal integrity and low attenuation, supporting a maximum reach of 10km.

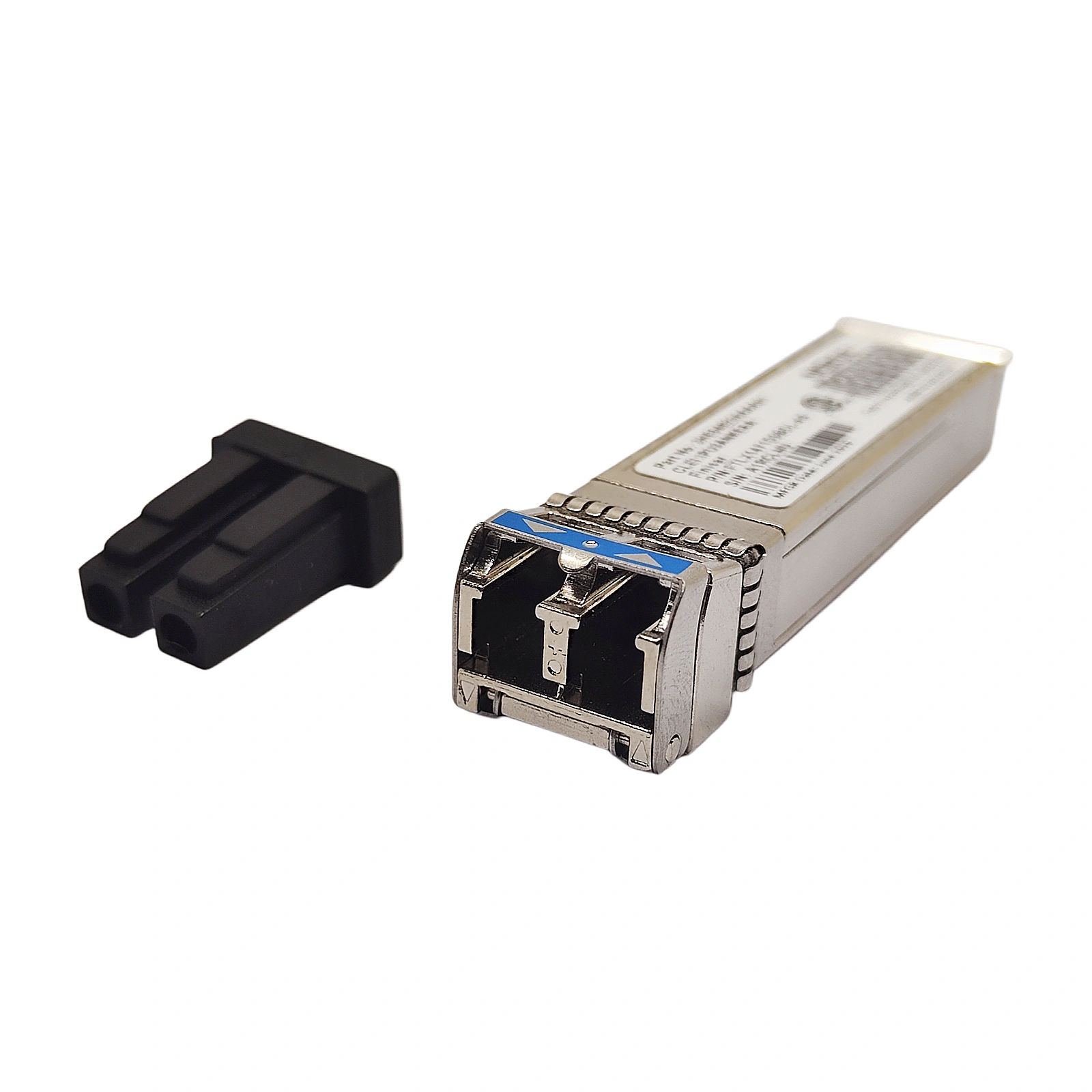

- The duplex LC interface design simplifies cabling, making it ideal for metro core links and long-distance data center interconnections.
2. Standard SFP+ Package & Nokia System Compatibility
- It uses the widely adopted SFP+ (10G Small Form-factor Pluggable Plus) package, which is compact, hot-swappable, and designed for high port density.
- As a Nokia OEM part (manufactured by Finisar), it is natively validated for use with Nokia Alcatel-Lucent 7750 SR and other Nokia network platforms.
- Hot-plug-and-play design allows for easy installation, replacement, and capacity expansion without disrupting network operations.
3. Reliable Performance & Compliance Certification
- Built-in Digital Optical Monitoring (DOM) allows real-time monitoring of key parameters including TX optical power, RX optical power, module temperature, supply voltage, and laser bias current.
- Certified as a Class 1 Laser product under 21CFR1040.10 standards, and compliant with CSA safety requirements, meeting global carrier-grade deployment specifications.
- Manufactured in Malaysia, it undergoes rigorous factory testing to ensure stable performance within the commercial temperature range.
