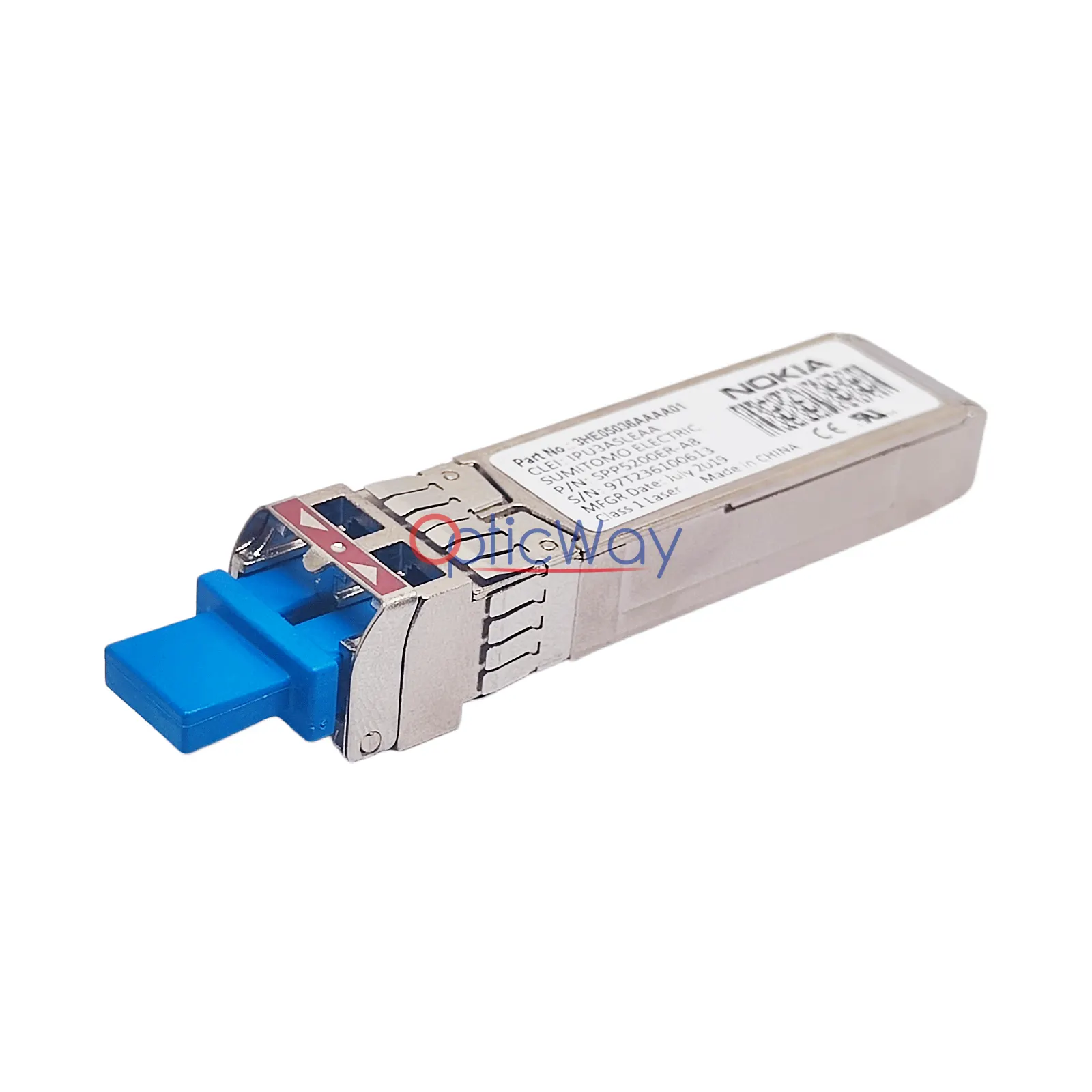

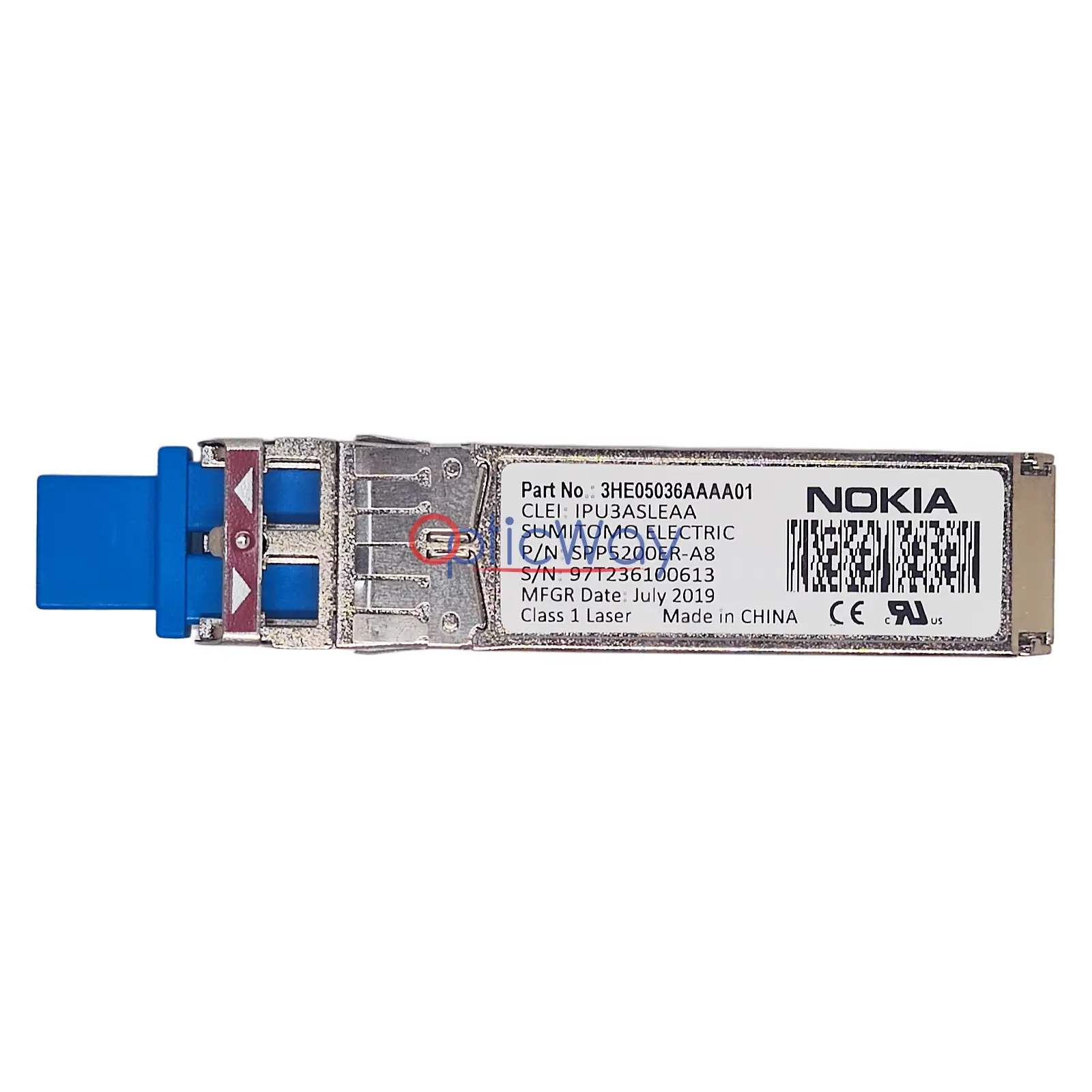

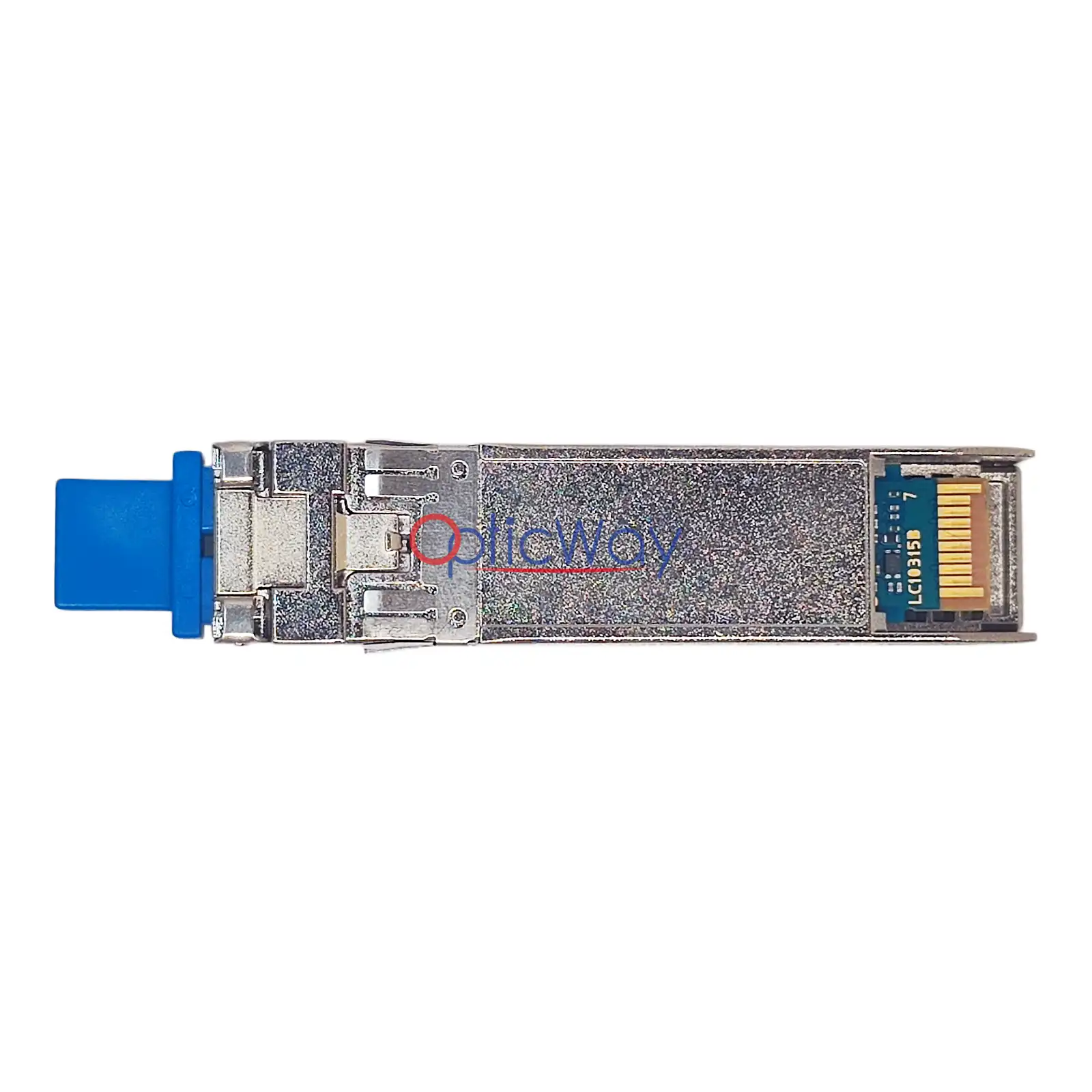

Genuine Nokia 3HE05036AAAA01 Sumitomo SPP5200ER-A8 10G ER SFP+ 1550nm 40km SMF Front Label View

Nokia 3HE05036AAAA01 SFP+ 10G ER 40km 1550nm SMF Optical Transceiver Module

US$88.00
Nokia

Product Features

Condition : Good Work, virtually brand new，in stock.
High-Speed Line Rate : Supports standard 10Gbps operational data rates.
40km Extended Reach : Achieves up to 40km link length on standard Single-Mode Fiber (SMF).
Sumitomo Electric Craftsmanship : Manufactured by the world-renowned Sumitomo Electric, guaranteeing superior optical alignment and minimal jitter.
Hot-Pluggable SFP+ Footprint : Allows seamless installation and maintenance without disrupting the live network host system.
Advanced DDM Support : Features real-time Digital Diagnostic Monitoring for optical power, voltage, temperature, and laser bias current.
Email Now Chat Us With Whatsapp Chat Us With Teams
Specifications

Genuine Nokia 3HE05036AAAA01 Sumitomo SPP5200ER-A8 10G ER SFP+ 1550nm 40km SMF

The Nokia 3HE05036AAA01 is a high-performance 10 Gigabit Ethernet SFP+ optical transceiver designed for long-haul optical transport networks. Manufactured by Sumitomo Electric , this module leverages a 1550nm EML laser and APD receiver to deliver stable 10Gbps connectivity over up to 40km of single-mode fiber (SMF).Ideal for Nokia 7750 SR Service Routers, OSN platforms, and other carrier-class equipment, it features Digital Optical Monitoring (DOM/DDM) for real-time diagnostics and is fully compliant with IEEE 802.3ae 10GBASE-ER, SFF-8431, and SFF-8472.

Part Number
3HE05036AAA01
Band
  Nokia
Model / Product Code
SPP5200ER-A8
Form Factor
  SFP+
Center Frequency
1550nm
Data Rate
10Gbps
Connector
Duplex LC
Fiber Type
  SMF
Max Transmission Distance
40km
CLEI Code
IPU3ASLEAAA
Tx Power
-4 ~ +2.0 dBm
Supply Voltage
  3.3V
Origin
  China
Operating Temperature
0°C to 70°C

Typical Applications

✅10G optical port expansion on Nokia 7750 SR and 7705 SAR service routers

✅Long-distance fiber backhaul links for carrier 4G/5G wireless base stations

✅10G fiber networking for aggregation and backbone layers of metro IP/MPLS bearer networks

✅Cross-region backbone fiber interconnection for large enterprises and campuses

Product Highlights

✨Genuine Nokia module equipped with Sumitomo Electric original optical components, carrier-grade quality with better stability and service life than third-party compatible transceivers

✨Standard 10GBASE-ER 40km long-reach solution, no repeater amplifier required to reduce hardware investment for mobile bearer networks

✨Full DOM remote operation capability, network management system collects real-time link data to quickly troubleshoot fiber attenuation and laser faults

✨Seamless compatibility with Nokia 7750 SR / 7705 SAR router platforms, automatically recognized after power-up without port compatibility alarms

✨Universal standard SFP+ form factor, flexible deployment on all network hardware compliant with SFP+ MSA agreement
