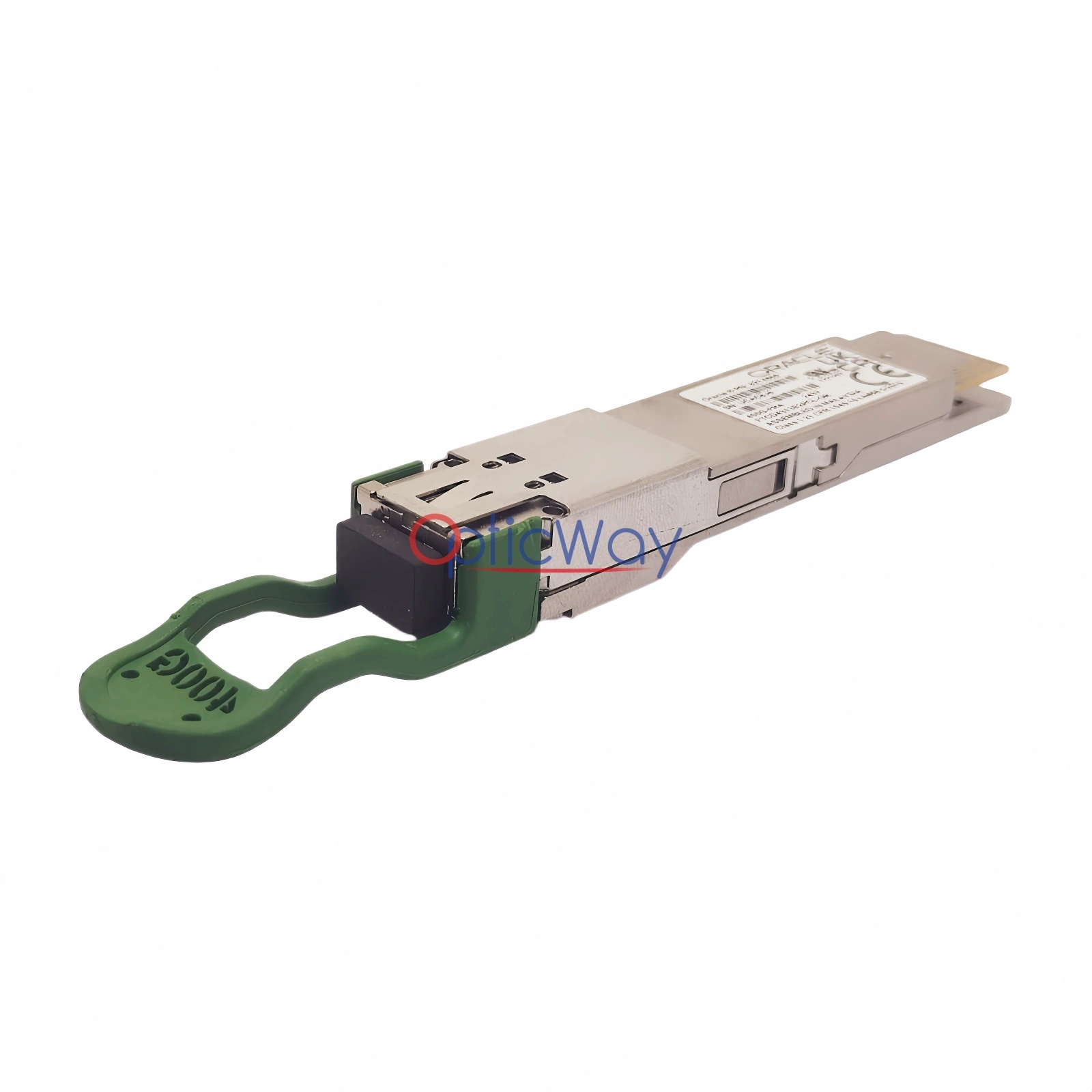

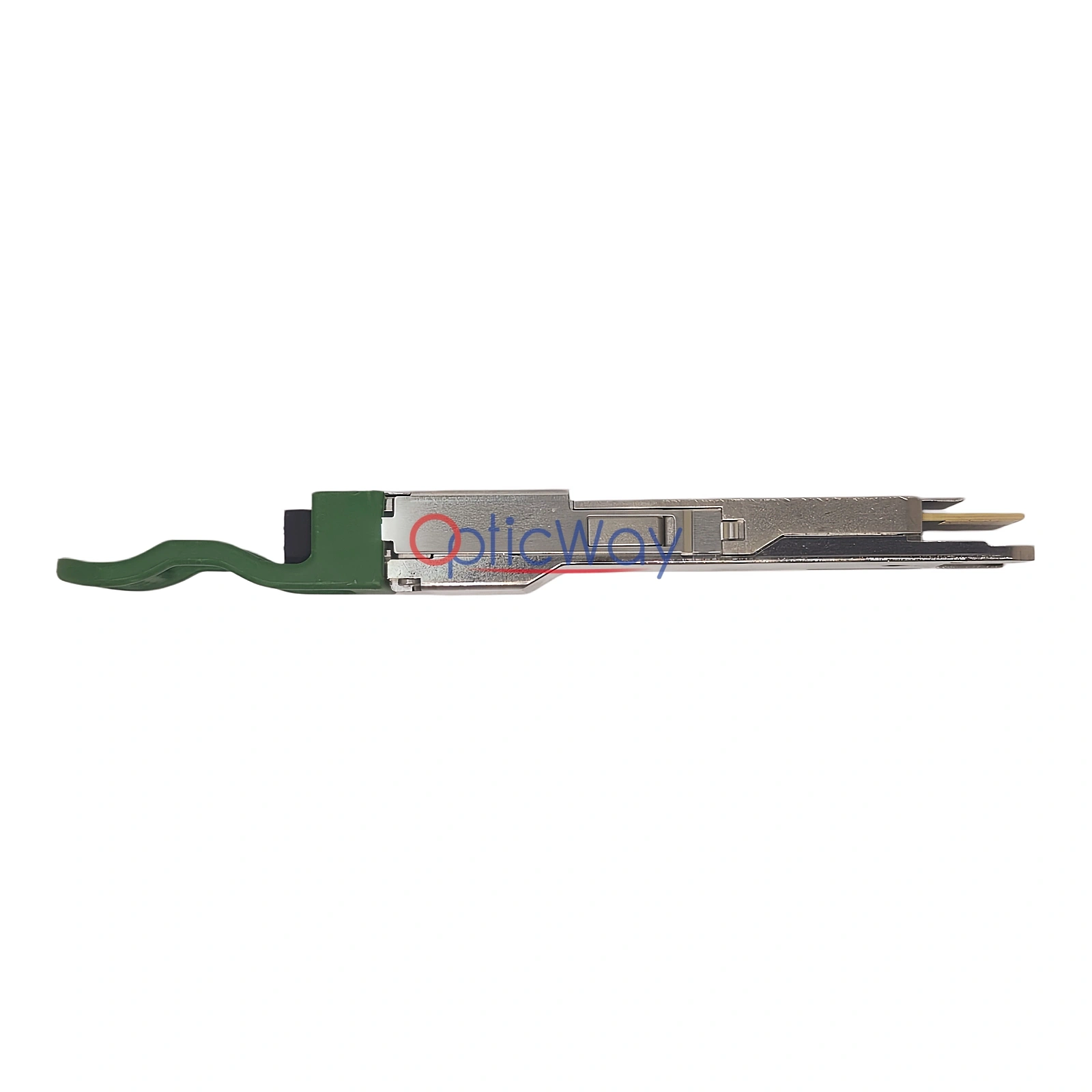

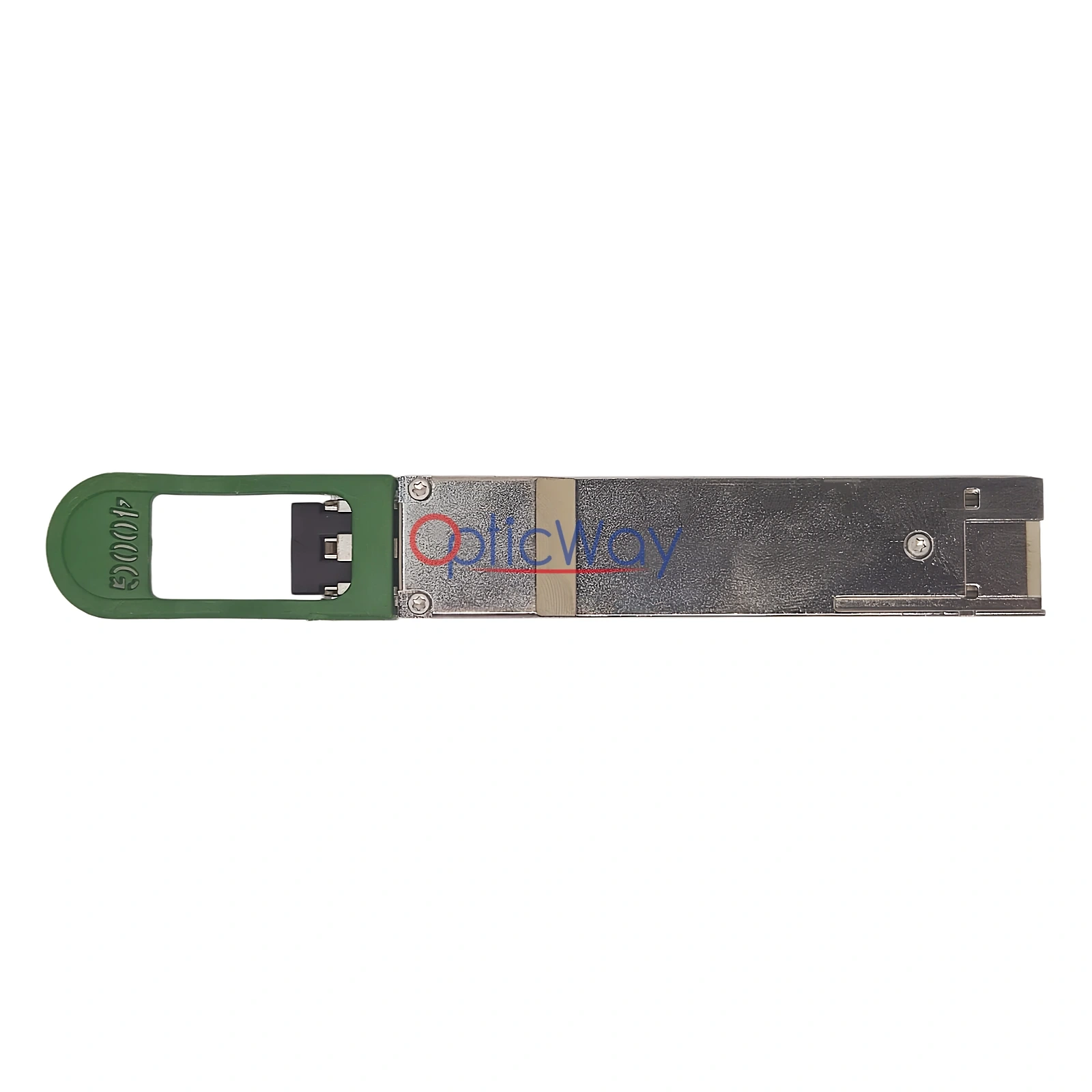

Oracle 8214866 QSFP-DD 400G-FR4 2km 1310nm FTCD4313E2PCL-OR SMF Transceiver
The Oracle 8214866 (Finisar FTCD4313E2PCL-OR) is a high-performance 400GBASE-FR4 QSFP-DD optical transceiver, factory-calibrated for Oracle enterprise and data center platforms. Using 4x100G PAM4 technology over single-mode fiber, it supports 400Gbps transmission up to 2 km using four WDM wavelengths in the 1310nm band. It features an LC duplex connector, full DDM/DOM monitoring, and complies with IEEE 802.3cu and QSFP-DD MSA standards.

Oracle Part Number

8214866

Band

Oracle

Finisar Number

FTCD4313E2PCL-OR

Form Factor

QSFP-DD

Wavelength

1310nm

Transmission Distance

2km

Connector

Duplex LC

Fiber Type

SMF

Data Rate

400Gbps

Standards

IEEE 802.3cu, QSFP-DD MSA, Class 1 Laser

Architecture

4-lane CWDM

Hot Swappable

Support

Origin

Malaysia

Operating Temperature

0°C ~ 70°C

Typical Applications

Oracle Data Center 400G Switch and Server Interfaces
High-Speed 400G Ethernet Backbone and Leaf-Spine Networks
Metro and Campus Network 400G Short-Reach Links
Enterprise and Cloud Provider 400G Infrastructure Deployments
Oracle SPARC and x86 Server Network Upgrades

Product Highlights

1. 400GBASE-FR4 Mid-Reach Transmission

This is a 400GBASE-FR4 QSFP-DD transceiver designed for high-density data center and core network applications.
It delivers 400Gbps line-rate transmission over standard G.652 single-mode fiber (SMF) using a 4-lane CWDM architecture, supporting a maximum reach of 2km.
The module operates in the 1310nm wavelength band, making it ideal for 400G links between top-of-rack (ToR) switches, leaf-spine fabrics, and metro data center interconnects.

2. Standard QSFP-DD Form Factor & Oracle Ecosystem Compatibility

It uses the industry-standard QSFP-DD (Double-Density Quad Small Form-factor Pluggable) package, optimized for high-density 400G switches and routers.
As an Oracle-branded module, it is validated for use with Oracle servers and switches that support 400G QSFP-DD interfaces.
The hot-pluggable design allows for easy installation, replacement, and capacity expansion without disrupting network operations.

3. Reliable Performance & Compliance Certification

Built-in Digital Optical Monitoring (DOM) allows real-time monitoring of key parameters including TX/RX optical power, module temperature, supply voltage, and laser bias current.

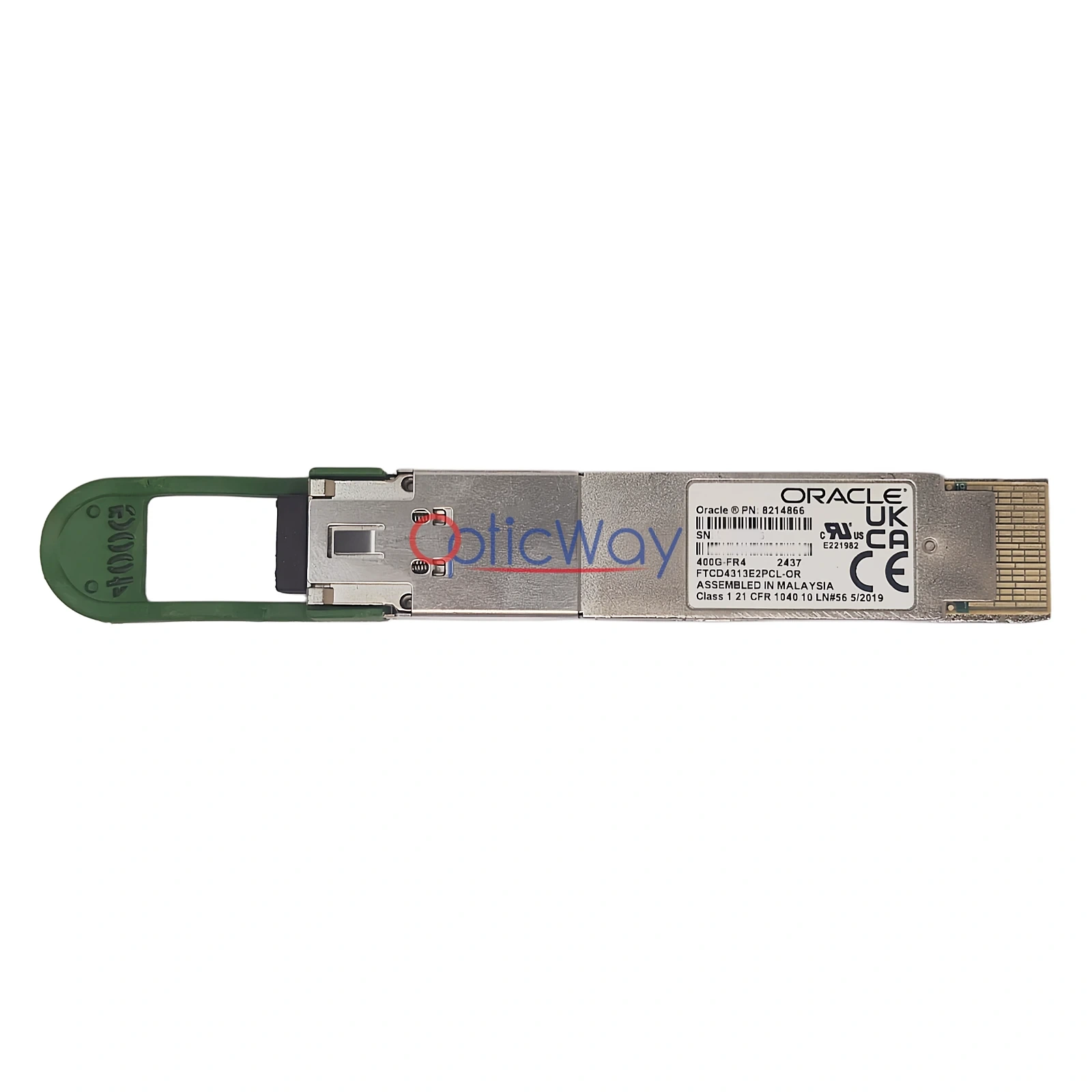

Certified as a Class 1 Laser product under 21CFR 1040.10 standards, and compliant with CE/UKCA regulations, meeting strict data center safety and performance requirements.
Assembled in Malaysia, it undergoes rigorous factory testing to ensure stable performance in the commercial temperature range.
