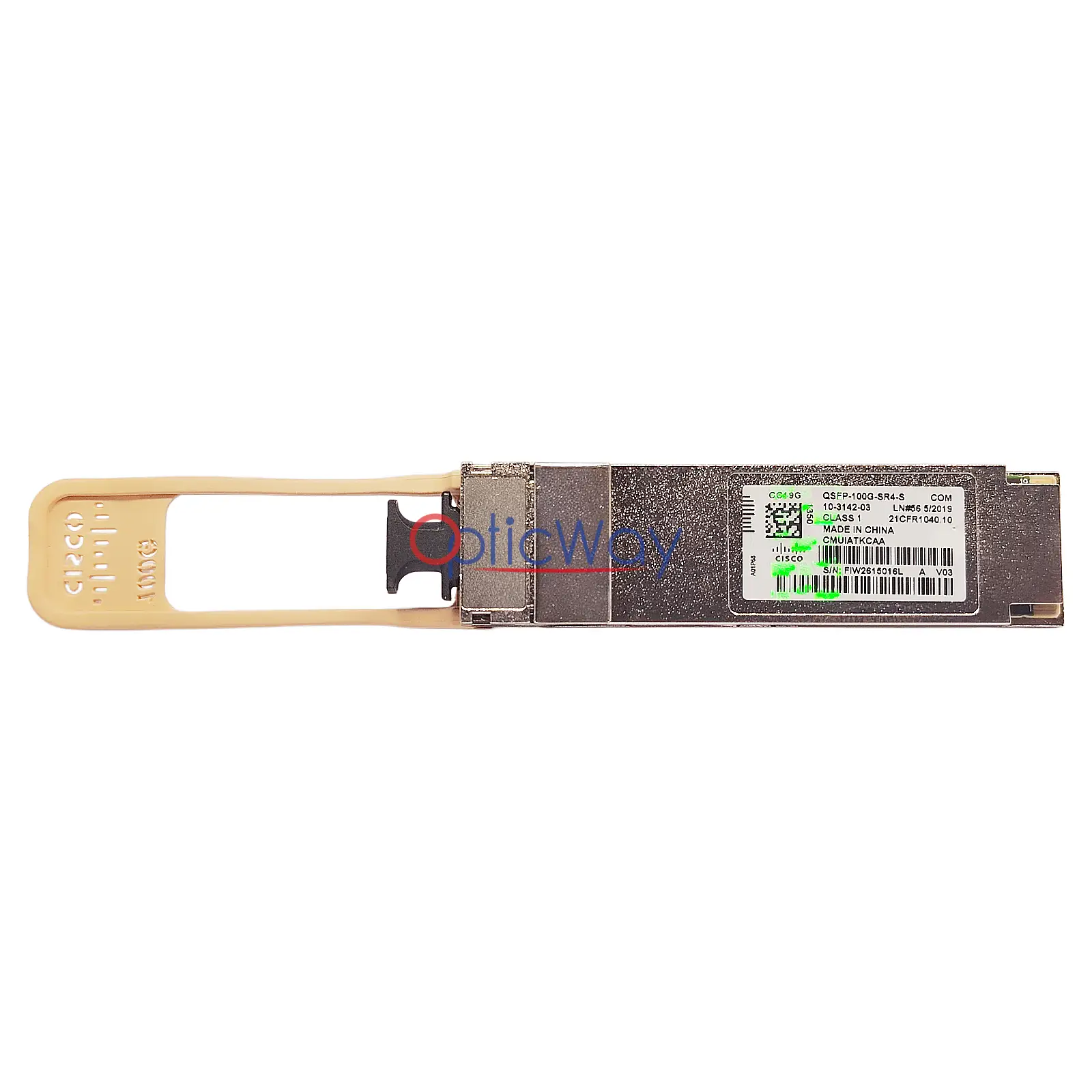

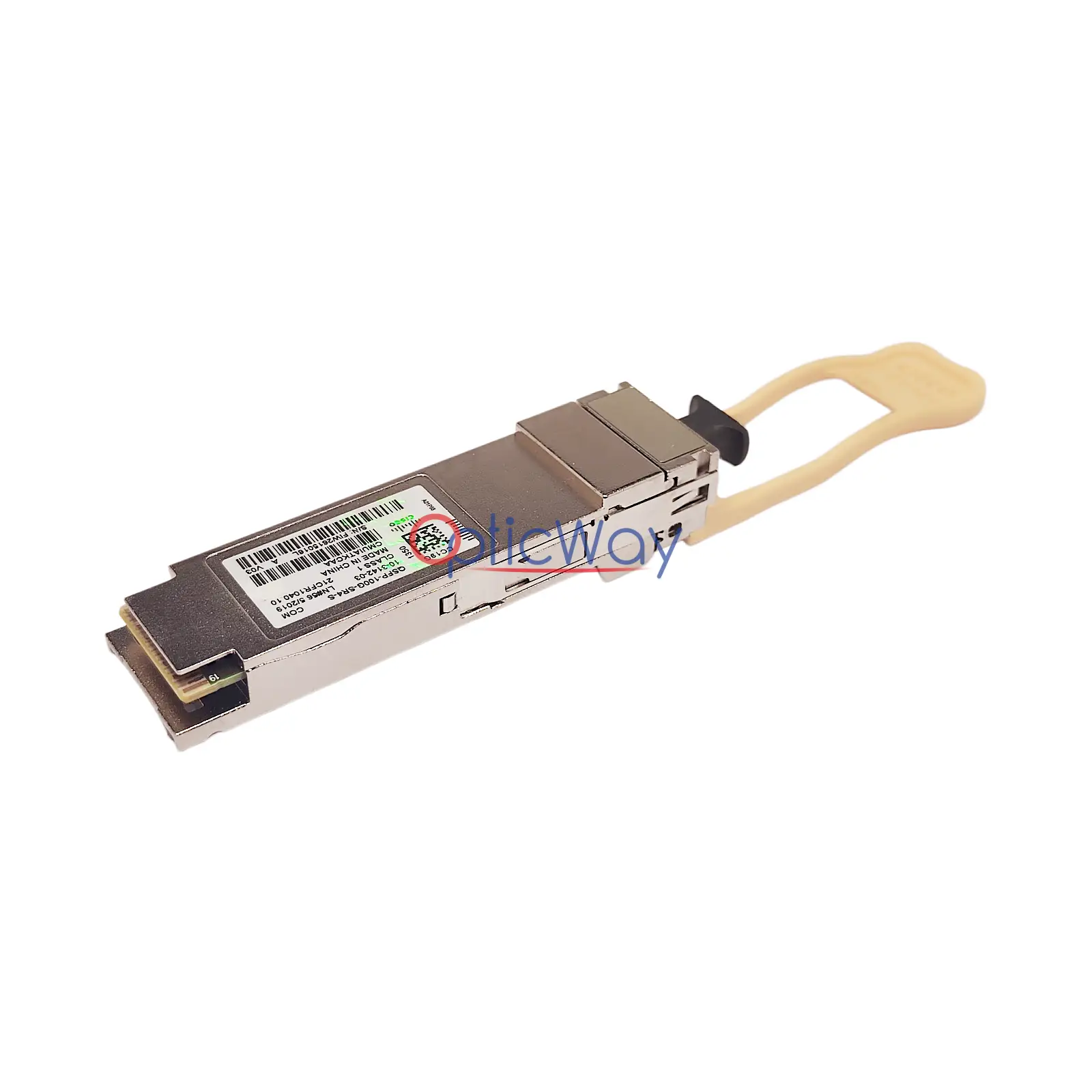

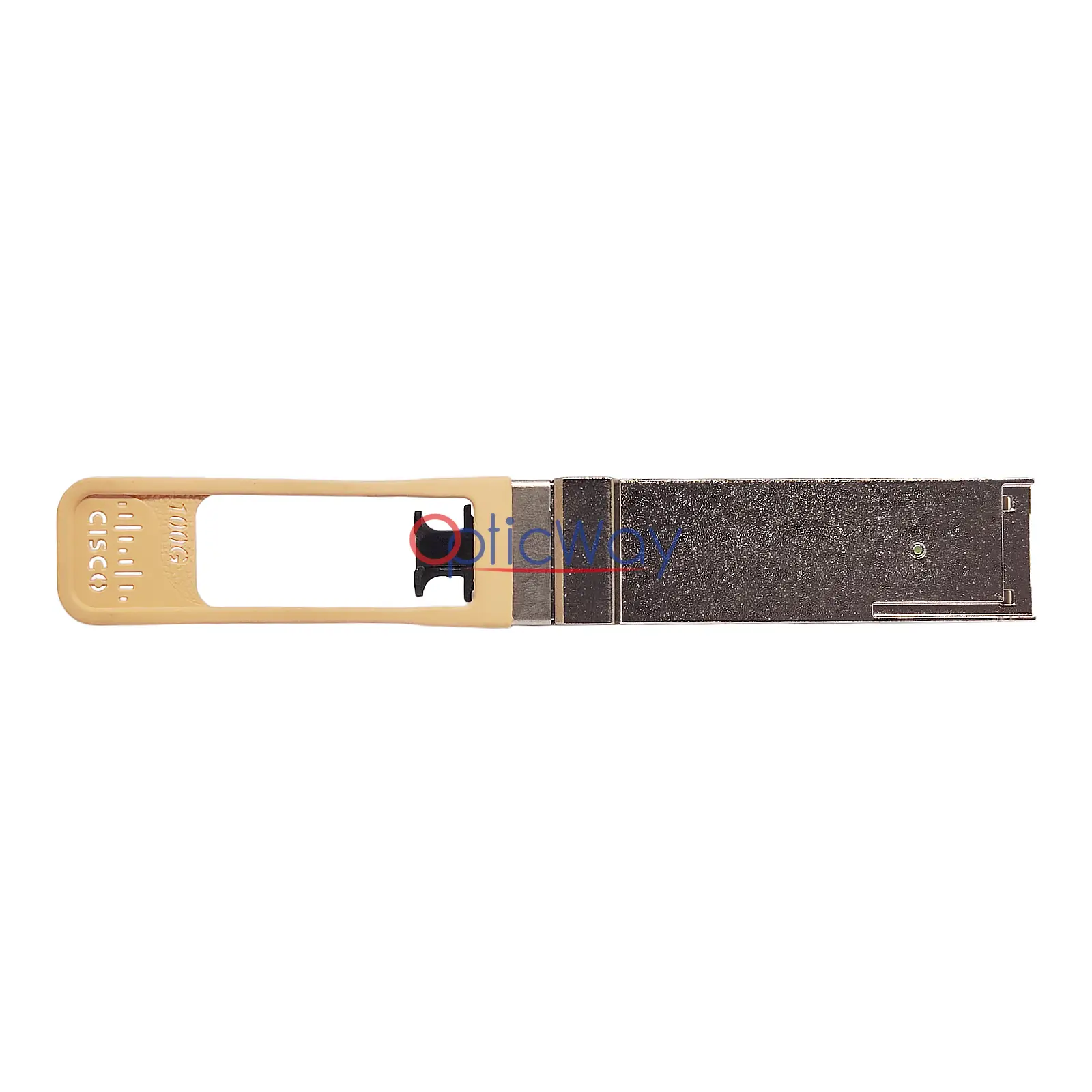

The Cisco QSFP-100G-SR4-S (P/N: 10-3142-03) is a high-performance 100GBASE-SR4 QSFP28 optical transceiver designed for high-density data center switches and routers. It adopts parallel multi-mode fiber (MMF) technology utilizing four independent 25Gbps lanes at an 850 nm wavelength, delivering an aggregated 100Gbps throughput via NRZ modulation. Equipped with an industry-standard MPO-12 connector, it supports reliable transmission distances of up to 70 m over OM3 MMF or 100 m over OM4/OM5 MMF. Factory-calibrated and verified by Cisco, this S-Class transceiver provides a cost-effective, low-power 100G short-reach solution ideal for data center spine-leaf fabrics and enterprise aggregation network.
Model / Product Code
QSFP-100G-SR4-S
Connector
MPO-12 / MTP-12
Max Cable Distance
100m over OM3 / 150m over OM4
DOM (Digital Monitoring)
Supported
Tx Power
-8.4 to +2.4 dBm
Rx Power
-10.3 to +2.4 dBm
Operating Temperature
0°C ~ 70°C
Typical Applications
Data Center Spine-Leaf Fabrics
- High-bandwidth, low-latency 100G short-reach connections between core spine switches and leaf switches.
High-Density Computing & Storage Interfaces - Ultra-high-speed network interfaces for enterprise server farms, Network-Attached Storage (NAS), and Storage Area Networks (SAN).
Enterprise Campus Network Aggregation - High-capacity 100G aggregation connections to bridge multiple distribution layers within enterprise building complexes.
Cisco QSFP28 Core Infrastructure Uplink - Maximizes performance on Cisco hardware by utilizing native 100G QSFP28 ports on Nexus and Catalyst switches or routers to eliminate network bottlenecks.
High-Speed Backbone Link Expansion - Cost-effective scalability for expanding existing short-range multi-mode network backbones without infrastructure overhaul.
Product Highlights
Data Center Spine-Leaf Fabrics - High-bandwidth, low-latency 100G short-reach connections between core spine switches and leaf switches.
High-Density Computing & Storage Interfaces
- Ultra-high-speed network interfaces for enterprise server farms, Network-Attached Storage (NAS), and Storage Area Networks (SAN).
Enterprise Campus Network Aggregation
- High-capacity 100G aggregation connections to bridge multiple distribution layers within enterprise building complexes.
Cisco QSFP28 Core Infrastructure Uplinks
- Maximizes performance on Cisco hardware by utilizing native 100G QSFP28 ports on Nexus and Catalyst switches or routers to eliminate network bottlenecks.
High-Speed Backbone Link Expansion
- Cost-effective scalability for expanding existing short-range multi-mode network backbones without infrastructure overhaul.
