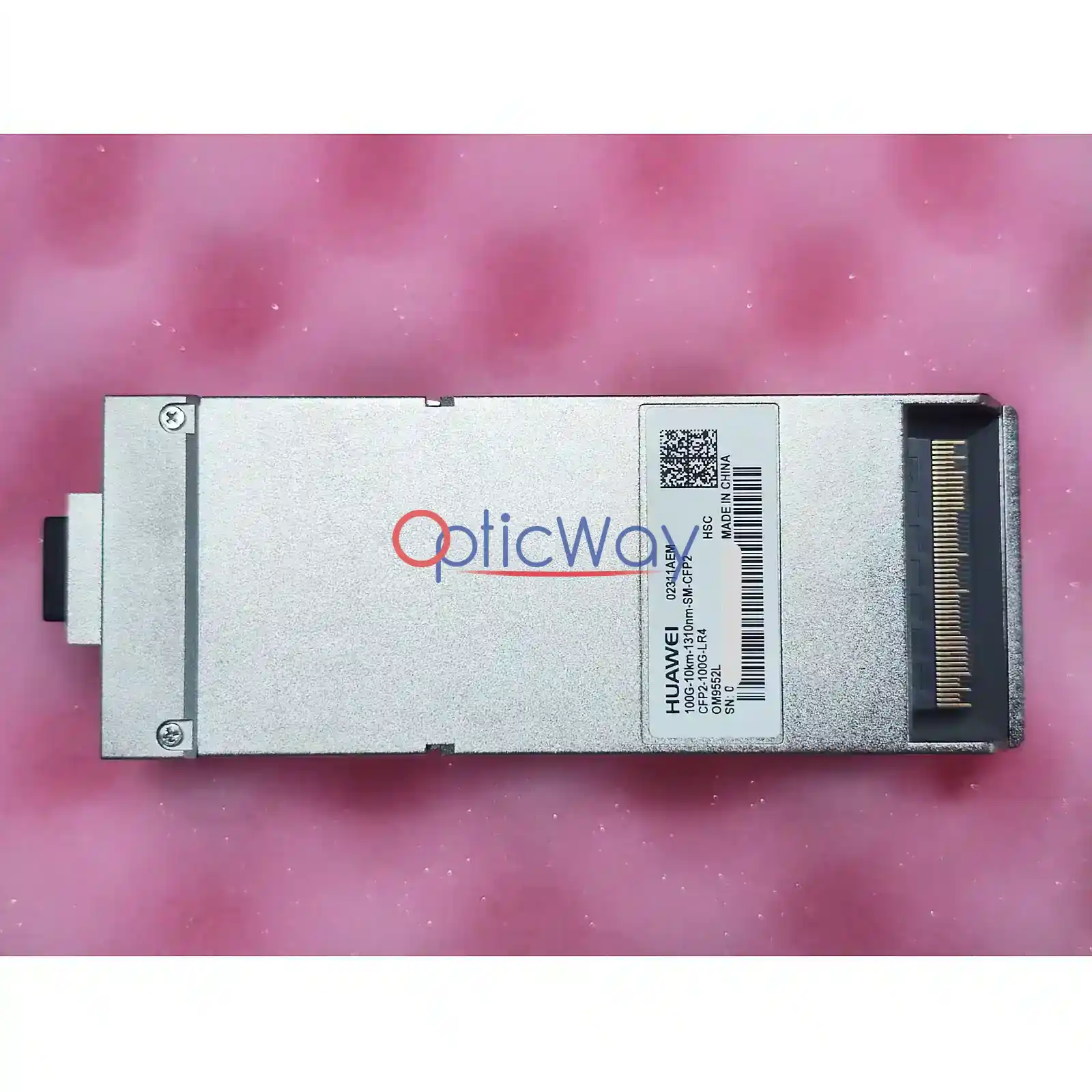

Original Huawei 02311AEM OM9552L CFP2-100G-LR4 1310nm 10km LC SMF Optical Transceiver The Huawei CFP2-100G-LR4 (Part Number: 02311AEM, Model: OM9552L) is a hot-pluggable CFP2 optical transceiver fully compliant with 100GBASE-LR4 and IEEE 802.3ba specifications. Optimized for high-capacity Data Center Interconnects (DCI), metro transport, and enterprise core backbone networks, it delivers a robust 103.125 Gbps (100GE) / 112 Gbps (OTU4) aggregate line rate with a wire-speed payload. Adopting 4-lane LAN-WDM technology in the 1310nm band (four discrete grid wavelengths running at 25.78 Gbps per channel), it ensures ultra-low latency and exceptionally stable transmission up to 10 km over standard G.652 Single-Mode Fiber (SMF). Equipped with a premium duplex LC receptacle, it integrates comprehensive DDM/DOM capabilities for real-time telemetry tracking of laser temperature, supply voltage, and Tx/Rx optical power.
Model Number
CFP2-100G-LR4 (OM9552L)
Fiber Type
Single-Mode Fiber (SMF)
Wavelength
LAN-WDM 4 (1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm)
Operating Temperature
0°C ~ 70°C
Typical Applications
【Data Center Interconnect (DCI)】
- Seamlessly connects high-capacity core switches and routing platforms across localized data centers, provisioning wire-speed 100G Ethernet link extensions up to 10 km over standard G.652 Single-Mode Fiber (SMF) without requiring host-managed FEC.
【Enterprise Core & Metro Backbone Networks】
- Deployed in core-layer infrastructure and edge routers to aggregate massive traffic streams, delivering ultra-high-bandwidth, low-latency trunk uplinks for enterprise network cores and metropolitan area networks (MAN).
【OTN / WDM Transport Infrastructure】
- Features full native support for the OTU4 rate (112 Gbps), making it an ideal choice for Packet Transport Networks (PTN) and providing line-side or client-side interfaces within Dense Wavelength Division Multiplexing (DWDM) transport systems.
【HPC (High-Performance Computing) Cluster Interconnects】
- Supplies dedicated, non-blocking 100G uplinks from mission-critical server and storage clusters to core switching fabrics, ensuring zero packet loss and minimal latency during massive parallel computing or cloud synchronization workloads.
Product Highlights
【100G Wire-Speed & Dual-Rate Versatility】
- Fully compliant with 100GBASE-LR4 standards. Supports dual aggregate line rates of 103.1 Gbps (100GE Ethernet) and 112 Gbps (OTU4 Optical Transport Network), seamlessly bridging enterprise cloud routing and carrier-grade OTN transport backbones.
【10km Long-Reach via Premium LAN-WDM】
- Utilizes 4 channels in the 1310nm LAN-WDM wavelength grid over Single-Mode Fiber (SMF). Delivers flawless, low-latency data transmission up to 10 km without requiring mandatory host-side FEC, securing robust data center interconnects (DCI).
【CFP2 High-Density & Thermal Efficiency】
- Engineered with a standard hot-pluggable CFP2 form factor—cutting the footprint of first-generation CFP modules exactly in half. This high-density architecture maximizes faceplate port utilization while significantly reducing per-port power consumption and cooling overhead.
【Intelligent Real-Time Telemetry (DDM/DOM)】
- Features an integrated Digital Diagnostics Monitoring (DDM/DOM) interface. Provides network administrators with instantaneous telemetry on critical operational metrics, including module temperature, supply voltage, laser bias current, and precise Rx/Tx optical power for proactive troubleshooting.
【Genuine Huawei Proven Compatibility】
- 100% genuine Huawei original hardware (P/N: 02311AEM, Model: OM9552L). Pre-coded with official firmware to ensure out-of-the-box, native synergy with Huawei CloudEngine 12800/6800 series data center switches and NetEngine NE40E/NE20E core routers without triggering any unrecognized-module system alarms.
