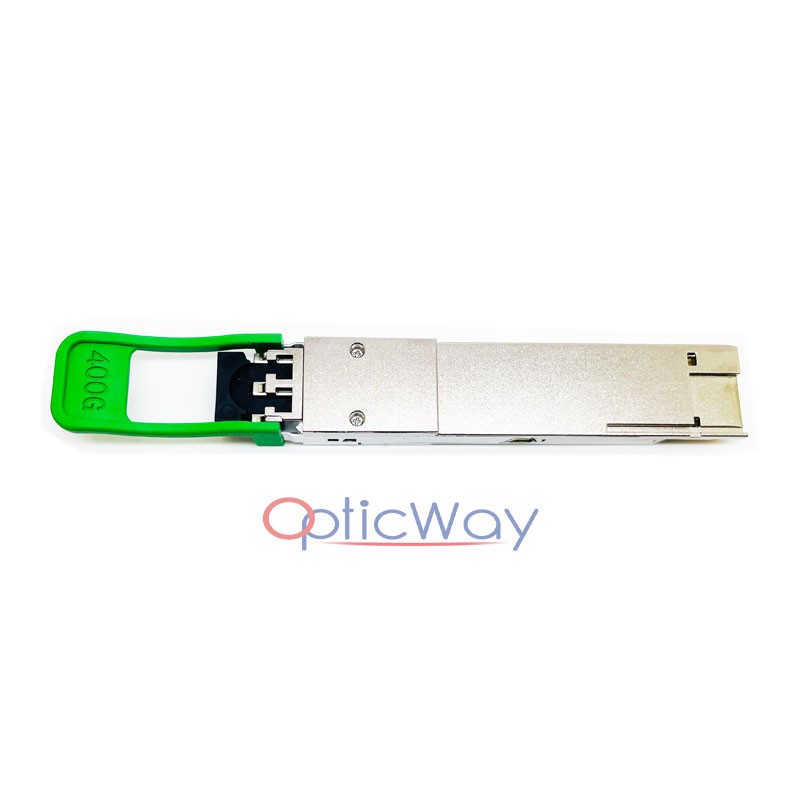

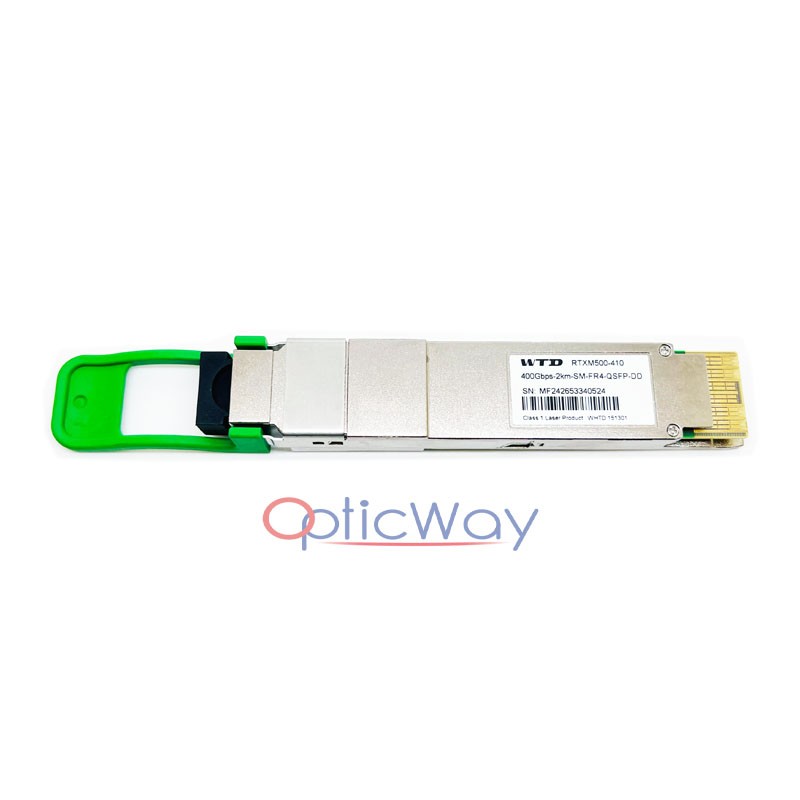

WTD 400G QSFP56-DD FR4 2km RTXM500-410

RTXM500-410 400G QSFP-DD FR4 transceiver modules are designed for use in 400 Gigabit Ethernet links on up to 2km of single mode fiber. They are compliant with the QSFP-DD MSA, IEEE 802.3cu and 100G Lambda MSA.The optical transceiver is RoHS compliant.

Key Features

Hot-pluggable QSFP-DD Type 2 form factor

Supports 425Gb/s aggregate bit rate

Power dissipation <12W

Commercial case temperature range of 0°C to 70°C

Single 3.3V power supply

Maximum link length of 2km on Single Mode Fiber (SMF)

Aligned with IEEE 802.3cu

4x100G PAM4 EML-based CWDM transmitter

8x50G PAM4 retimed 400GAUI-8 electrical interface

Duplex LC receptacles

I2C management interface

RoHS compliant

Specifications

Data Rate:425Gb/s

Distance:2km

Case Temperature:0~70℃

Voltage Supply:3.3V

Transmitter:EML

Receiver:PIN

Wavelength:CWDM

Connector:Duplex LC

Power consumption（Max）:12W
